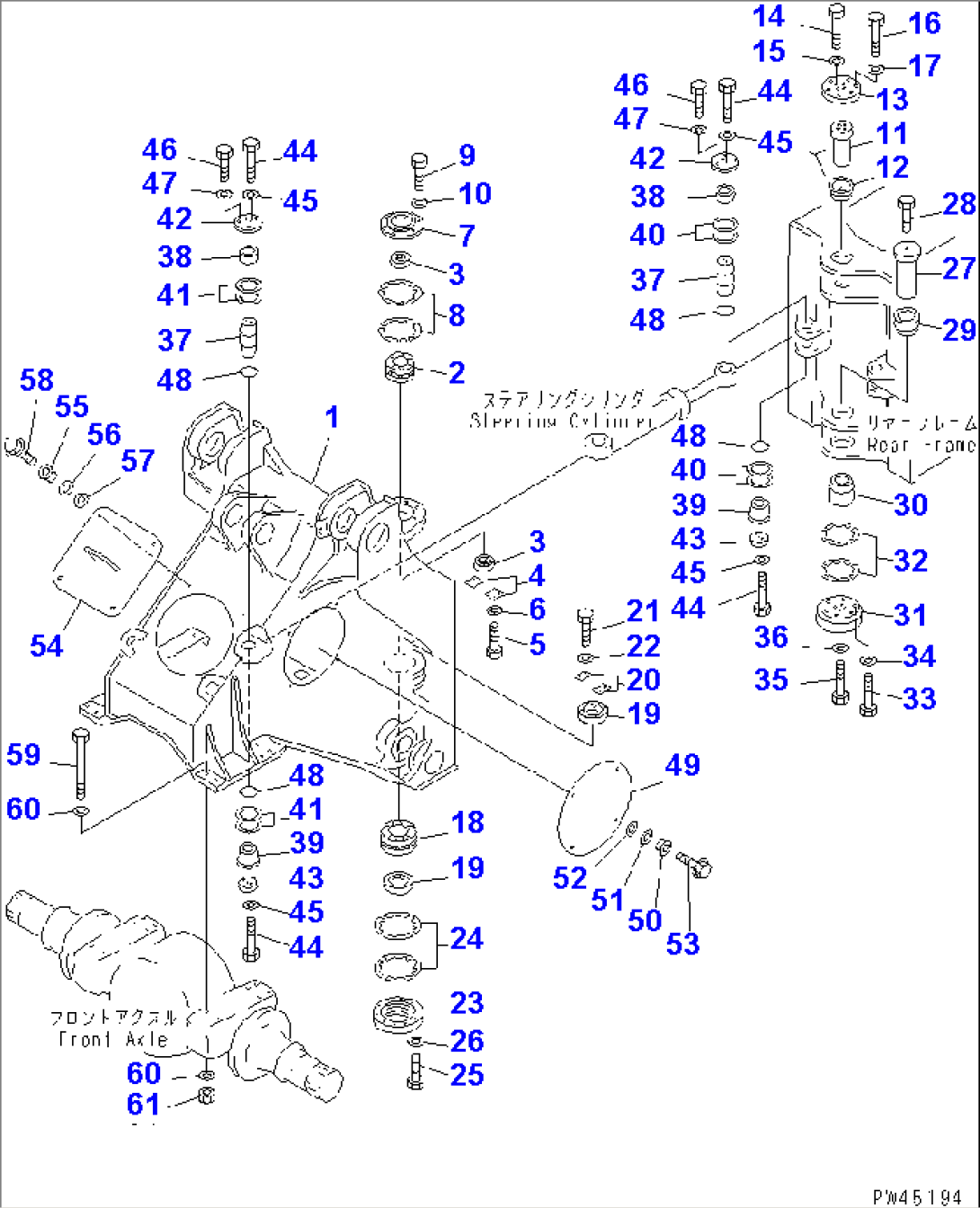

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-46-11101 | FRAME,FRONT | 10001- | |
| 1 | 428-S33-1840 | FRAME,FRONT (FOR JOY STICK STR.) | 10001- | |
| 2 | 428-46-11220 | BEARING | 10001- | |
| 3 | 427-46-11140 | SEAL,DUST | 10001- | |
| 4 | 427-46-11150 | PLATE | 10001- | |
| 5 | 01010-61020 | BOLT | 10001- | |
| 6 | 01643-31032 | WASHER | 10001- | |
| 7 | 428-46-11210 | RETAINER | 10001- | |
| 8 | 428-46-11240 | SHIM, 0.1MM | 10001- | |
| 8 | 428-46-11250 | SHIM, 0.5MM | 10001- | |
| 9 | 01010-62070 | BOLT | 10001- | |
| 10 | 01643-32060 | WASHER | 10001- | |
| 11 | 428-46-11230 | SHAFT | 10001- | |
| 12 | 427-46-11440 | BUSHING | 10001- | |
| 13 | 427-46-11190 | RETAINER | 10001- | |
| 14 | 01010-62065 | BOLT | 10001- | |
| 15 | 01643-32060 | WASHER | 10001- | |
| 16 | 01010-62075 | BOLT | 10001- | |
| 17 | 01643-32060 | WASHER | 10001- | |
| 18 | 428-46-11320 | BEARING | 10001- | |
| 19 | 427-09-11120 | SEAL,DUST | 10001- | |
| 20 | 426-46-11530 | PLATE | 10001- | |
| 21 | 01010-80616 | BOLT | 10001- | |
| 22 | 01643-30623 | WASHER | 10001- | |
| 23 | 428-46-11310 | RETAINER | 10001- | |
| 24 | 428-46-11390 | SHIM, 0.1MM | 10001- | |
| 24 | 428-46-11410 | SHIM, 0.5MM | 10001- | |
| 25 | 01010-62075 | BOLT | 10001- | |
| 26 | 01643-32060 | WASHER | 10001- | |
| 27 | 428-46-11331 | SHAFT | 10001- | |
| 28 | 01010-62450 | BOLT | 10001- | |
| 29 | 428-46-11350 | BUSHING | 10001- | |
| 30 | 428-46-11360 | BUSHING | 10001- | |
| 31 | 428-46-11340 | CAP | 10001- | |
| 32 | 428-46-11370 | SHIM, 0.1MM | 10001- | |
| 32 | 428-46-11380 | SHIM, 0.5MM | 10001- | |
| 33 | 01010-62065 | BOLT | 10001- | |
| 34 | 01643-32060 | WASHER | 10001- | |
| 35 | 01011-62455 | BOLT | 10001- | |
| 36 | 01643-32460 | WASHER | 10001- | |
| 37 | 428-46-12131 | SHAFT | 10001- | |
| 38 | 428-46-12160 | BUSHING | 10001- | |
| 39 | 428-46-12170 | BUSHING | 10001- | |
| 40 | 428-46-12190 | SHIM, 1.0MM | 10001- | |
| 41 | 428-46-12180 | SPACER | 10001- | |
| 42 | 428-46-12140 | PLATE | 10001- | |
| 43 | 428-46-12150 | PLATE | 10001- | |
| 44 | 01010-81480 | BOLT | 10001- | |
| 45 | 01643-31445 | WASHER | 10001- | |
| 46 | 01010-81455 | BOLT | 10001- | |
| 47 | 01643-31445 | WASHER | 10001- | |
| 48 | 07000-12100 | O-RING | 10001- | |
| 49 | 428-46-14110 | PLATE | 10001- | |
| 50 | 415-46-11370 | SPACER | 10001- | |
| 51 | 415-46-11380 | CUSHION | 10001- | |
| 52 | 01640-22440 | WASHER | 10001- | |
| 53 | 01435-01250 | BOLT | 10001- | |
| 54 | 427-46-11521 | COVER | 10001- | |
| 55 | 427-54-11860 | SPACER | 10001- | |
| 56 | 415-46-11380 | CUSHION | 10001- | |
| 57 | 01640-22440 | WASHER | 10001- | |
| 58 | 01435-01250 | BOLT | 10001- | |
| 59 | 427-46-12130 | BOLT | 10001- | |
| 60 | 01643-33990 | WASHER | 10001- | |
| 61 | 01580-03931 | NUT | 10001- |
