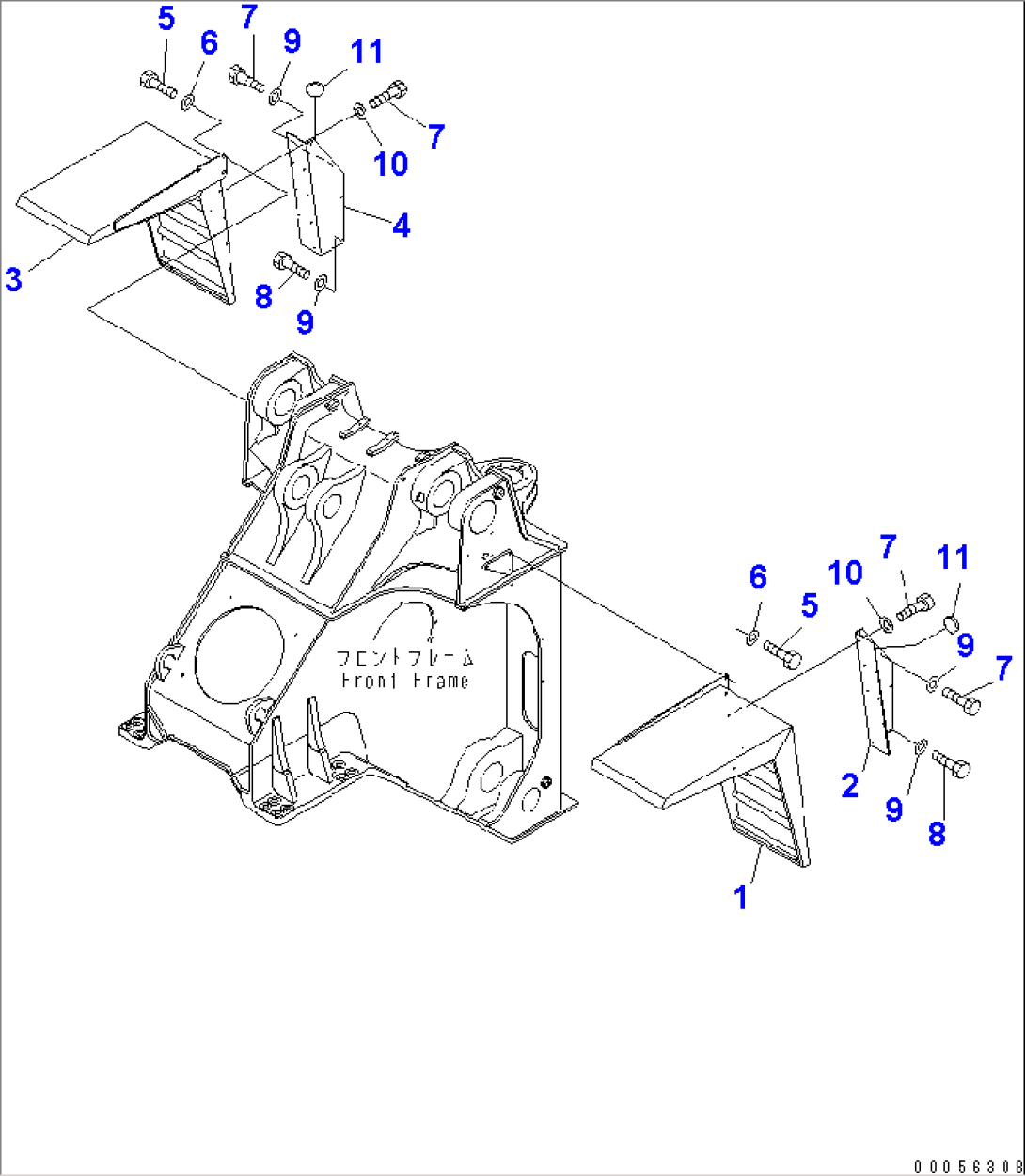

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-54-26810 | FENDER,L.H. | 70001- | |
| 2 | 427-54-13380 | BRACKET,L.H. | 70001- | |
| 3 | 427-54-26820 | FENDER,R.H. | 70001- | |
| 4 | 427-54-13410 | BRACKET,R.H. | 70001- | |
| 5 | 01010-81635 | BOLT | 70001- | |
| 6 | 01643-31645 | WASHER | 70001- | |
| 7 | 01010-81230 | BOLT | 70001- | |
| 8 | 01010-81245 | BOLT | 70001- | |
| 9 | 01643-31232 | WASHER | 70001- | |
| 10 | 124-54-26540 | WASHER | 70001- | |
| 11 | 09415-05016 | CAP | 70001- |
