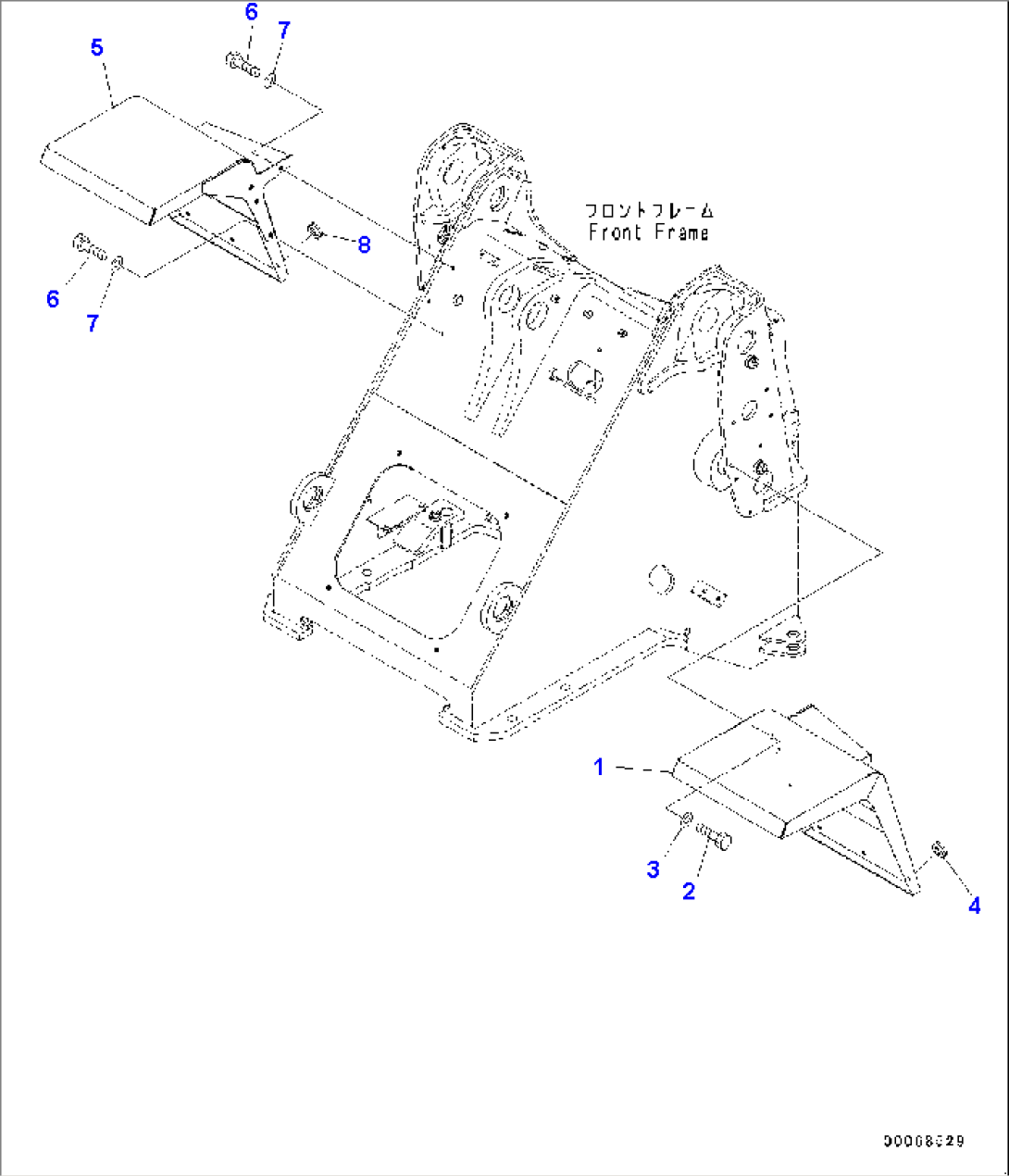

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-54-44222 | Fender, L.H. | 70387- | |
| 1 | 419-54-44221 | Fender, L.H. | 70351-70386 | |
| 1 | 419-54-44220 | Fender, L.H. | 70291-70350 | |
| 2 | 01010-81225 | Bolt | 70291- | |
| 3 | 01643-31232 | Washer | 70291- | |
| 4 | 09415-01008 | Cap | 70291- | |
| 5 | 419-54-44232 | Fender, R.H. | 70387- | |
| 5 | 419-54-44231 | Fender, R.H. | 70351-70386 | |
| 5 | 419-54-44230 | Fender, R.H. | 70291-70350 | |
| 6 | 01010-81225 | Bolt | 70291- | |
| 7 | 01643-31232 | Washer | 70291- | |
| 8 | 09415-01008 | Cap | 70291- |
