| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-89-22120 | BRACKET,L.H. | 2001- | |
| 2 | 56B-89-22130 | BRACKET,R.H. | 2001- | |
| 3 | 01010-81640 | BOLT | 2001- | |
| 4 | 01643-31645 | WASHER | 2001- | |
| 5 | 56B-89-22190 | GUARD | 2001- | |
| 6 | 01010-81650 | BOLT | 2001- | |
| 7 | 01643-31645 | WASHER | 2001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 2 s/n 2001 2632 (ecot3)
- Miscellaneous
- Front drive shaft (guard)(#2001 )
Поиск по каталогу

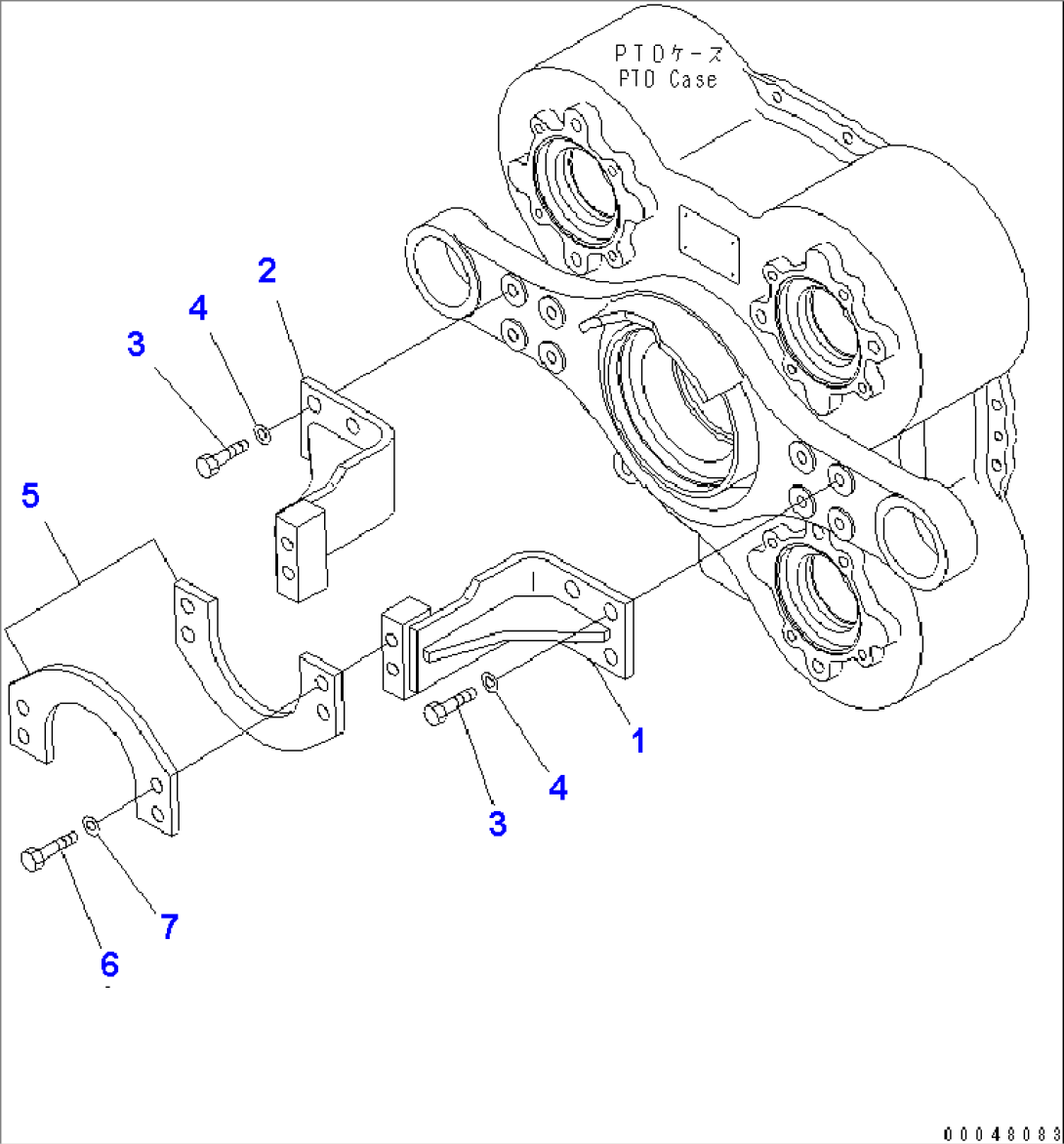

FRONT DRIVE SHAFT (GUARD)(#2001-)
