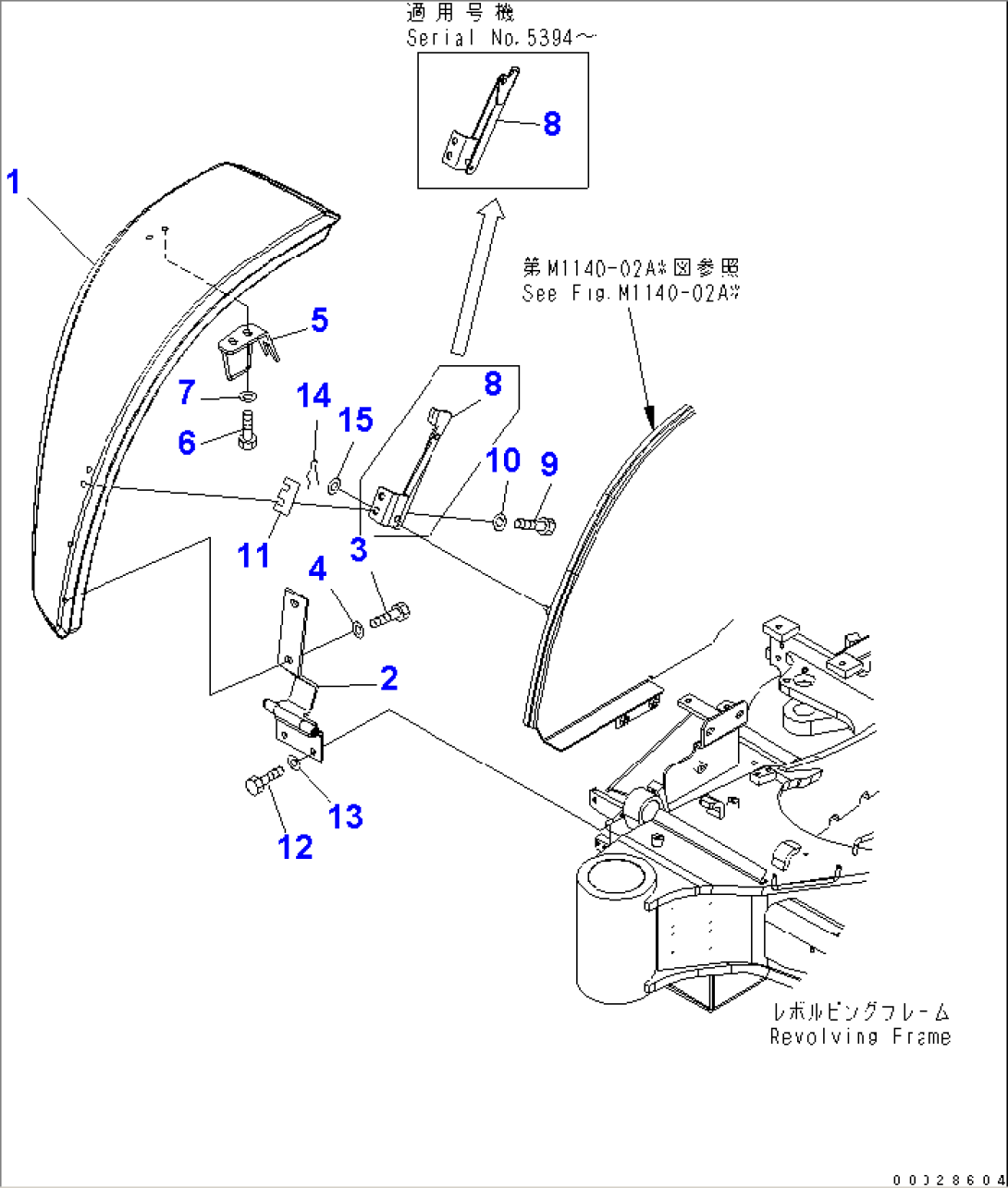

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22L-54-21611 | COVER | 5001- | |
| 2 | 22L-54-21623 | HINGE | 5001- | |
| 3 | 01010-81020 | BOLT | 5001- | |
| 4 | 01643-31032 | WASHER | 5001- | |
| 5 | 22L-54-21633 | BRACKET | 5001- | |
| 6 | 01010-81020 | BOLT | 5001- | |
| 7 | 01643-31032 | WASHER | 5001- | |
| 8 | 22L-54-21640 | HINGE | 5394- | |
| 8 | \0\21U-54-31651 | HINGE ASS'Y | 5001-5393 | |
| 9 | 01010-81020 | BOLT | 5001- | |
| 10 | 01643-31032 | WASHER | 5001- | |
| 11 | FF7830-54330 | SHIM | 5344- | |
| 12 | 01010-81025 | BOLT | 5001- | |
| 13 | 01643-31032 | WASHER | 5001- | |
| 14 | 04052-20833 | PIN,SNAP | 5001- | |
| 15 | 01643-30823 | WASHER | 5001- |
