| Item | Part No. | Part Name | Qty | Serial No. |

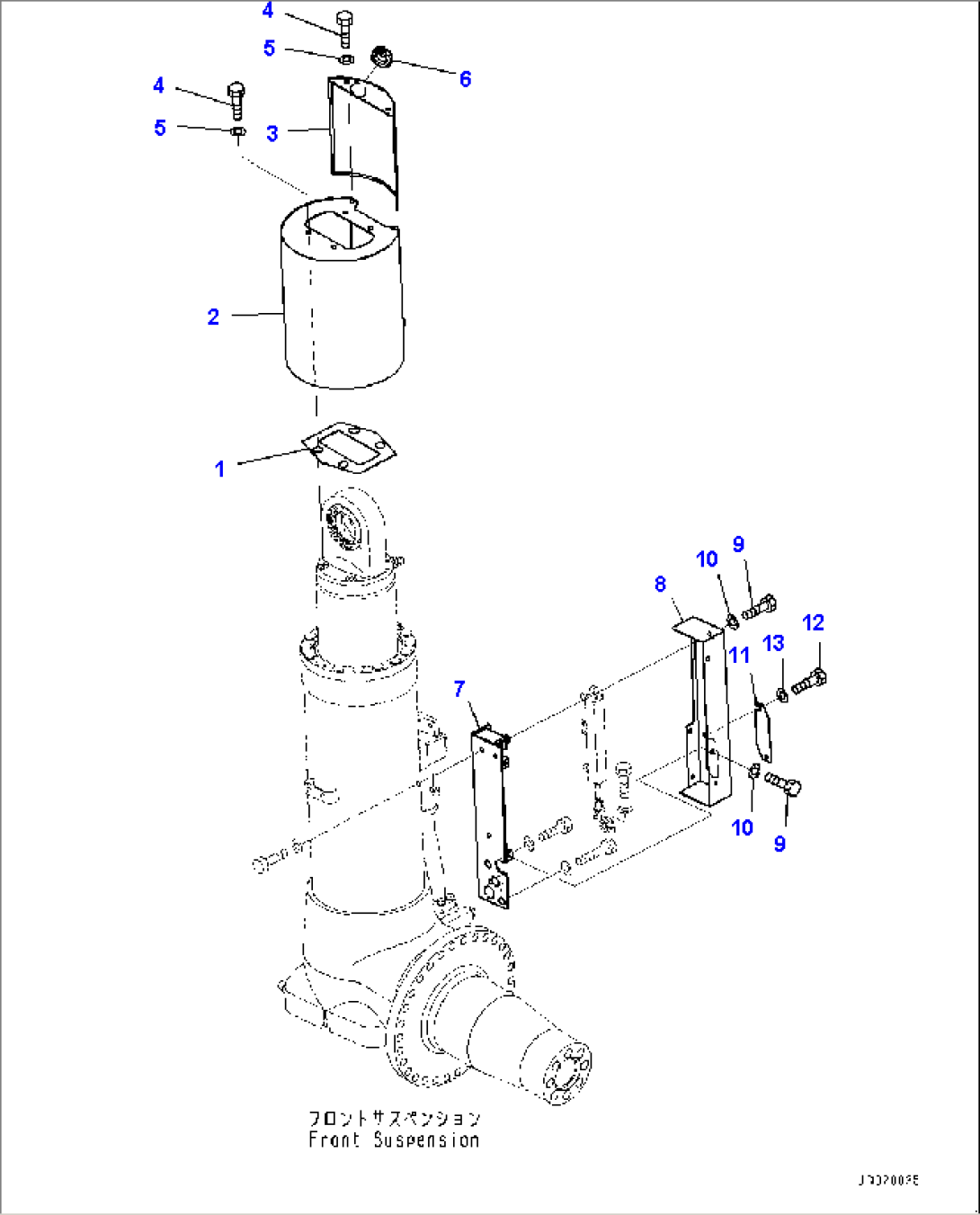

| 561-50-83003 | Suspension Assembly | 8865- | ||
| 1 | 561-50-81190 | Seat | 8865- | |
| 2 | 561-50-83171 | Cover | 8865- | |
| 3 | 561-50-83181 | Cover | 8865- | |
| 4 | 01010-81020 | Bolt | 8865- | |
| 5 | 01643-31032 | Washer | 8865- | |
| 6 | 561-50-63191 | Grommet | 8865- | |
| 7 | 561-50-83370 | Bracket | 8865- | |
| 8 | 561-50-83341 | Cover | 8865- | |
| 9 | 01010-81020 | Bolt | 8865- | |
| 10 | 01643-31032 | Washer | 8865- | |
| 11 | 561-50-63320 | Plate | 8865- | |
| 12 | 01010-81016 | Bolt | 8865- | |
| 13 | 01643-31032 | Washer | 8865- |
