| Item | Part No. | Part Name | Qty | Serial No. |
| (428-22-20100) | FRONT AXLE ASS'Y | 50046- | ||
| (428-22-20000) | FRONT AXLE ASS'Y | 50001-50045 | ||

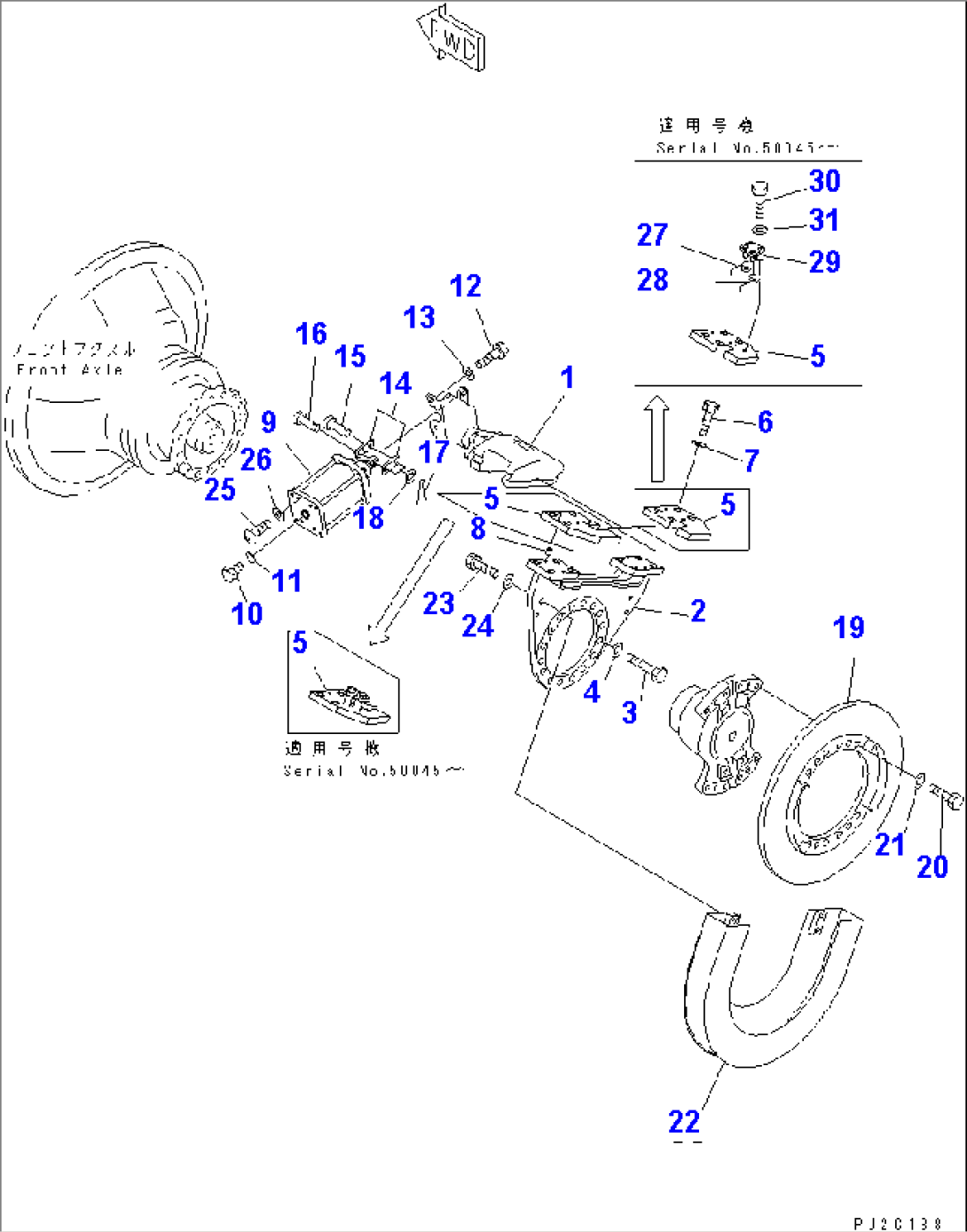

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-08A0. | ||||
| 428-32-25002 | PARKING BRAKE ASS'Y | 50046- | ||
| 428-32-25001 | PARKING BRAKE ASS'Y | 50001-50045 | ||
| 1 | (426-32-25201) | BRAKE PAD ASS'Y | 50001- | |
| 2 | 428-32-25311 | BRACKET | 50001- | |
| 3 | 01010-62055 | BOLT | 50001- | |
| 4 | 01643-32060 | WASHER | 50001- | |
| 5 | 426-32-25371 | PLATE | 50045- | |
| 426-32-25321 | PLATE | 50001-50044 | ||
| 6 | 01010-62455 | BOLT | 50001- | |
| 7 | 01643-32460 | WASHER | 50001- | |
| 8 | 175-21-12180 | PIN | 50001- | |
| 9 | 426-32-25502 | SPRING CYLINDER | 50001- | |
| 10 | 07040-12012 | PLUG | 50001- | |
| 11 | 07002-12034 | O-RING | 50001- | |
| 12 | 01010-61635 | BOLT | 51002- | |
| \0\01010-31635 | BOLT | 50001-51001 | ||
| 13 | 01643-31645 | WASHER | 50001- | |
| 14 | 426-32-25331 | PLATE | 50001- | |
| 15 | 425-32-15340 | PIN | 50001- | |
| 16 | 04205-11245 | PIN | 50001- | |
| 17 | 04050-13022 | PIN,COTTER | 50001- | |
| 18 | 01640-21323 | WASHER | 50001- | |
| 19 | 428-32-25411 | DISC | 50001- | |
| 20 | 01010-62055 | BOLT | 50001- | |
| 21 | 01643-32060 | WASHER | 50001- | |
| 22 | 428-32-25421 | COVER | 50001- | |
| 23 | 01010-81245 | BOLT | 50001- | |
| 24 | 01643-31232 | WASHER | 50001- | |
| 25 | 01245-01016 | SCREW | 50001- | |
| 26 | 01643-31032 | WASHER | 50001- | |
| 27 | 426-32-25342 | SPRING | 50045- | |
| 28 | 426-32-25352 | SPRING | 50045- | |
| 29 | 426-32-25362 | BRACKET | 50045- | |
| 30 | 01010-81260 | BOLT | 50045- | |
| 31 | 01643-31232 | WASHER | 50045- |
