| Item | Part No. | Part Name | Qty | Serial No. |
| (419-22-20012) | AXLE ASS'Y,FRONT | 55069- | ||

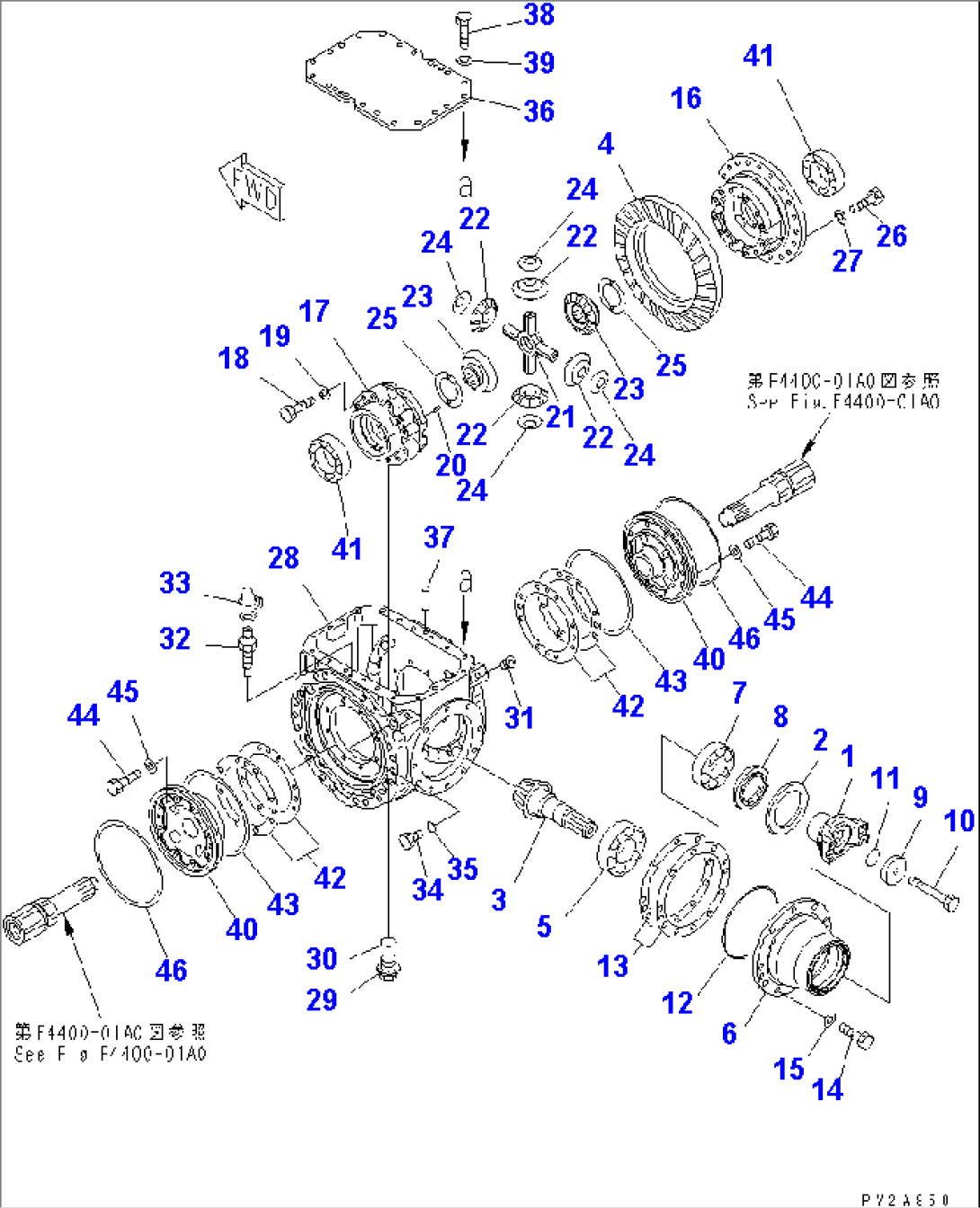

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-04A0. | ||||
| 1 | 419-22-21230 | COUPLING | 53001- | |
| 2 | 418-22-21310 | PROTECTOR | 53001- | |
| 419-22-21800 | PINION ASS'Y,GEAR | 55069- | ||
| 3 | \6\ | PINION | 53001- | |
| 4 | \6\ | PINION,BEVEL | 55069- | |
| 5 | 419-22-11810 | BEARING | 53001- | |
| 6 | 419-22-21631 | CAGE | 53001- | |
| 7 | 419-22-11820 | BEARING | 53001- | |
| 8 | 418-22-21330 | SEAL,OIL | 53001- | |
| 9 | 423-22-11240 | HOLDER | 53001- | |
| 10 | 01011-61615 | BOLT | 53001- | |
| 11 | 07000-13042 | O-RING | 53001- | |
| 12 | 07000-15180 | O-RING | 53001- | |
| 13 | 419-22-11361 | SHIM¤ 0.05MM | 53001- | |
| 419-22-11371 | SHIM¤ 0.2MM | 53001- | ||
| 419-22-11381 | SHIM¤ 0.3MM | 53001- | ||
| 419-22-11391 | SHIM¤ 0.8MM | 53001- | ||
| 14 | 01010-31440 | BOLT | .- | |
| 15 | 01643-31445 | WASHER | 53001- | |
| 419-22-21500 | CASE ASS'Y | 55069- | ||
| 16 | \6\ | CASE | 55069- | |
| 17 | \6\ | CASE | 55069- | |
| 18 | 01010-61295 | BOLT | 55069- | |
| 19 | 01643-31232 | WASHER | 55069- | |
| 20 | 175-21-12180 | PIN | 55069- | |
| 21 | 419-22-11412 | SHAFT | 55069- | |
| 22 | 419-22-11421 | PINION,SIDE | 53001- | |
| 23 | 419-22-21430 | GEAR | 55082- | |
| \0\419-22-11432 | GEAR | 53001-55081 | ||
| 24 | 419-22-11651 | WASHER | 55069- | |
| 25 | 419-22-11631 | WASHER | 55069- | |
| 26 | 01010-61240 | BOLT | 55069- | |
| 27 | 01643-31232 | WASHER | 55069- | |
| 28 | \6\ | HOUSING | 53001- | |
| 29 | 07044-13620 | PLUG,DRAIN | 53001- | |
| 30 | 07002-13634 | O-RING | 53001- | |
| 31 | 07043-70211 | PLUG | 53001- | |
| 32 | 419-33-11460 | BLEEDER | 53001- | |
| 33 | 566-32-11620 | CAP | 53001- | |
| 34 | 07040-12012 | PLUG,(FOR SHIPPING) | 53001- | |
| 35 | 07002-12034 | O-RING,(FOR SHIPPING) | 53001- | |
| 36 | 419-22-23620 | COVER | 53001- | |
| 37 | 04020-01228 | PIN,DOWEL | 53001- | |
| 38 | 01010-61240 | BOLT | 53001- | |
| 39 | 01643-31232 | WASHER | 53001- | |
| 40 | 419-22-21860 | CARRIER | 55069- | |
| 41 | 419-22-11850 | BEARING | 55069- | |
| 42 | 419-22-21760 | SHIM¤ 0.05MM | 53001- | |
| 419-22-21770 | SHIM¤ 0.2MM | 53001- | ||
| 419-22-21780 | SHIM¤ 0.3MM | 53001- | ||
| 419-22-21790 | SHIM¤ 0.8MM | 53001- | ||
| 43 | 418-33-21430 | RING | 53001- | |
| 44 | 01010-31240 | BOLT | .- | |
| 45 | 01643-31232 | WASHER | 53001- | |
| 46 | 419-33-21710 | SEAL | 53001- |
