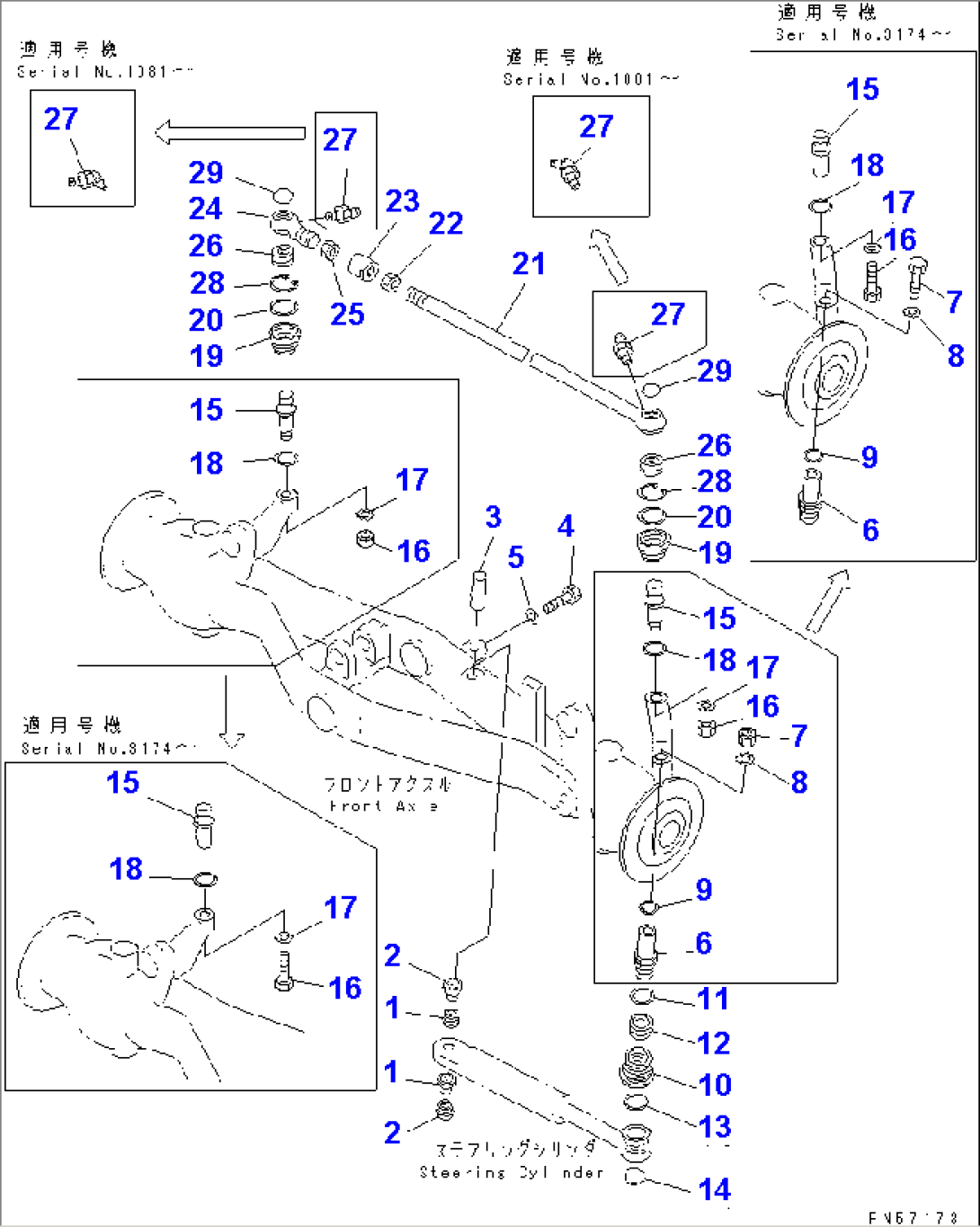

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-27-11750 | BOOT | 1001- | |
| 2 | 23D-27-11480 | SPACER | 1001- | |
| 3 | 23D-27-11540 | PIN | 1001- | |
| 4 | 23D-27-11680 | BOLT | 1001- | |
| 5 | 01643-31032 | WASHER | 1001- | |
| 6 | 23D-27-11563 | STUD,BALL | 3174- | |
| 23D-27-11561 | STUD,BALL | 1001-3173 | ||
| (\2\23D-27-11560) | STUD,BALL | (1001-1080) | ||
| 7 | 01010-81230 | BOLT | 3174- | |
| 01530-02010 | NUT | 1001-3173 | ||
| 8 | 23D-27-11571 | PLATE | 3174- | |
| 01658-22016 | WASHER | 1001-3173 | ||
| 9 | 04066-00040 | RING,SNAP | 1001- | |
| 10 | 23D-27-11840 | BOOT | 1001- | |
| 11 | 04066-00050 | RING,SNAP | 1001- | |
| 12 | 23D-27-11800 | BUSHING | 1001- | |
| 13 | 23D-27-11580 | RING,SNAP | 1001- | |
| (\2\04065-04218) | RING,SNAP | (1001-2131) | ||
| 14 | 23D-27-11470 | PLUG | 1001- | |
| 15 | 23D-27-11553 | STUD,BALL | 3174- | |
| 23D-27-11551 | STUD,BALL | 1081-3173 | ||
| 23D-27-11550 | STUD,BALL | 1001-1080 | ||
| 16 | 01010-81230 | BOLT | 3174- | |
| 01530-02010 | NUT | 1001-3173 | ||
| 17 | 23D-27-11571 | PLATE | 3174- | |
| 01658-22016 | WASHER | 1001-3173 | ||
| 18 | 04066-00040 | RING,SNAP | 1001- | |
| 19 | 23D-27-11840 | BOOT | 1001- | |
| 20 | 04066-00050 | RING,SNAP | 1001- | |
| 21 | 23D-27-11410 | ROD,TIE | 1001- | |
| 22 | 23D-27-11450 | NUT | 1001- | |
| 23 | 23D-27-11460 | JOINT | 1001- | |
| 24 | 23D-27-11440 | ROD,END | 1001- | |
| 25 | 01583-13621 | NUT | 1001- | |
| 26 | 23D-27-11800 | BUSHING | 1001- | |
| 27 | 07020-00900 | FITTING,GREASE | 1081- | |
| 07020-00000 | FITTING,GREASE | 1001-1080 | ||
| 28 | 04065-04218 | RING,SNAP | 1001- | |
| 29 | 23D-27-11470 | PLUG | 1001- |
