| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-54-28711 | Mat | 85001- | |
| 2 | 11Y-54-58880 | Plate | 85001- | |
| 3 | 11Y-54-58890 | Plate | 85001- | |
| 4 | 01010-D0616 | Bolt | 85001- | |
| 5 | 01643-70623 | Washer | 85001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D37px 24 s/n 85001 up
- Operator's compartment and control system
- Floor mat (#85001 )
Поиск по каталогу

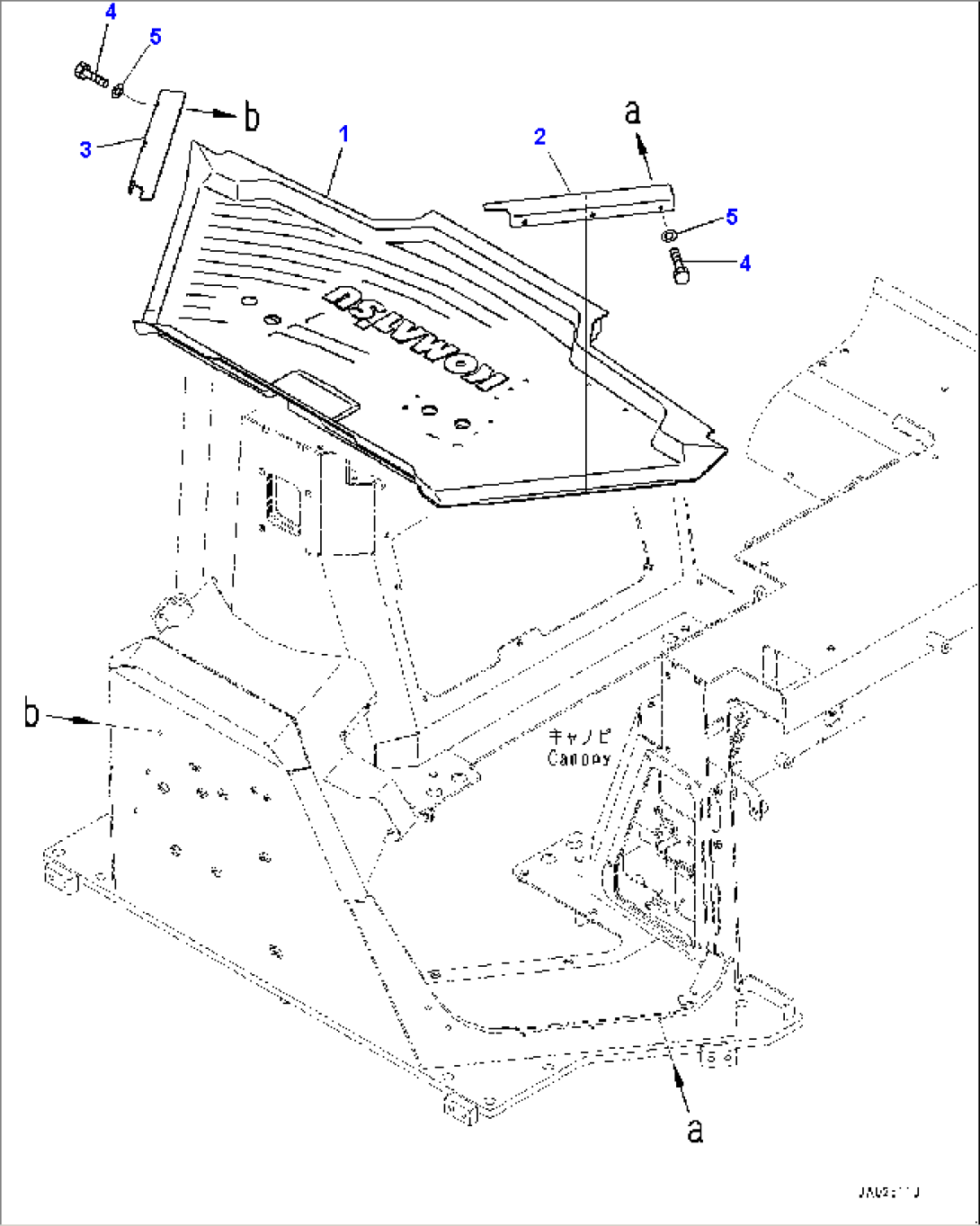

Floor Mat (#85001-)
