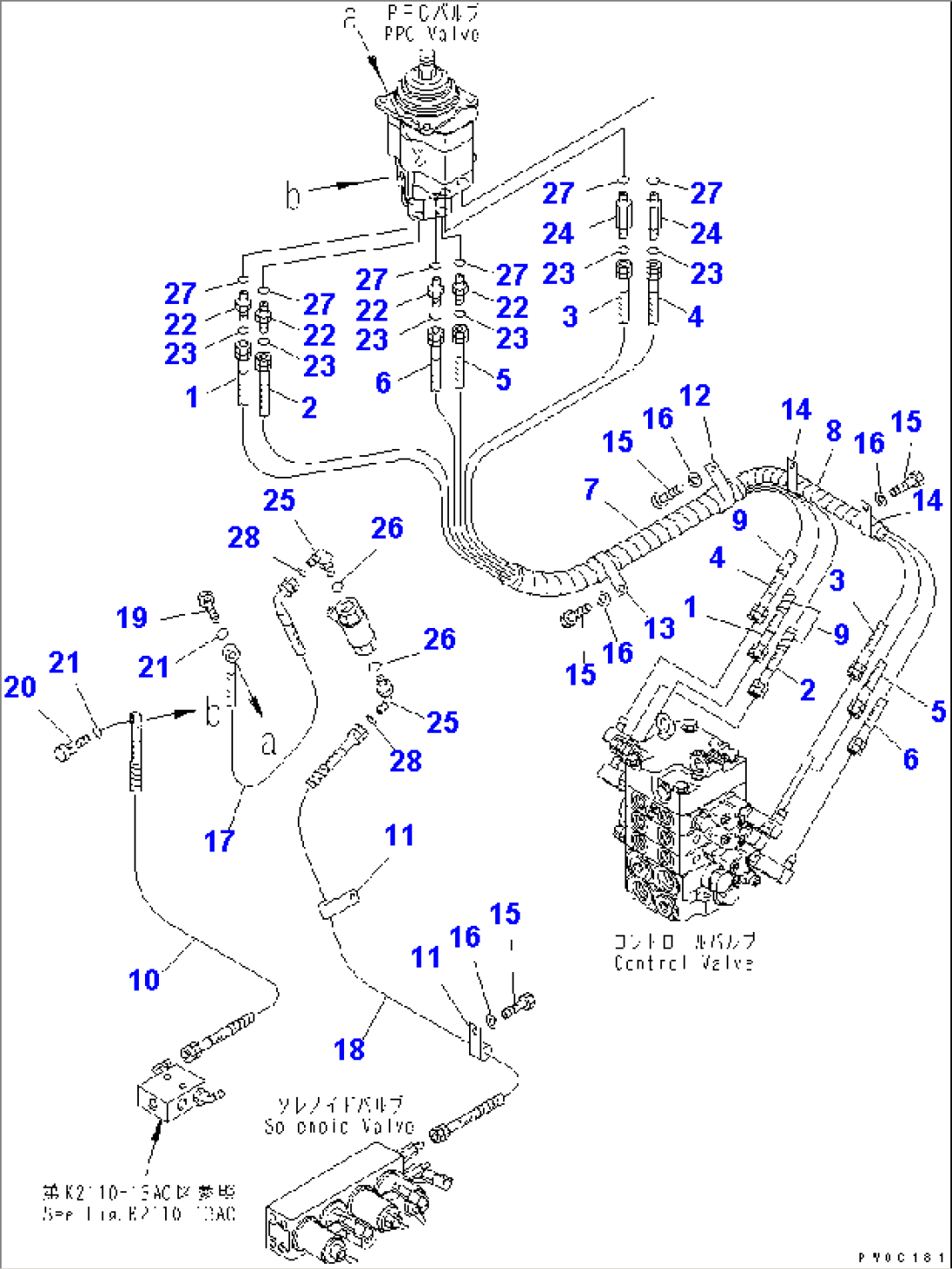

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-62-11351 | HOSE,BROWN | 1001- | |
| 2 | 11Y-62-11351 | HOSE,ORANGE | 1001- | |
| 3 | 11Y-62-11361 | HOSE,GREEN | 1001- | |
| 4 | 02760-00210 | HOSE¤ 1000MM | 1167- | |
| 11Y-62-11270 | HOSE,BLUE | 1001-1166 | ||
| 5 | 11Y-62-11280 | HOSE | 1001- | |
| 6 | 11Y-62-11371 | HOSE,WHITE | 1001- | |
| 7 | 08210-02905 | SPIRAL TUBE | 1001- | |
| 8 | 08210-01805 | SPIRAL TUBE | 1001- | |
| 9 | 08210-01211 | SPIRAL TUBE | 1001- | |
| 10 | 11Y-62-11621 | HOSE | 1001- | |
| 11 | 04434-51810 | CLIP | 1001- | |
| 12 | 23S-62-25850 | CLIP | 1001- | |
| 13 | 208-06-19170 | CLIP | 1001- | |
| 14 | 04434-52711 | CLIP | 1001- | |
| 15 | 01010-81020 | BOLT | 1001- | |
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 11Y-62-11631 | HOSE | 1001- | |
| 18 | 11Y-62-11271 | HOSE | 1001- | |
| 19 | 702-16-53240 | PLUG | 1001- | |
| 20 | 203-62-57730 | BOLT | 1001- | |
| 21 | 07000-12018 | O-RING | 1001- | |
| 22 | 02781-0021D | UNION | 1167- | |
| 11Y-62-12130 | NIPPLE | 1111-1166 | ||
| 02781-00210 | UNION | 1001-1110 | ||
| 23 | 02896-11008 | O-RING | 1001- | |
| 24 | 11Y-62-12390 | UNION | 1001- | |
| 25 | 02782-10315 | ELBOW | 1001- | |
| 25 | 01583-52012 | NUT | 1001- | |
| 26 | 07002-12034 | O-RING | 1001- | |
| 27 | 07002-11423 | O-RING | 1001- | |
| 28 | 02896-11009 | O-RING | 1001- |
