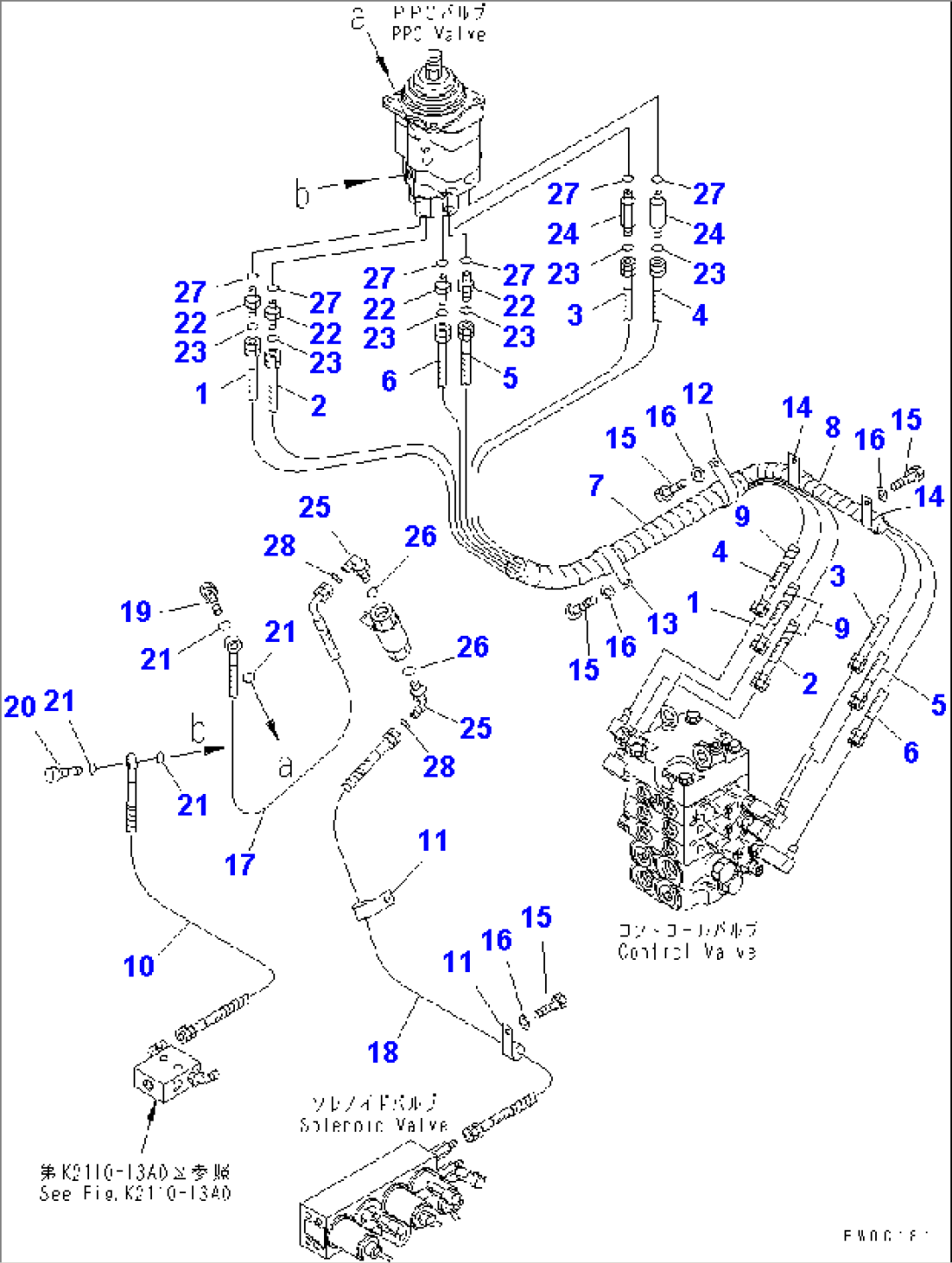

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-62-11351 | HOSE, 1080MM,BROWN | 5001- | |
| 2 | 11Y-62-11351 | HOSE, 1080MM,ORANGE | 5001- | |
| 3 | 11Y-62-11361 | HOSE, 1360MM,GREEN | 5001- | |
| 4 | 02760-00210 | HOSE, 1000MM,BLUE | 5077- | |
| 4 | 11Y-62-11270 | HOSE, 1000MM,BLUE | 5001-5076 | |
| 5 | 11Y-62-11280 | HOSE, 1370MM | 5001- | |
| 6 | 11Y-62-11371 | HOSE, 1420MM,WHITE | 5001- | |
| 7 | 08210-02905 | SPIRAL TUBE | 5001- | |
| 8 | 08210-01805 | SPIRAL TUBE | 5001- | |
| 9 | 08210-01211 | SPIRAL TUBE | 5001- | |
| 10 | 11Y-62-11621 | HOSE, 900MM | 5001- | |
| 11 | 04434-51810 | CLIP | 5001- | |
| 12 | 23S-62-25850 | CLIP | 5001- | |
| 13 | 208-06-19170 | CLIP | 5001- | |
| 14 | 04434-52711 | CLIP | 5001- | |
| 15 | 01010-81020 | BOLT | 5001- | |
| 16 | 01643-31032 | WASHER | 5001- | |
| 17 | 11Y-62-11631 | HOSE, 450MM | 5001- | |
| 18 | 11Y-62-11271 | HOSE, 1200MM | 5001- | |
| 19 | 702-16-53240 | PLUG | 5001- | |
| 20 | 203-62-57730 | BOLT | 5001- | |
| 21 | 07000-12018 | O-RING | 5001- | |
| 22 | 02781-0021D | UNION | 5077- | |
| 22 | 11Y-62-12130 | NIPPLE | 5001-5076 | |
| 23 | 02896-11008 | O-RING | 5001- | |
| 24 | 11Y-62-12390 | UNION | 5001- | |
| 25 | 02782-10315 | ELBOW | 5001- | |
| 26 | 07002-12034 | O-RING | 5001- | |
| 27 | 07002-11423 | O-RING | 5001- | |
| 28 | 02896-11009 | O-RING | 5001- |
