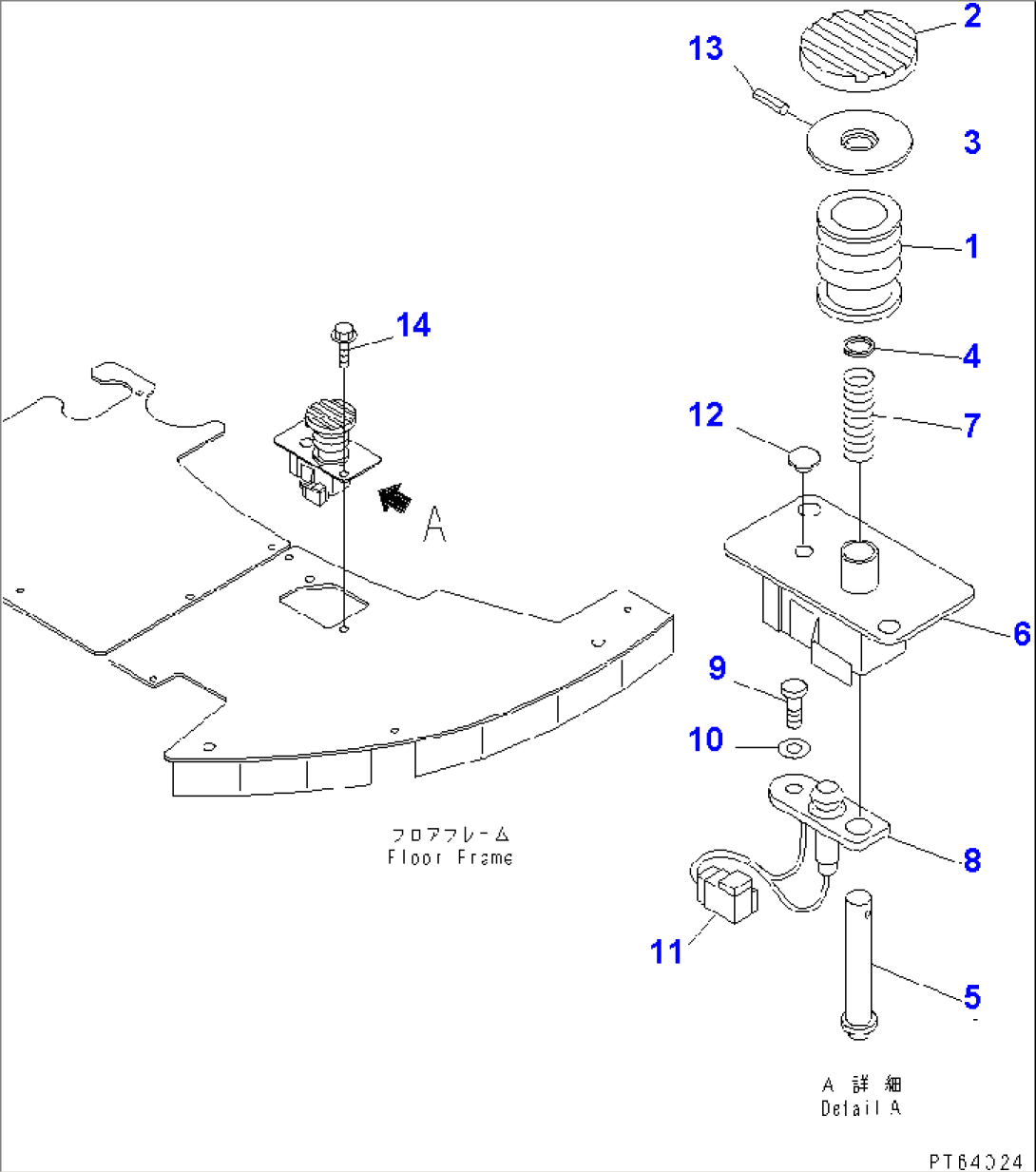

| Item | Part No. | Part Name | Qty | Serial No. |
| 21U-43-31710 | PEDAL ASS'Y | 10001- | ||
| 1 | 20T-43-72320 | BOOT | 10001- | |
| 2 | 20T-43-72330 | CAP | 10001- | |
| 3 | 20T-43-72340 | PEDAL | 10001- | |
| 4 | 20T-43-72380 | WASHER | 10001- | |
| 5 | 20T-43-82360 | SHAFT | 10001- | |
| 6 | 21U-43-31720 | BODY | 10001- | |
| 7 | 20T-43-72370 | SPRING | 10001- | |
| 8 | 20T-06-71770 | SWITCH | 10001- | |
| 9 | 6134-71-5750 | SCREW,CLIP | 10001- | |
| 10 | 01641-20508 | WASHER | 10001- | |
| 11 | 20T-06-71781 | HARNESS | 10001- | |
| 12 | 203-54-32260 | STOPPER | 10001- | |
| 13 | 04025-00620 | PIN,SPRING | 10001- | |
| 14 | 01435-01020 | BOLT | 10001- |
