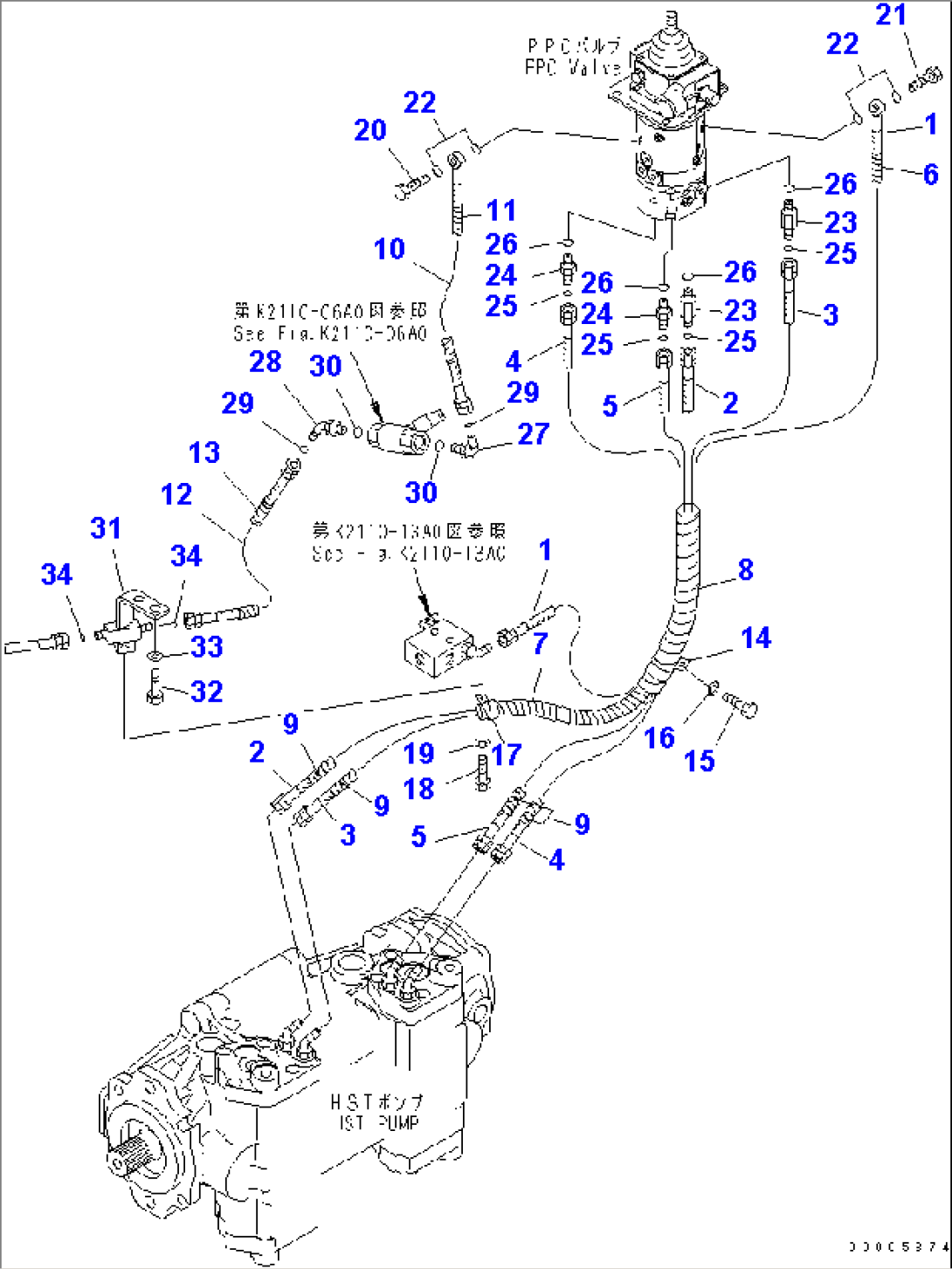

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-62-11231 | HOSE | 1209- | |
| 2 | 11Y-62-13510 | HOSE,YELLOW | 1209- | |
| 3 | 02760-003A9 | HOSE,ORANGE | 1209- | |
| 4 | 02760-00308 | HOSE,BLUE | 1209- | |
| 5 | 02760-00308 | HOSE,GREEN | 1209- | |
| 6 | 08210-01202 | SPIRAL TUBE | 1001- | |
| 7 | 08210-01803 | SPIRAL TUBE | 1001- | |
| 8 | 08210-02903 | SPIRAL TUBE | 1001- | |
| 9 | 08210-01203 | SPIRAL TUBE | 1119- | |
| 10 | 11Y-62-13310 | HOSE ASS'Y | 1001- | |
| 11 | 08210-01202 | SPIRAL TUBE | 1001- | |
| 12 | 11Y-62-11440 | HOSE ASS'Y | 1001- | |
| 13 | 08210-01204 | SPIRAL TUBE | 1001- | |
| 14 | 23S-62-25850 | CLIP | 1001- | |
| 15 | 01010-81020 | BOLT | 1001- | |
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 04434-52711 | CLIP | 1001- | |
| 18 | 01010-81020 | BOLT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- | |
| 20 | 702-16-53240 | PLUG | 1001- | |
| 21 | 203-62-57730 | BOLT | 1001- | |
| 22 | 07000-12018 | O-RING | 1001- | |
| 23 | 11Y-62-13330 | UNION | 1209- | |
| 24 | 11Y-62-13340 | UNION | 1209- | |
| 25 | 02896-11009 | O-RING | 1001- | |
| 26 | 07000-12011 | O-RING | 1001- | |
| 27 | 02782-10315 | ELBOW | 1001- | |
| 28 | 02783-10315 | ELBOW | 1001- | |
| 29 | 02896-11009 | O-RING | 1001- | |
| 30 | 07002-12034 | O-RING | 1001- | |
| 31 | 11Y-62-12561 | BRACKET | 1001- | |
| 32 | 01010-81020 | BOLT | 1001- | |
| 33 | 01643-31032 | WASHER | 1001- | |
| 34 | 02896-11009 | O-RING | 1001- |
