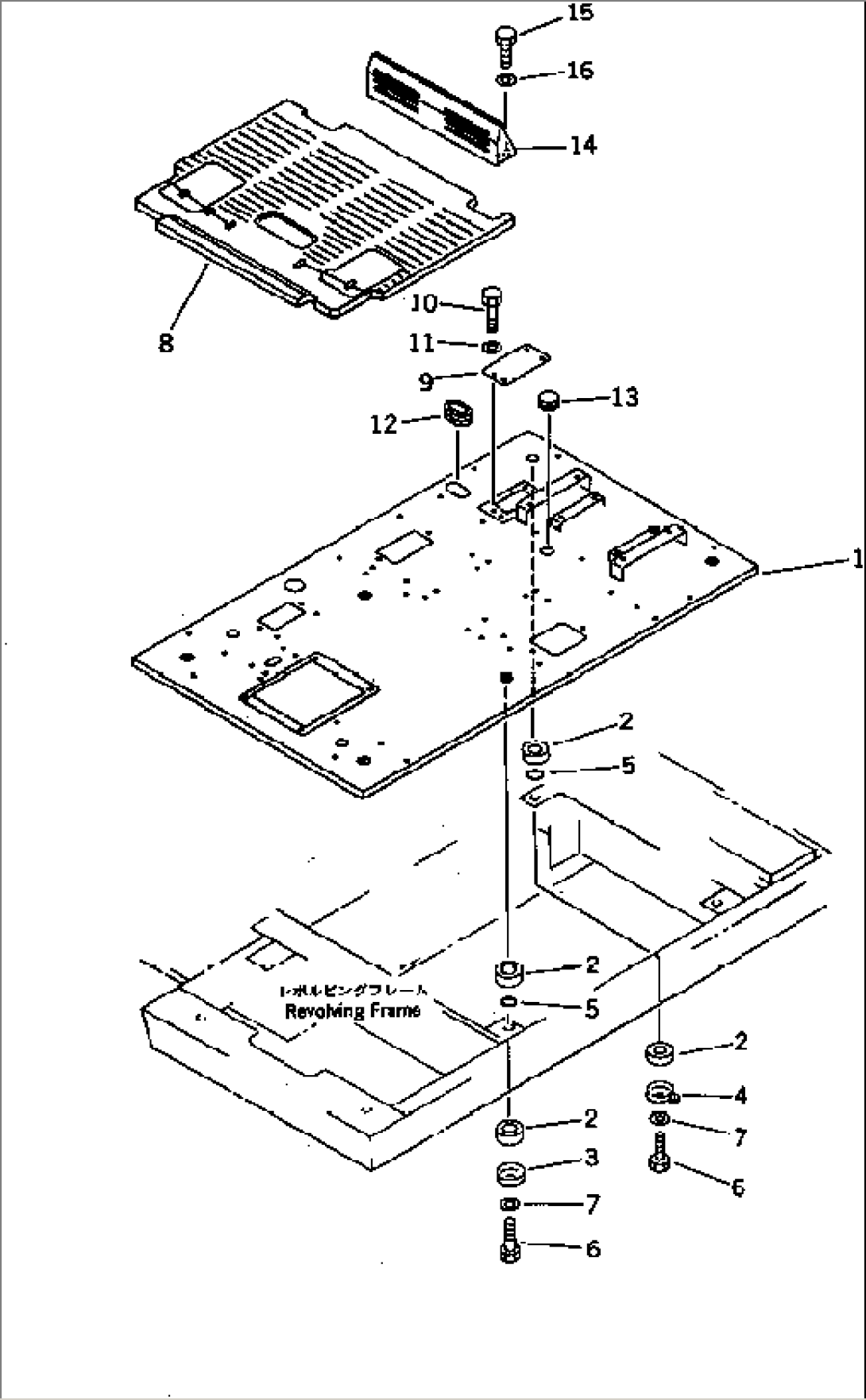

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-54-65111 | FRAME,FLOOR | 1404- | |
| 1 | 201-54-65110 | FRAME,FLOOR | 1001-1403 | |
| 2 | 203-54-21110 | CUSHION | 1001- | |
| 3 | 201-54-21860 | COLLAR | 1001- | |
| 4 | 203-54-56860 | COLLAR | 1001- | |
| 5 | 07000-03025 | O-RING | 1001- | |
| 6 | 01010-51675 | BOLT | 1001- | |
| 7 | 01643-31645 | WASHER | 1001- | |
| 8 | 20Y-54-16550 | MAT,FLOOR | 1001- | |
| 8 | 203-977-5180 | MAT,(FOR DEFROSTER) | 1001- | |
| 8 | 202-973-6610 | MAT,FLOOR (FOR ATTACHMENT) | 1001- | |
| 8 | 202-973-6670 | MAT,FLOOR (FOR WITH DEF. AND ATT.) | 1001- | |
| 9 | 201-54-65120 | PLATE | 1001- | |
| 10 | 01010-51225 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 176-911-4160 | GROMMET | 1001- | |
| 13 | 09415-03614 | CAP | 1001- | |
| 14 | 20Y-43-16130 | COVER | 1001- | |
| 15 | 01010-51225 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- |
