| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20N-54-71311 | FRAME,FLOOR | 35001-42354 | |
| 2 | 203-54-21110 | CUSHION | 35001-42354 | |
| 3 | 20N-54-71321 | COLLAR | 35001-@ | |
| 4 | 01010-51465 | BOLT | 35001-@ | |
| 5 | 01643-31445 | WASHER | 35001-@ | |
| 6 | 08037-02512 | GROMMET | 35001-@ |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc20 7 s/n 35001 up
- Operator's compartment and control system
- Floor frame (for canopy)(#35001 42354)
Поиск по каталогу

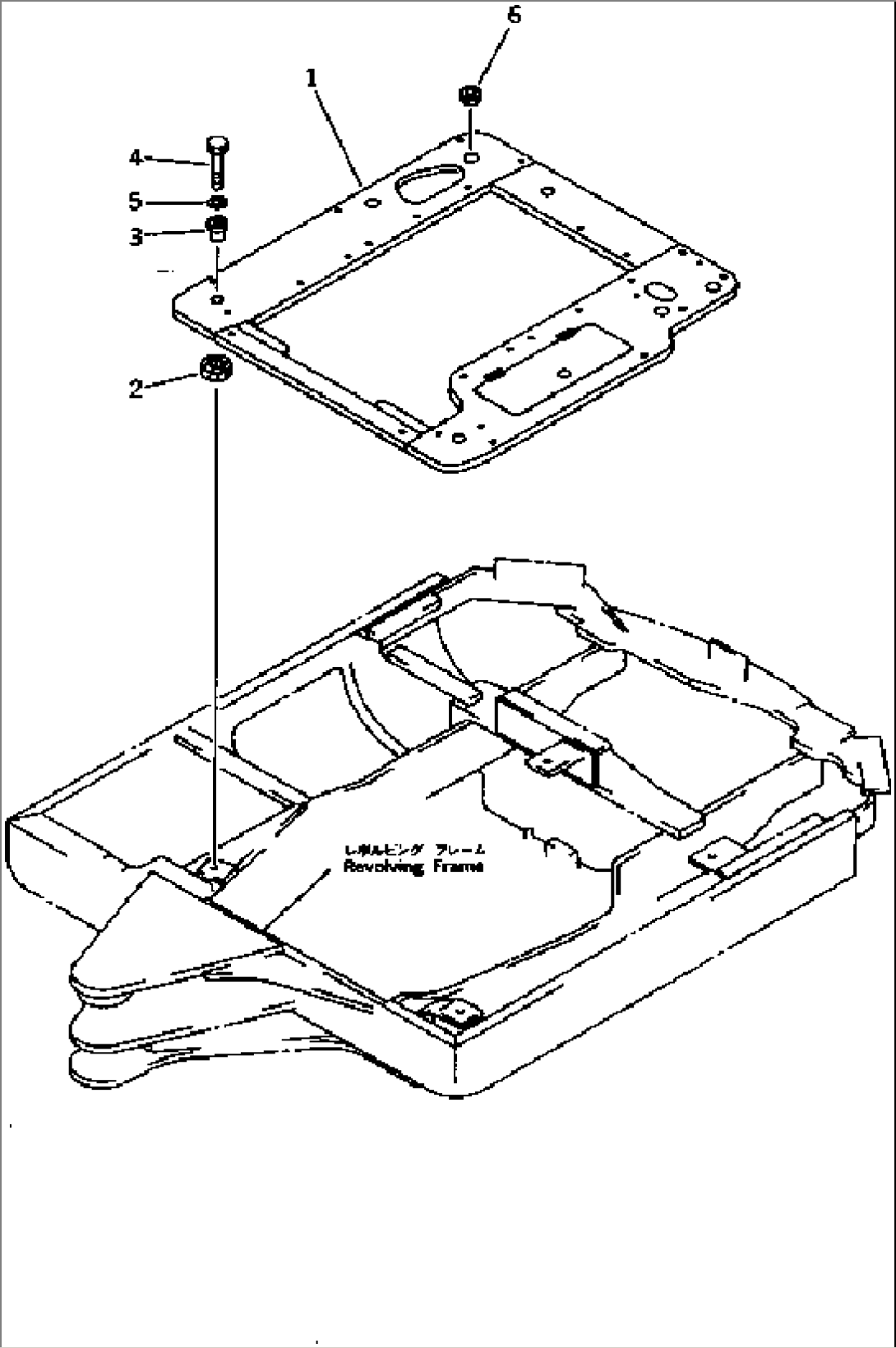

FLOOR FRAME (FOR CANOPY)(#35001-42354)
