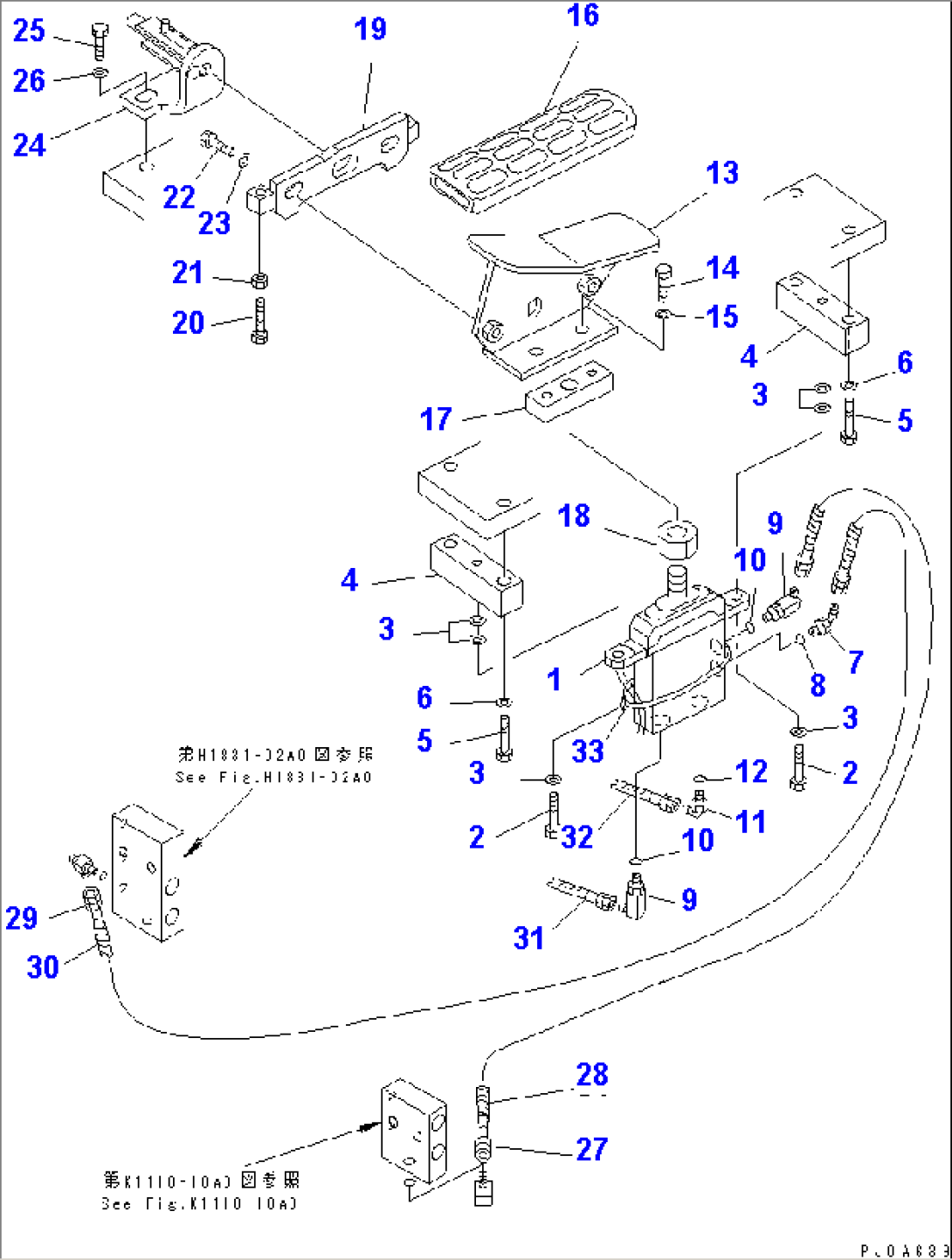

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-01270 | PILOT VALVE | 1001- | |
| 2 | 01010-81030 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 4 | 20Y-62-25411 | PLATE | 1001- | |
| 5 | 01010-81040 | BOLT | 1001- | |
| 6 | 01643-31032 | WASHER | 1001- | |
| 7 | 21P-62-11590 | ELBOW | 1248- | |
| 23S-60-51610 | ELBOW | 1001-1247 | ||
| 8 | 07000-02011 | O-RING | 1001- | |
| 9 | 20U-62-22430 | ELBOW | 1001- | |
| 10 | 07000-02011 | O-RING | 1001- | |
| 11 | 21P-62-11590 | ELBOW | 1001- | |
| 12 | 07000-02011 | O-RING | 1001- | |
| 13 | 203-43-61510 | PEDAL | 1001- | |
| 14 | 01010-D0820 | BOLT | 1001- | |
| 15 | 01643-70823 | WASHER | 1001- | |
| 16 | 14X-43-12110 | PEDAL CAP | 1001- | |
| 17 | 203-43-61520 | SEAT | 1001- | |
| 18 | 01583-11408 | NUT | 1001- | |
| 19 | 21W-43-38110 | PLATE | 1001- | |
| 20 | 01016-50840 | BOLT | 1001- | |
| 21 | 01580-10806 | NUT | 1001- | |
| 22 | 01010-D1030 | BOLT | 1001- | |
| 23 | 01643-71032 | WASHER | 1001- | |
| 24 | 20Y-62-25360 | BRACKET | 1001- | |
| 25 | 01010-D1025 | BOLT | 1001- | |
| 26 | 01643-71032 | WASHER | 1001- | |
| 27 | 07184-002A4 | HOSE | 1001- | |
| 28 | 08210-01204 | SPIRAL TUBE | 1001- | |
| 29 | 07184-00205 | HOSE | 1001- | |
| 30 | 08210-01205 | SPIRAL TUBE | 1001- | |
| 31 | 07184-00220 | HOSE | 1001- | |
| 32 | 07184-00221 | HOSE¤ 2100MM | 1001- | |
| 33 | 08034-00536 | BAND | 1001- |
