| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-Z11-2990 | COVER | 36534-@ | |
| 2 | 195-979-7720 | SCREW | 36534-@ | |
| 3 | 01642-20405 | WASHER | 36534-@ | |
| 4 | 195-911-6531 | BOX | 36534-@ | |
| 5 | 195-911-6562 | BAND | 36534-@ | |
| 6 | 154-Z11-1320 | PANEL | 36534-37646 | |
| 7 | 08174-23118 | MIRROR | 36534-@ |
- Главная
- Каталог запчастей
- Бульдозеры
- D85a 21 s/n 36534 up (s6d125e 2)
- Operator's compartment and control system
- First aid box (european spec.)(#36534 37646)
Поиск по каталогу

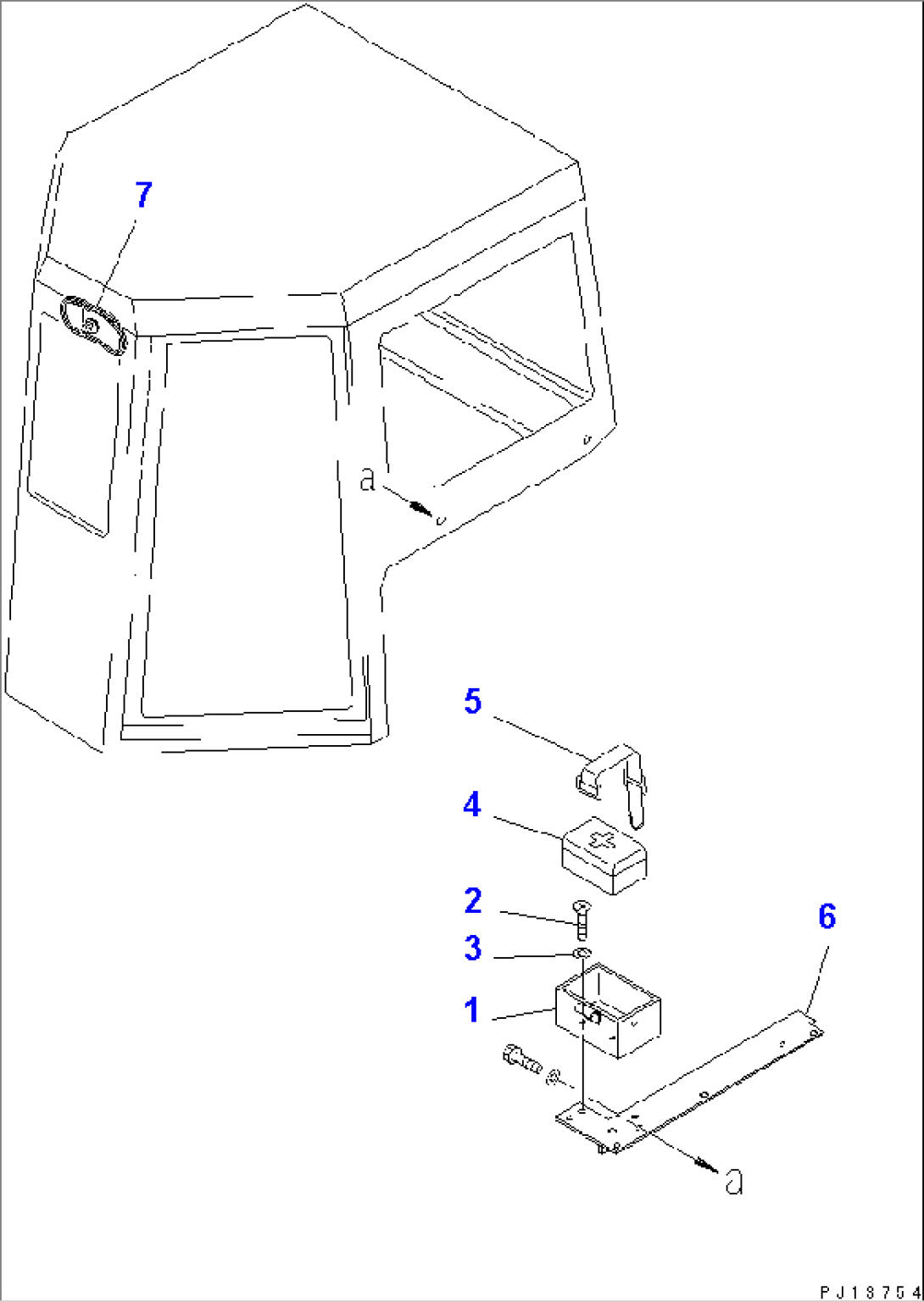

FIRST AID BOX (EUROPEAN SPEC.)(#36534-37646)
