| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-Z11-2990 | COVER | 3689- | |
| 2 | 195-979-7720 | SCREW | 3689- | |
| 3 | 01642-20405 | WASHER | 3689- | |
| 4 | 195-911-6531 | BOX | 3689- | |
| 5 | 195-911-6562 | BAND | 3689- | |
| 6 | 154-Z11-1320 | PANEL | 3689- | |
| 7 | 08174-23118 | MIRROR | 3689- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85p 21 s/n 3689 up (s6d125e 2)
- Operator's compartment and control system
- First aid box and room mirror (tbg spec.)
Поиск по каталогу

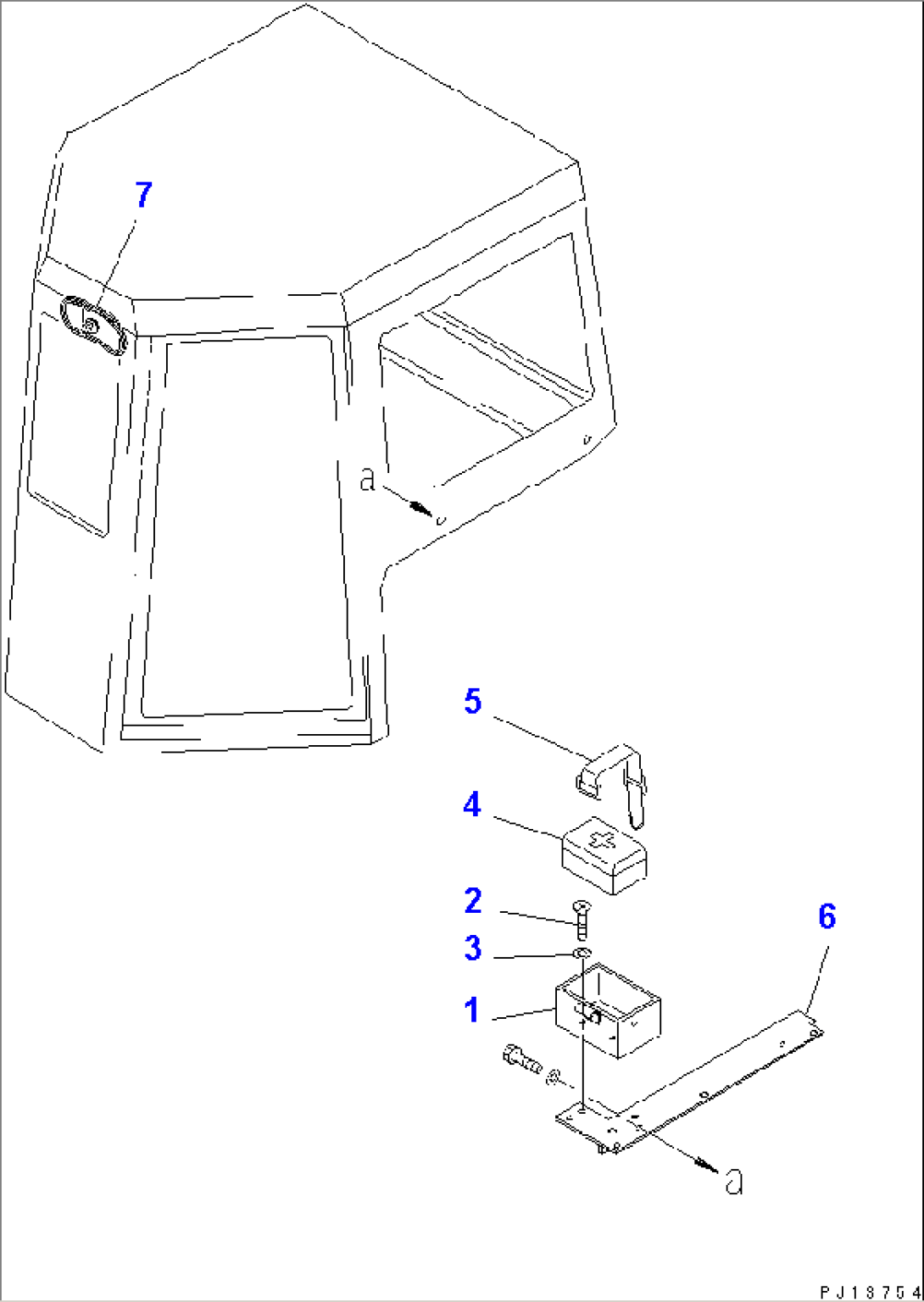

FIRST AID BOX AND ROOM MIRROR (TBG SPEC.)
