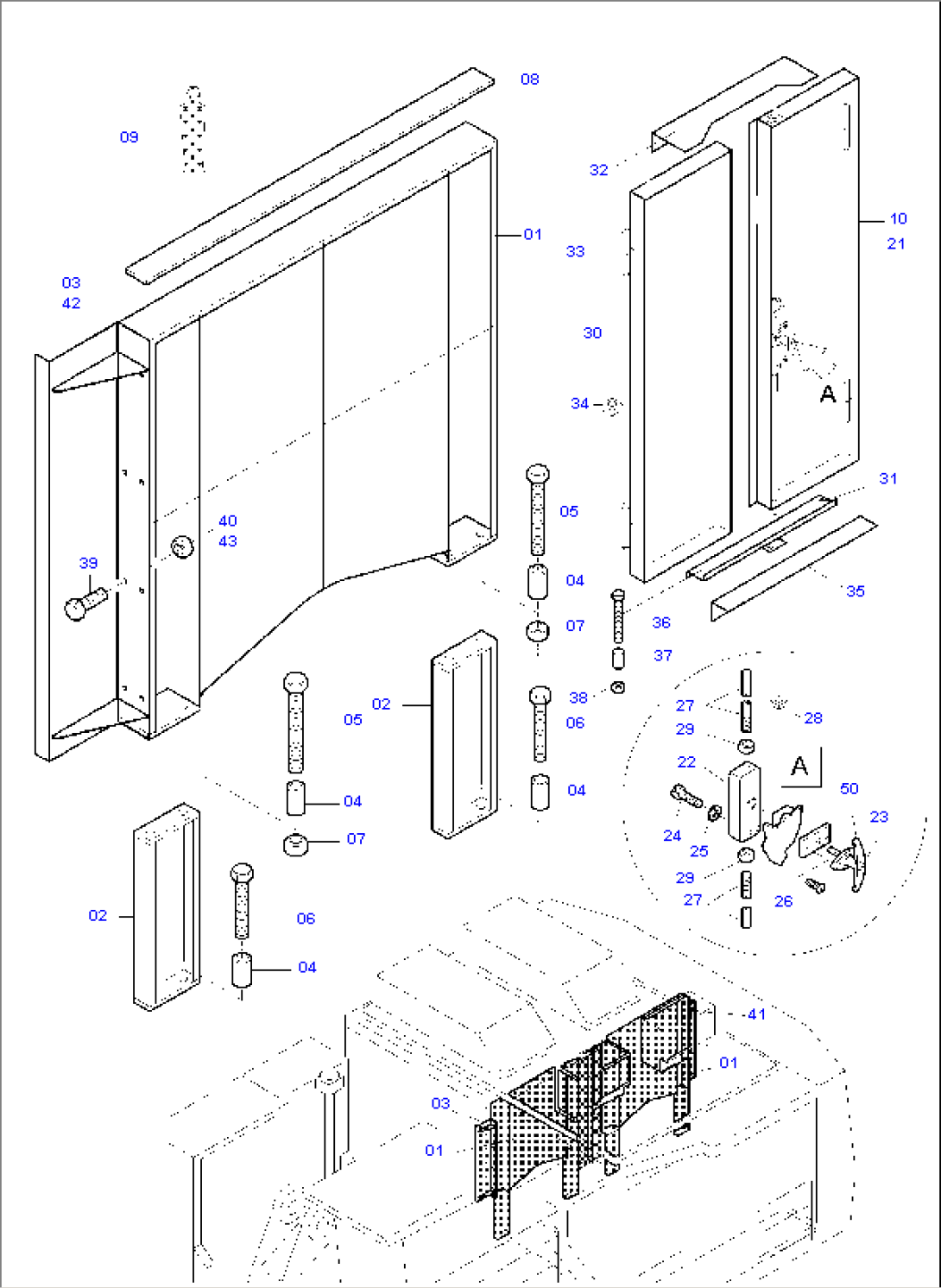

Item | Part No. | Part Name | Qty | Serial No. |
01 | 934 280 40 | Wall | ||
02 | 675 598 40 | Wall | ||
03 | 954 232 40 | Wall | ||
04 | 510 733 98 | Resilient sleeve | ||
05 | 308 424 99 | Bolt | ||
06 | 308 321 99 | Bolt | ||
07 | 332 355 99 | Nut | ||
08 | 661 607 40 | Profiled joint | ||
09 | 256 952 40 | Adhesive 0,2 Kg | ||
10 | 928 732 40 | Door Assy consist of fig. nos. 21-29,50 | ||
21 | 928 733 40 | Door | ||
22 | 323 635 40 | Edge | ||
23 | 323 661 40 | Handle | ||
24 | 321 009 99 | Srew | ||
25 | 346 509 99 | Lock washer | ||
26 | 318 576 99 | Srew | ||
27 | 928 738 40 | Fixing rod | ||
28 | 928 739 40 | Plate | ||
29 | 332 114 99 | Nut | ||
30 | 928 740 40 | Door | ||
31 | 928 744 40 | Door catch | ||
32 | 928 774 40 | Strip | ||
33 | 621 983 40 | Band roller with grease nippel | ||
34 | 928 749 40 | Plate | ||
35 | 928 748 40 | Angle | ||
36 | 308 608 99 | Srew | ||
37 | 512 958 98 | Resilent Sleeve | ||
38 | 332 334 99 | Nut | ||
39 | 307 775 99 | Screw | ||
40 | 507 037 98 | Nut | ||
41 | 954 233 40 | Wall | ||
42 | 166 575 40 | Profiled joint | ||
43 | 340 465 99 | Washer | ||
50 | 324 576 40 | Handle |
