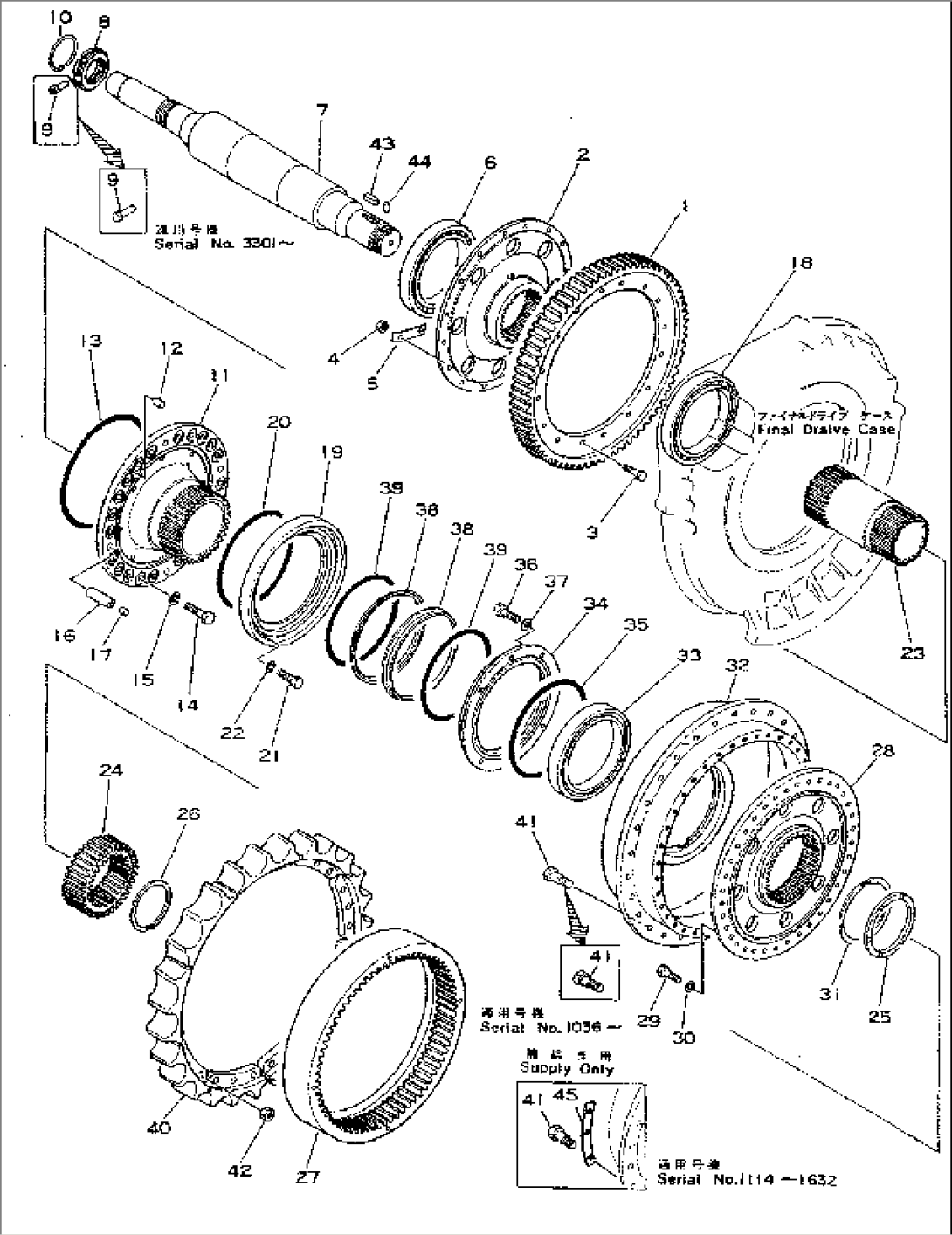

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-27-11242 | GEAR | 1010- | |
| 2 | 195-27-11253 | HUB | 2713- | |
| \0\195-27-11252 | HUB | 1010-2712 | ||
| 3 | 01084-01860 | BOLT | 1067- | |
| 195-27-11410 | BOLT | 1010-1066 | ||
| 4 | 01582-01815 | NUT | 1067- | |
| 01500-31816 | NUT | 1010-1066 | ||
| 5 | 195-27-11261 | PLATE | 1010- | |
| 6 | 195-27-11420 | BEARING | 1010- | |
| 7 | 195-27-12315 | SHAFT | 3301- | |
| 195-27-12314 | SHAFT | 1632-3299 | ||
| \3\195-27-12313 | SHAFT | 1117-1631 | ||
| (195-27-12314{195-27-12572)} | ||||
| 195-27-12582) | ||||
| 195-27-12312 | SHAFT | 1010-1116 | ||
| 8 | 180-27-11422 | NUT | 1010- | |
| 9 | 170-27-12491 | PIN | 3300- | |
| \0\180-27-11431 | PIN | 1010-3299 | ||
| 10 | 180-27-11441 | RING | 1010- | |
| 11 | 195-27-11282 | ANCHOR | 1010- | |
| 12 | 07049-01822 | PLUG | 1632- | |
| 13 | 07000-05480 | O-RING | 1010- | |
| 14 | 01010-32475 | BOLT | 1067- | |
| 01040-32470 | BOLT | 1010-1066 | ||
| 15 | 01602-02472 | WASHER | 1010- | |
| 16 | 195-27-11140 | PIN | 1010- | |
| 17 | 07049-01620 | PLUG | 1632- | |
| 18 | 195-27-11330 | BEARING | 1010- | |
| 19 | 195-27-11312 | GUARD | 3300- | |
| \0\195-27-11311 | GUARD | 1010-3299 | ||
| 20 | 07000-05400 | O-RING | 1010- | |
| 21 | 01252-31235 | BOLT | 1067- | |
| 01252-01230 | BOLT | 1010-1066 | ||
| 22 | 01602-01236 | WASHER | 1010- | |
| 23 | 195-27-12112 | SHAFT | 1010- | |
| 24 | 195-27-12121 | GEAR | 1010- | |
| 25 | 195-27-12132 | COLLAR | 1010- | |
| 26 | 04070-00210 | RING | 1010- | |
| 27 | 195-27-12435 | GEAR | 1317- | |
| \0\195-27-12434 | GEAR | 1031-1316 | ||
| \3\195-27-12433 | GEAR | 1010-1030 | ||
| (195-27-12435{195-27-12372)} | ||||
| 28 | 195-27-12422 | FLANGE | 1010- | |
| 29 | 01010-32460 | BOLT | 1067- | |
| 01040-32460 | BOLT | 1010-1066 | ||
| 30 | 01602-02472 | WASHER | 1010- | |
| 31 | 195-27-12190 | RING | 1010- | |
| 32 | 195-27-12226 | DRUM | 1632- | |
| \3\195-27-12225 | DRUM | 1114-1631 | ||
| (195-27-12226{195-27-12463¤} | ||||
| 195-27-12632) | ||||
| 195-27-12224 | DRUM | 1052-1113 | ||
| \3\195-27-12223 | DRUM | 1036-1051 | ||
| (195-27-12224{195-27-12630¤} | ||||
| 195-27-12641) | ||||
| \3\195-27-12222 | DRUM | 1010-1035 | ||
| (195-27-12224{195-27-12630¤} | ||||
| 195-27-12641) | ||||
| 33 | 195-27-12361 | BEARING | 1010- | |
| 34 | 195-27-11322 | GUARD | 3300- | |
| \0\195-27-11321 | GUARD | 1010-3299 | ||
| 35 | 07000-05400 | O-RING | 1010- | |
| 36 | 01252-31235 | BOLT | 1067- | |
| 01252-01230 | BOLT | 1010-1066 | ||
| 37 | 01602-01236 | WASHER | 1010- | |
| 423-33-00021 | FLOATING SEAL ASS'Y | 13818- | ||
| 170-27-00053 | FLOATING SEAL ASS'Y,(FOR SLAG HANDLING) | 13818- | ||
| \0\423-33-00020 | FLOATING SEAL ASS'Y | 1010-13817 | ||
| 170-27-00023 | FLOATING SEAL ASS'Y | 4741- | ||
| \0\170-27-00021 | FLOATING SEAL ASS'Y | 3121-4740 | ||
| \0\170-27-00020 | FLOATING SEAL ASS'Y | 1010-3120 | ||
| 38 | 170-27-00114 | SEAL RING ASS'Y | 13818- | |
| \0\170-27-00113 | SEAL RING ASS'Y | 4741-13817 | ||
| \0\170-27-00111 | SEAL RING ASS'Y | 3121-4740 | ||
| \0\170-27-00110 | SEAL RING ASS'Y | 1010-3120 | ||
| \6\ | RING | 13818- | ||
| \6\ | RING | 4741-13817 | ||
| \6\ | RING | 3121-4740 | ||
| \6\ | RING | 1010-3120 | ||
| 39 | 195-27-00150 | O-RING ASS'Y | 8737- | |
| 154-27-00040 | O-RING ASS'Y,(FOR SLAG HANDLING) | 8737- | ||
| \0\170-27-00120 | O-RING ASS'Y | 1010-8736 | ||
| 195-27-12710 | O-RING | 8737- | ||
| 154-27-12451 | O-RING,(FOR SLAG HANDLING) | 8737- | ||
| 170-27-12520 | O-RING | 1010-8736 | ||
| 40 | 195-27-12467 | TEETH | 9349- | |
| \0\195-27-12466 | TEETH | 3803-9348 | ||
| \0\195-27-12465 | TEETH | 2551-3802 | ||
| 195-27-12463 | TEETH | 1632-2550 | ||
| \3\195-27-12462 | TEETH | 1114-1631 | ||
| (195-27-12463(18){195-27-12632(54)¤} | ||||
| 01803-02430(54){195-27-12990(18))} | ||||
| 195-27-12461 | TEETH | 1010-1113 | ||
| 195-27-31920 | TEETH,(FOR 5 TEETH) | 13318- | ||
| 195-27-31940 | TEETH,(FOR 6 TEETH) | 13318- | ||
| 41 | 195-27-12632 | BOLT | 1632- | |
| 195-27-12631 | BOLT | 1114-1631 | ||
| 195-27-12630 | BOLT | 1036-1113 | ||
| 180-32-11212 | BOLT | 1010-1035 | ||
| 195-27-31640 | BOLT | 13318- | ||
| 42 | 01803-02430 | NUT | 1632- | |
| 195-27-12641 | NUT | 1067-1631 | ||
| 195-27-12640 | NUT | 1036-1066 | ||
| 180-32-11222 | NUT | 1010-1035 | ||
| 43 | 04000-01580 | KEY | 1010- | |
| 44 | 195-27-12670 | PIN | 1117- | |
| 170-27-12420 | PIN | 1010-1116 | ||
| 45 | 195-27-12990 | SPACER | 1114-1632 |
