| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-22151 | BLOCK | ||
| 2 | 01010-51050 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 07235-10315 | ELBOW | ||
| 5 | 07002-02034 | O-RING | ||
| 6 | 207-62-33920 | ELBOW | ||
| 7 | 07002-01423 | O-RING | ||
| 8 | 205-62-55270 | NIPPLE | ||
| 9 | 07002-01423 | O-RING |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200 6l/pc200lc 6l s/n a80001 a82000
- Operator's compartment and control system
- Fig no. k1520 0301 ppc work line (ppc work line block)
Поиск по каталогу

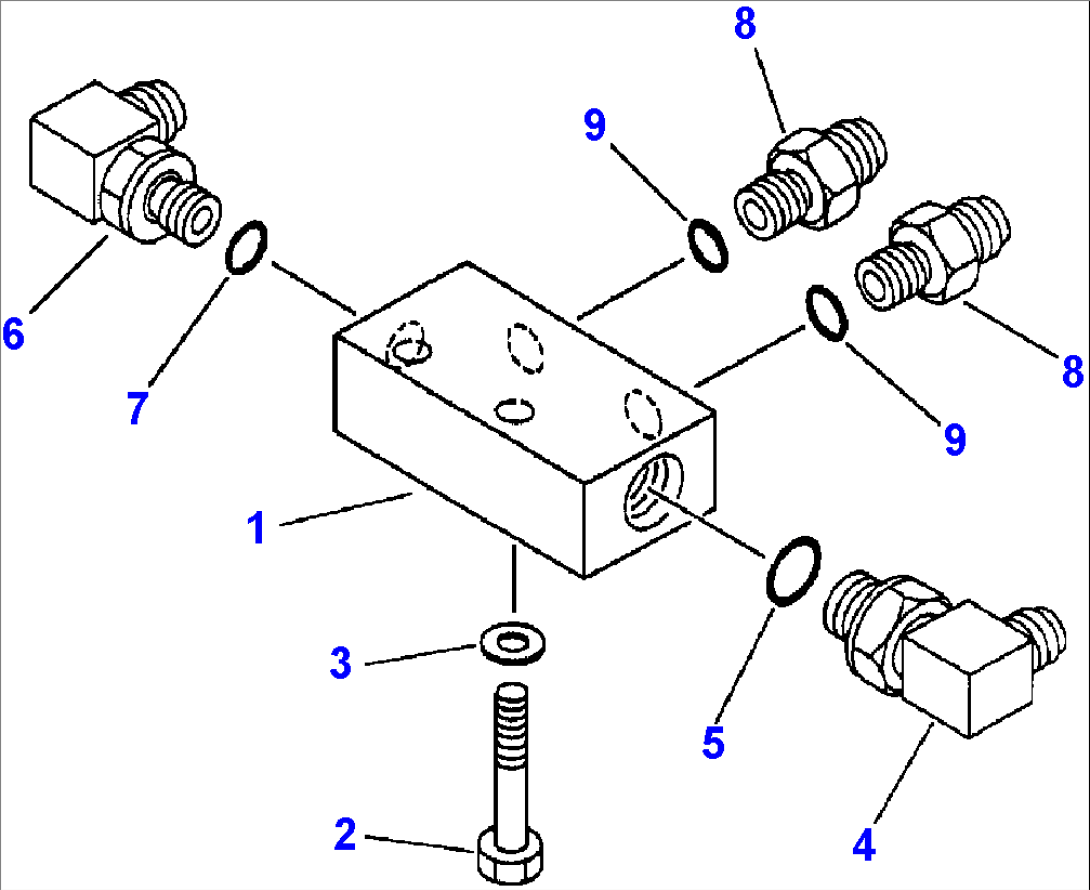

FIG NO. K1520-0301 PPC WORK LINE (PPC WORK LINE BLOCK)
