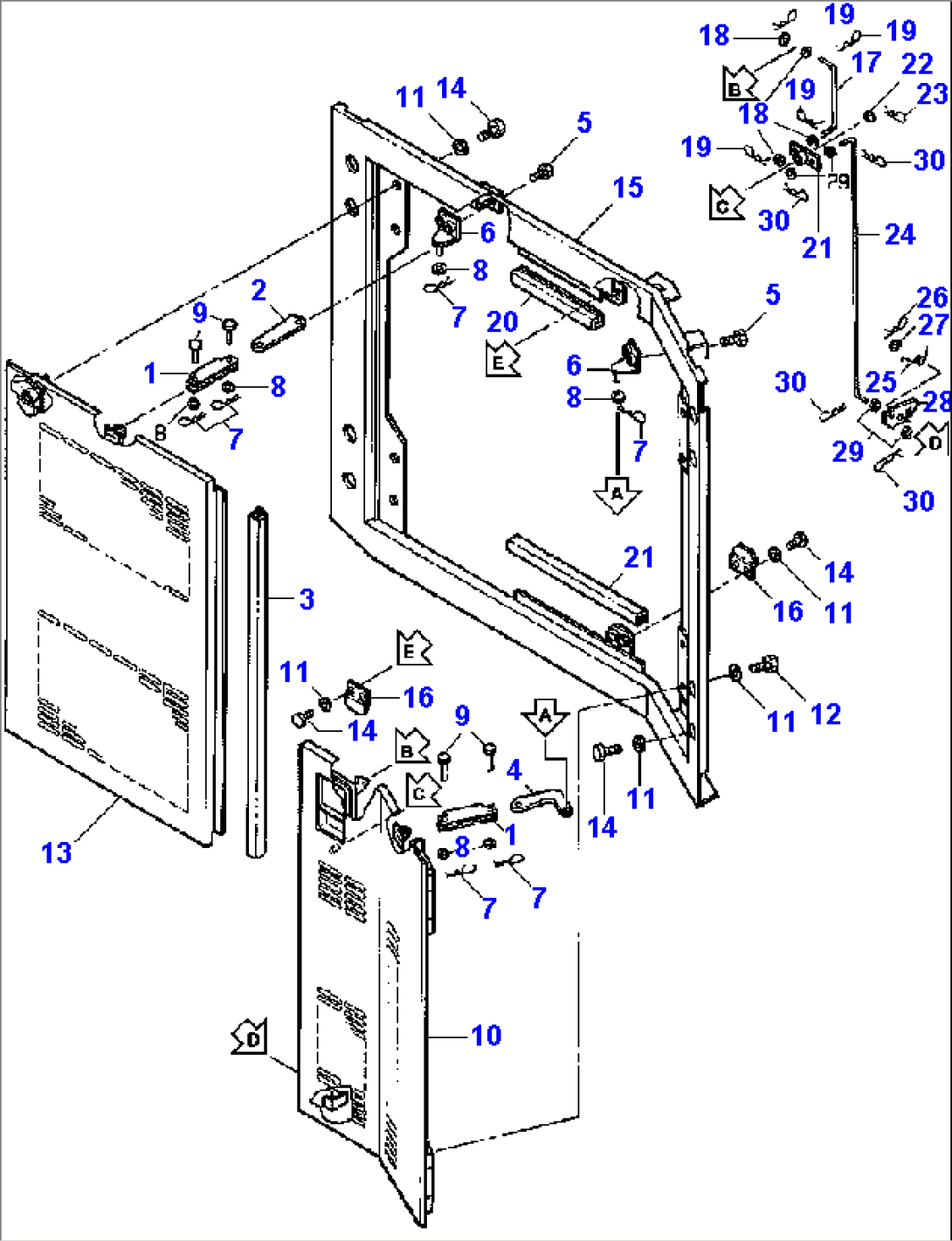

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-T86-2541 | ARM | ||
| 2 | 427-T86-2550 | ARM | ||
| 3 | 22T-54-12290 | SEAL | ||
| 4 | 427-T86-2561 | ARM | ||
| 5 | 01435-01025 | BOLT | ||
| 6 | 421-54-24950 | ANGLE | ||
| 7 | 04052-11308 | PIN | ||
| 8 | 01641-21016 | WASHER | ||
| 9 | 04205-31025 | PIN | ||
| 10 | 427-T86-2582 | DOOR, L. H | ||
| 11 | 01643-31232 | WASHER | ||
| 12 | 01010-81220 | BOLT | ||
| 13 | 427-T86-2530 | DOOR. L. H | ||
| 14 | 01010-81225 | BOLT | ||
| 15 | 427-T86-2590 | PLATE | ||
| 16 | 426-54-11990 | PLATE | ||
| 17 | 423-54-24830 | PLATE | ||
| 18 | 01641-20608 | WASHER | ||
| 19 | 04052-10633 | PIN | ||
| 20 | 425-54-21280 | SPACER | ||
| 21 | 423-54-24650 | PLATE | ||
| 22 | 01641-21016 | WASHER | ||
| 23 | 04052-11038 | PIN | ||
| 24 | 427-T86-2510 | SHEET | ||
| 25 | 417-54-21610 | SPRING | ||
| 26 | 04052-11038 | PIN | ||
| 27 | 01641-21016 | WASHER | ||
| 28 | 427-T86-2520 | PLATE | ||
| 29 | 01641-20608 | WASHER | ||
| 30 | 04052-10633 | PIN |
