| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1171 831 C1 | MIRROR, CONVEX | ||
| 2 | 598 813 R1 | BOLT, CARRIAGE | ||
| 3 | 120 396 | WASHER, FLAT | ||
| 4 | 359 787 C1 | NUT, LOCK | ||
| 5 | 1171 438 C1 | BRACKET, MIRROR MOUNTING | ||
| 6 | 21 780 R1 | SCREW, MACHINE | ||
| 7 | 120 394 | WASHER, FLAT | ||
| 8 | 120 377 | NUT, HEX |
- Главная
- Каталог запчастей
- Автогрейдеры
- 850b/850c s/n u202575 up/u202727 up
- Operator's compartment and control system
- Fig. k5380 01a0 rear view mirror inside mounting
Поиск по каталогу

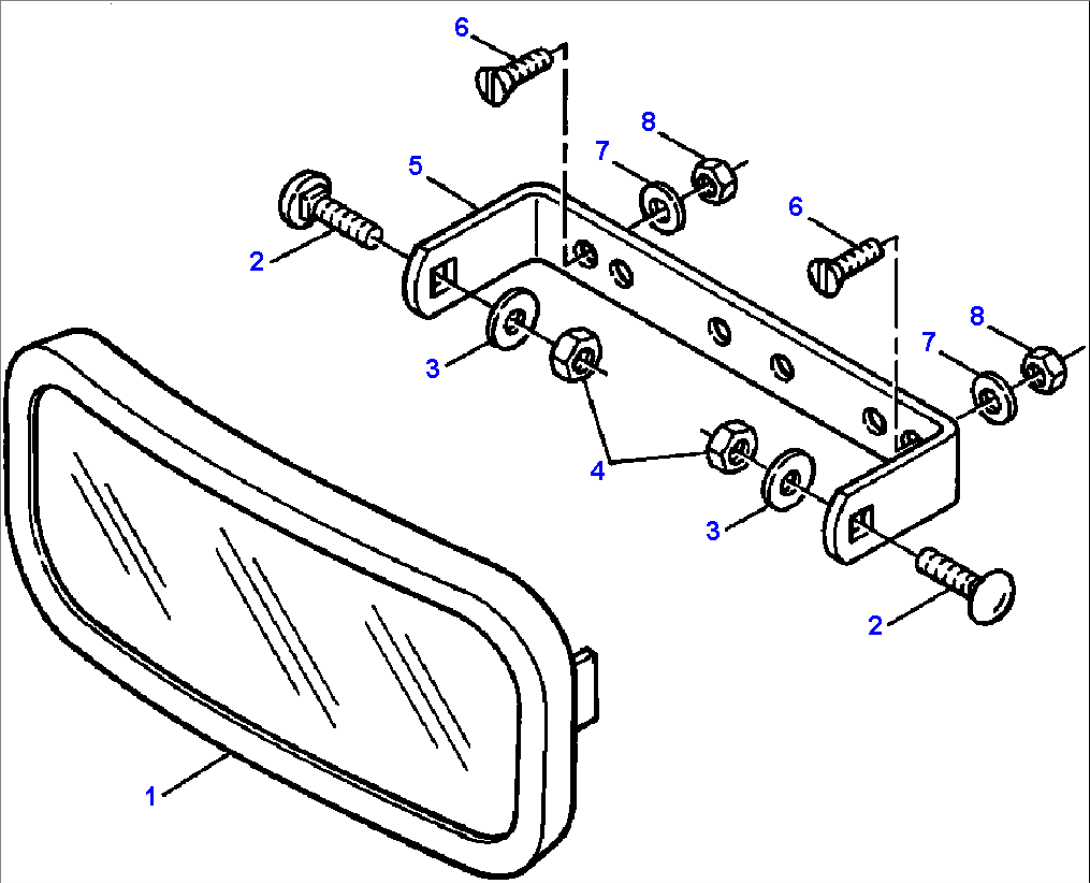

FIG. K5380-01A0 REAR VIEW MIRROR - INSIDE MOUNTING
