| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6150-12-6460 | TUBE, VENT | ||
| 2 | 07206-30710 | BOLT, JOINT | ||
| 3 | 07005-01012 | GASKET | ||
| F1 THIS ITEM IS ALSO INCLUDED IN CYLINDER HEAD GASKET KIT. REFER TO FIG. A8123-A3A8. | ||||
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400lc 6lm/pc400hd 6lm s/n a85001 up
- Engine
- Fig. a5010 b3e7a air vent
Поиск по каталогу

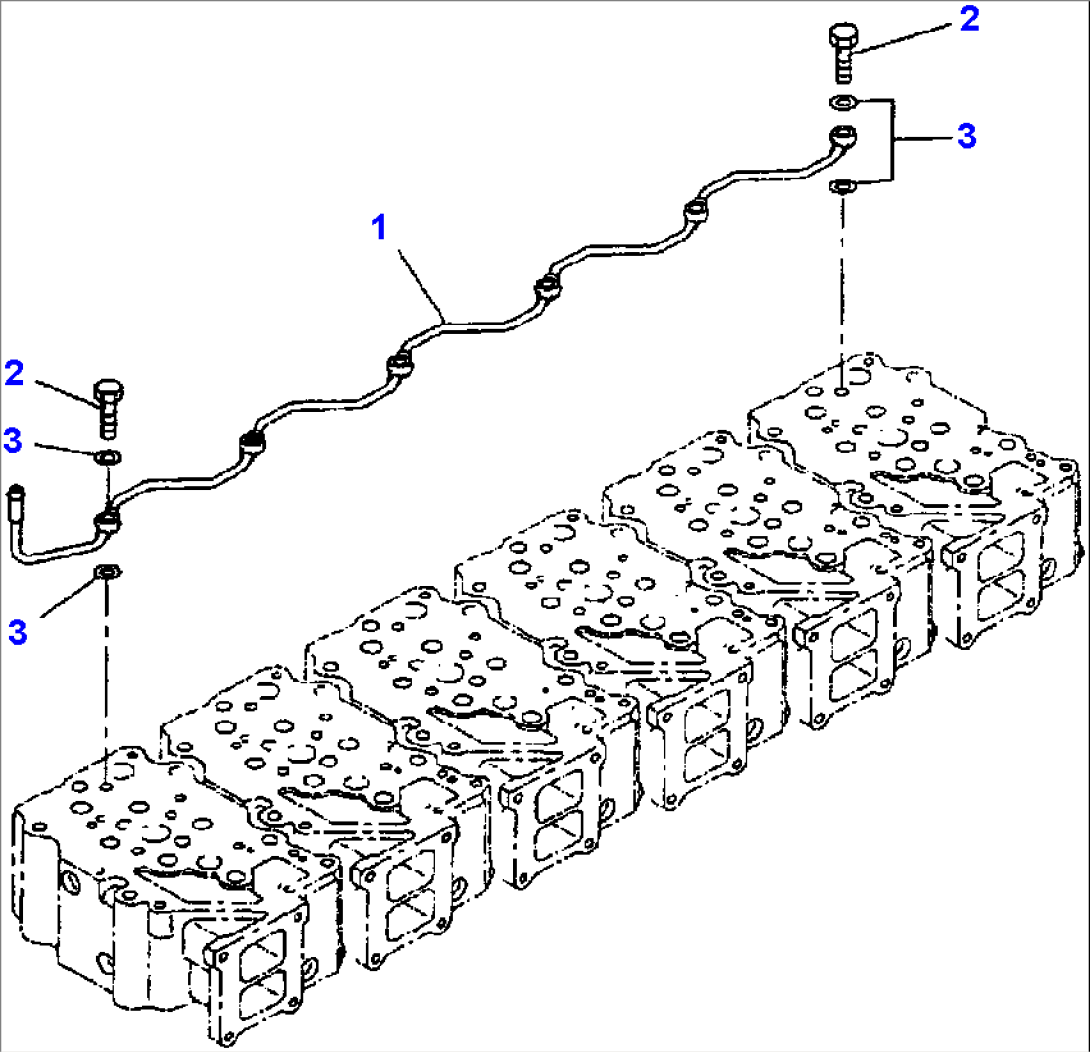

FIG. A5010-B3E7A AIR VENT
