| Item | Part No. | Part Name | Qty | Serial No. |

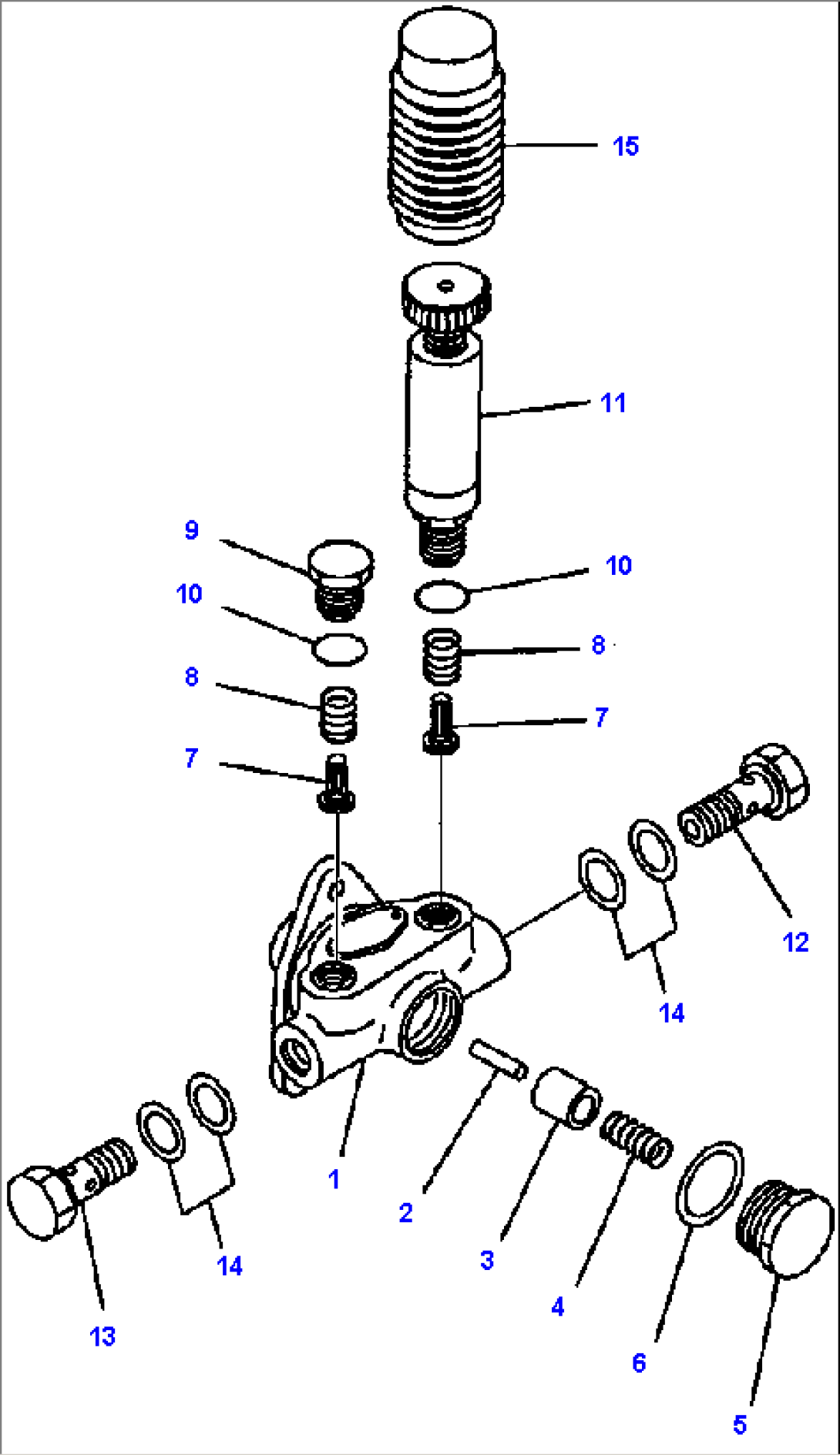

| INJECTION PUMP ASSEMBLY (SEE FIG. A4010-B3T7) | ||||
| DK105217-6090 | FEED PUMP ASSEMBLY | |||
| 1 | DK152061-0020 | HOUSING, FEED PUMP | ||
| 2 | DK152030-0000 | ROD, PUSH | ||
| 3 | DK152100-2301 | PISTON | ||
| 4 | DK152102-1600 | SPRING, PISTON | ||
| 5 | DK152105-1500 | PLUG | ||
| 6 | DK139526-0000 | GASKET | ||
| 7 | DK152115-0500 | VALVE | ||
| 8 | DK152116-0200 | SPRING | ||
| 9 | DK152117-0620 | PLUG | ||
| 10 | DK029631-6060 | O-RING | ||
| 11 | DK152200-6720 | PUMP, PRIMING | ||
| 12 | DK152300-5920 | BOLT, EYE | ||
| 13 | DK029731-4680 | BOLT, EYE | ||
| 14 | DK029341-4130 | GASKET | ||
| 15 | DK152320-0100 | COVER |
