| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02782-10522 | ELBOW | 25001- | |
| 2 | 02896-11015 | O-RING | 25001- | |
| 3 | 07002-12434 | O-RING | 25001- | |
| 4 | 02781-00422 | UNION | 25001- | |
| 5 | 02896-11012 | O-RING | 25001- | |
| 6 | 07002-12034 | O-RING | 25001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D275a 5 s/n 25001 up
- Guard
- Fender (fand drive return piping)(#26076 )
Поиск по каталогу

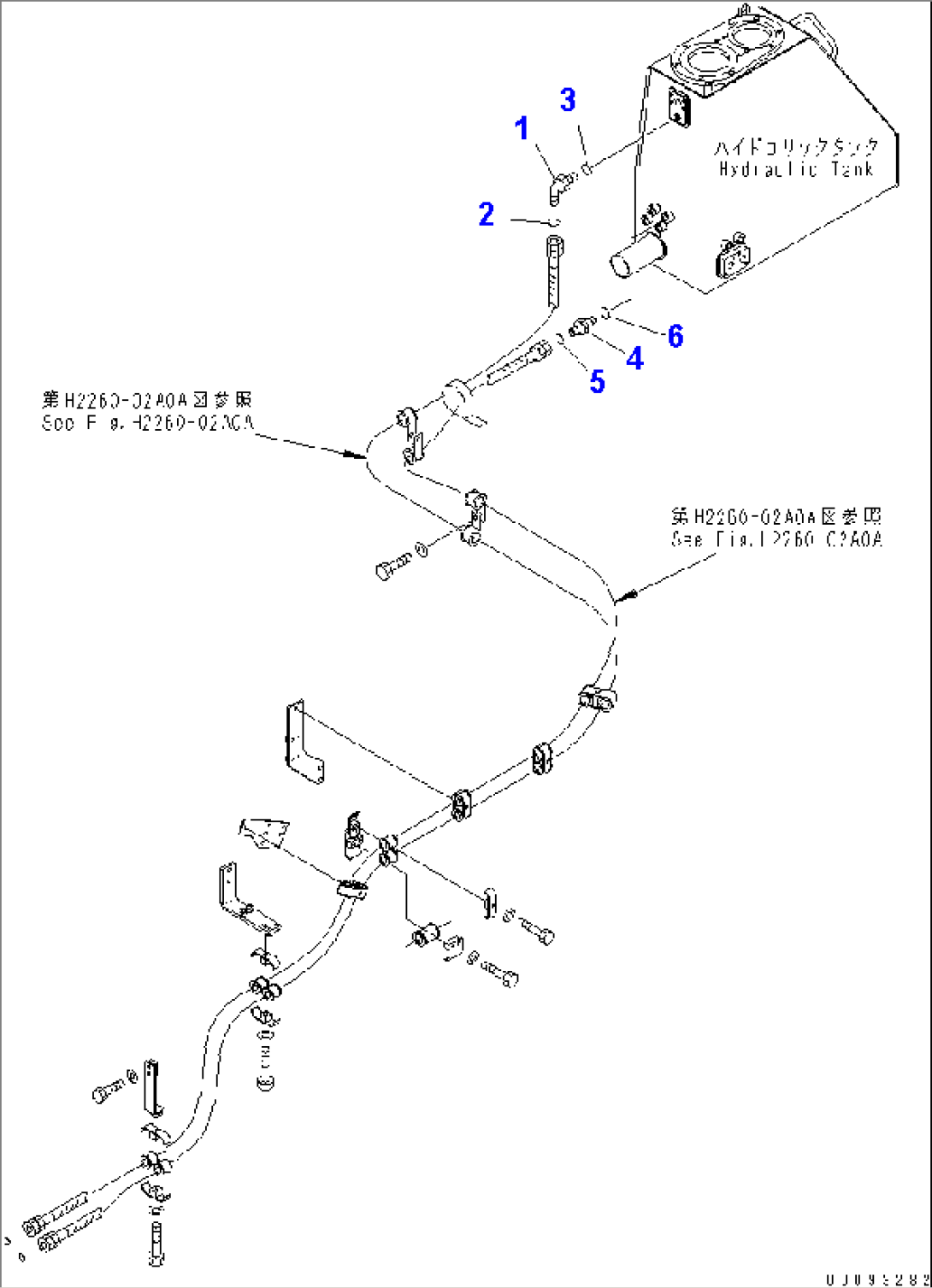

FENDER (FAND DRIVE RETURN PIPING)(#26076-)
