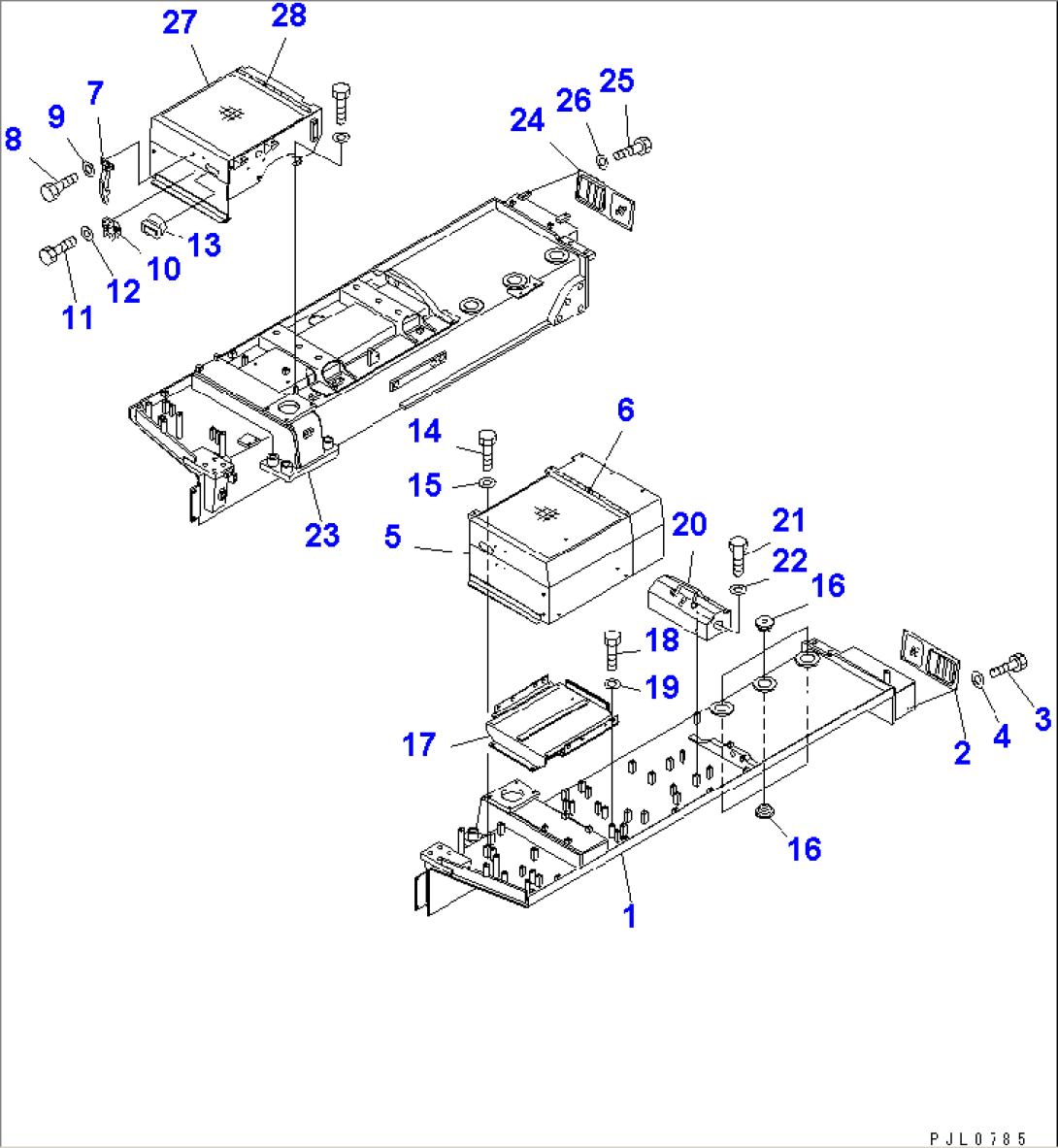

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-54-61142 | FENDER,L.H. | 10733- | |
| 1 | 198-54-56122 | FENDER,L.H. | 10601-10732 | |
| 2 | 195-54-43121 | COVER | 10601- | |
| 3 | 01010-80825 | BOLT | 10601- | |
| 4 | 01643-30823 | WASHER | 10601- | |
| 5 | 198-54-56542 | COVER,L.H. | 10601- | |
| 6 | 198-54-46670 | HINGE (WELDED( | 10601- | |
| 7 | 205-54-76260 | CATCHER | 10644- | |
| 7 | \0\205-54-76530 | CATCHER | 10601-10643 | |
| 8 | 01010-80820 | BOLT | 10601- | |
| 9 | 01643-30823 | WASHER | 10601- | |
| 10 | 205-54-67660 | SUPPORT | 10601- | |
| 11 | 01010-80820 | BOLT | 10601- | |
| 12 | 01643-30823 | WASHER | 10601- | |
| 13 | 209-54-12280 | HANDLE | 10601- | |
| 14 | 01010-81225 | BOLT | 10601- | |
| 15 | 01643-31232 | WASHER | 10601- | |
| 16 | 198-04-51140 | RUBBER | 10601- | |
| 17 | 198-54-56170 | BRACKET | 10601- | |
| 18 | 01010-81230 | BOLT | 10601- | |
| 19 | 01643-31232 | WASHER | 10601- | |
| 20 | 175-98-21171 | TOOL,BOX | 10601- | |
| 21 | 01010-81225 | BOLT | 10601- | |
| 22 | 01643-31232 | WASHER | 10601- | |
| 23 | 198-54-61152 | FENDER,R.H. | 10733- | |
| 23 | 198-54-56132 | FENDER,R.H. | 10601-10732 | |
| 24 | 195-54-43121 | COVER | 10601- | |
| 25 | 01010-80825 | BOLT | 10601- | |
| 26 | 01643-30823 | WASHER | 10601- | |
| 27 | 198-54-61361 | COVER | 10733- | |
| 27 | 198-54-56552 | COVER | 10601-10732 | |
| 28 | 198-54-46670 | HINGE (WELDED) | 10601- |
