| Item | Part No. | Part Name | Qty | Serial No. |
| (708-7W-00130) | MOTOR ASS'Y | 35001- | ||

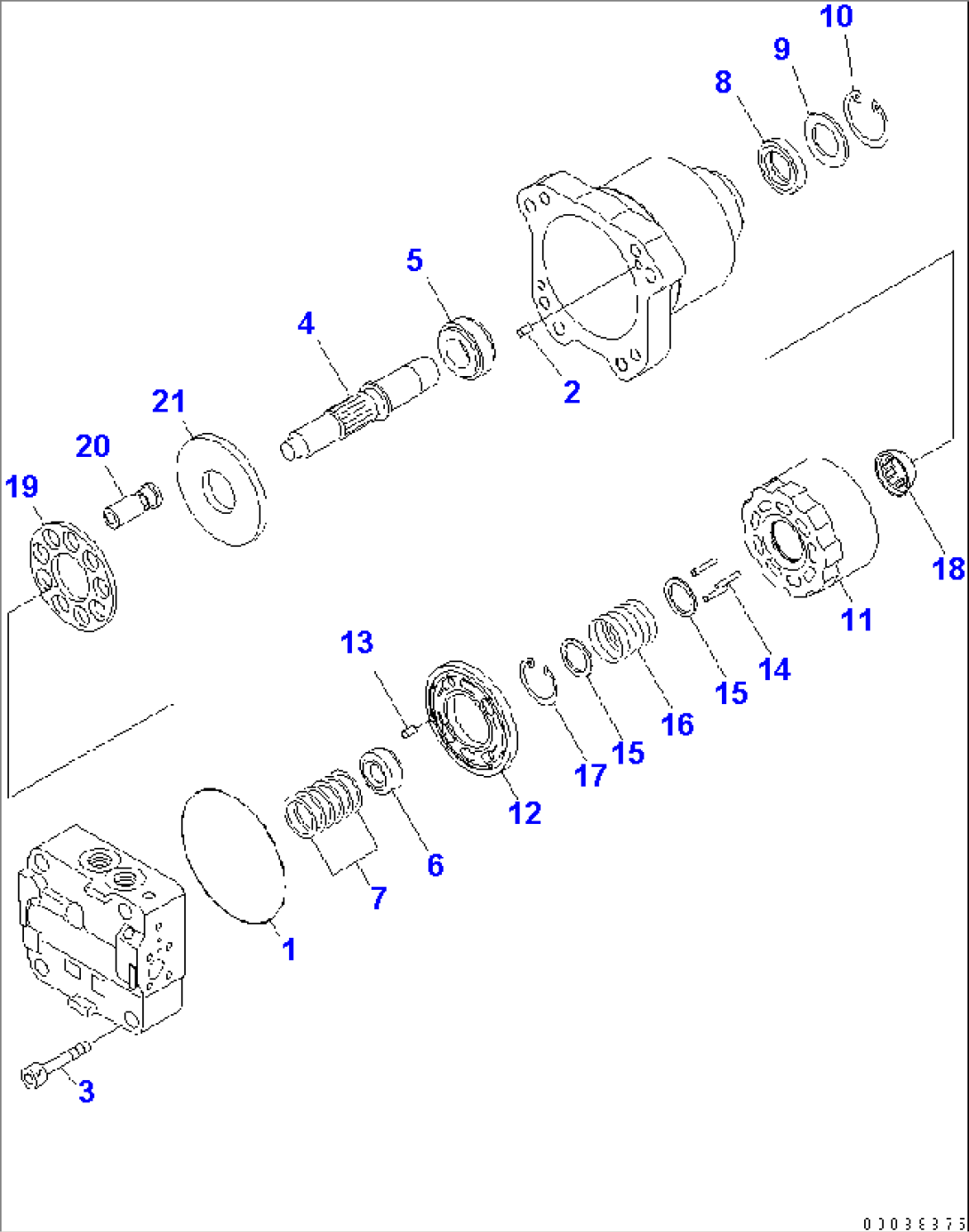

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1642-01A0 TO Y1642-03A0. | ||||
| 1 | 708-7W-11920 | O-RING | 35001- | |
| 2 | 04020-01024 | PIN | 35001- | |
| 3 | 01252-61480 | BOLT | 35001- | |
| 4 | (\7\708-7W-12130) | SHAFT | 35001- | |
| 5 | (\7\708-7W-12140) | BEARING | 35001- | |
| 6 | (\7\708-7W-12150) | BEARING | 35001- | |
| 7 | (\7\708-7L-05010) | SPACER KIT | 35001- | |
| 7 | \6\ | SPACER, 1.5MM | 35001- | |
| 7 | \6\ | SPACER, 1.6MM | 35001- | |
| 7 | \6\ | SPACER, 1.7MM | 35001- | |
| 7 | \6\ | SPACER, 1.8MM | 35001- | |
| 7 | \6\ | SPACER, 1.9MM | 35001- | |
| 7 | \6\ | SPACER, 2.0MM | 35001- | |
| 8 | (\7\708-25-52861) | SEAL,OIL | 35001- | |
| 9 | (\7\708-2L-22160) | SPACER | 35001- | |
| 10 | 04065-06825 | RING | 35001- | |
| 11 | (\7\708-8F-33121) | BLOCK,CYLINDER | 35001- | |
| 12 | (\7\708-8F-33230) | PLATE,VALVE | 35001- | |
| 13 | (\7\720-68-19610) | PIN | 35001- | |
| 14 | (\7\708-8F-33360) | PIN | 35001- | |
| 15 | (\7\708-7L-13140) | SEAT | 35001- | |
| 16 | (\7\708-8F-33160) | SPRING | 35001- | |
| 17 | 04065-04818 | RING | 35001- | |
| 18 | (\7\708-8F-33350) | GUIDE,RETAINER | 35001- | |
| 19 | (\7\708-2L-33350) | RETAINER,SHOE | 35001- | |
| 20 | (\7\708-8F-33310) | PISTON SUB ASS'Y | 35001- | |
| 21 | (\7\708-7F-13420) | PLATE,THRUST | 35001- |
