| Item | Part No. | Part Name | Qty | Serial No. |
| 708-7W-00130 | MOTOR ASS'Y | 30001- | ||

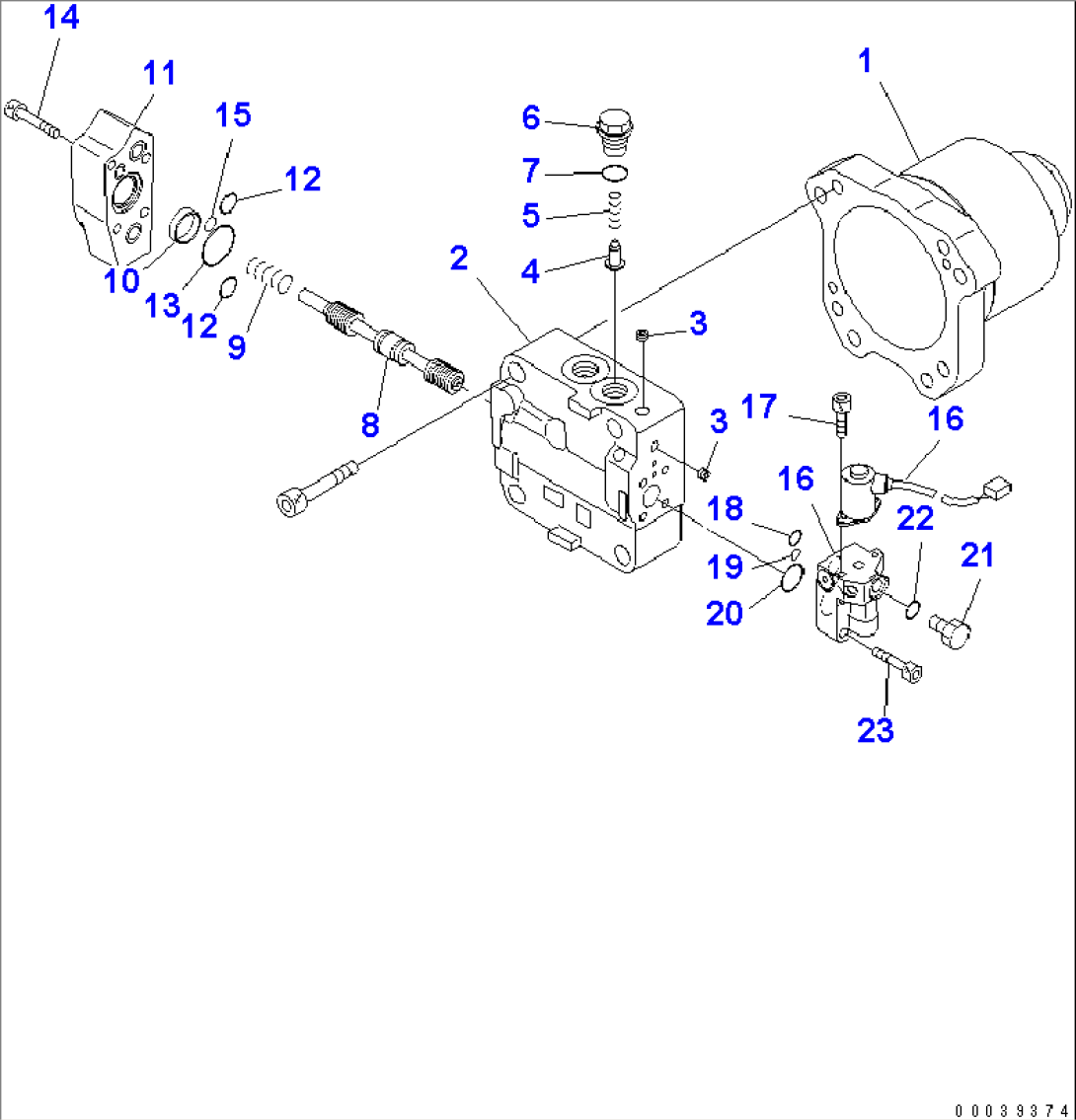

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1642-01A0 TO Y1642-03A0. | ||||
| 1 | (\7\708-7W-11180) | CASE | 30001- | |
| (\7\708-7W-01050) | COVER SUB ASS'Y | 30001- | ||
| 2 | \6\ | COVER,END | 30001- | |
| 3 | \6\ | PLUG | 30001- | |
| 4 | (\7\709-25-11650) | VALVE,CHECK | 30001- | |
| 5 | (\7\709-25-11361) | SPRING | 30001- | |
| 6 | (\7\708-7S-21610) | PLUG | 30001- | |
| 7 | 07002-22434 | O-RING | 30001- | |
| 8 | \6\ | SPOOL | 30001- | |
| 9 | (\7\708-7W-18150) | SPRING | 30001- | |
| 10 | (\7\708-7W-18160) | SPACER | 30001- | |
| 11 | (\7\708-7W-18170) | COVER | 30001- | |
| 12 | 07000-F2016 | O-RING | 30001- | |
| 13 | 07000-F2035 | O-RING | 30001- | |
| 14 | 01252-60845 | BOLT | 30001- | |
| 15 | 07000-F2010 | O-RING | 30001- | |
| 16 | 708-7W-01070 | PILOT VALVE ASS'Y | 30001- | |
| 17 | 01252-60612 | BOLT | 30001- | |
| 18 | 708-7S-18360 | O-RING | 30001- | |
| 19 | 07000-F1008 | O-RING | 30001- | |
| 20 | 708-7S-18230 | O-RING | 30001- | |
| 21 | 07040-11007 | PLUG | 30001- | |
| 22 | 07002-21023 | O-RING | 30001- | |
| 23 | 01252-60835 | BOLT | 30001- |
