| Item | Part No. | Part Name | Qty | Serial No. |
| 708-7S-00550 | MOTOR ASS'Y | 85001- | ||

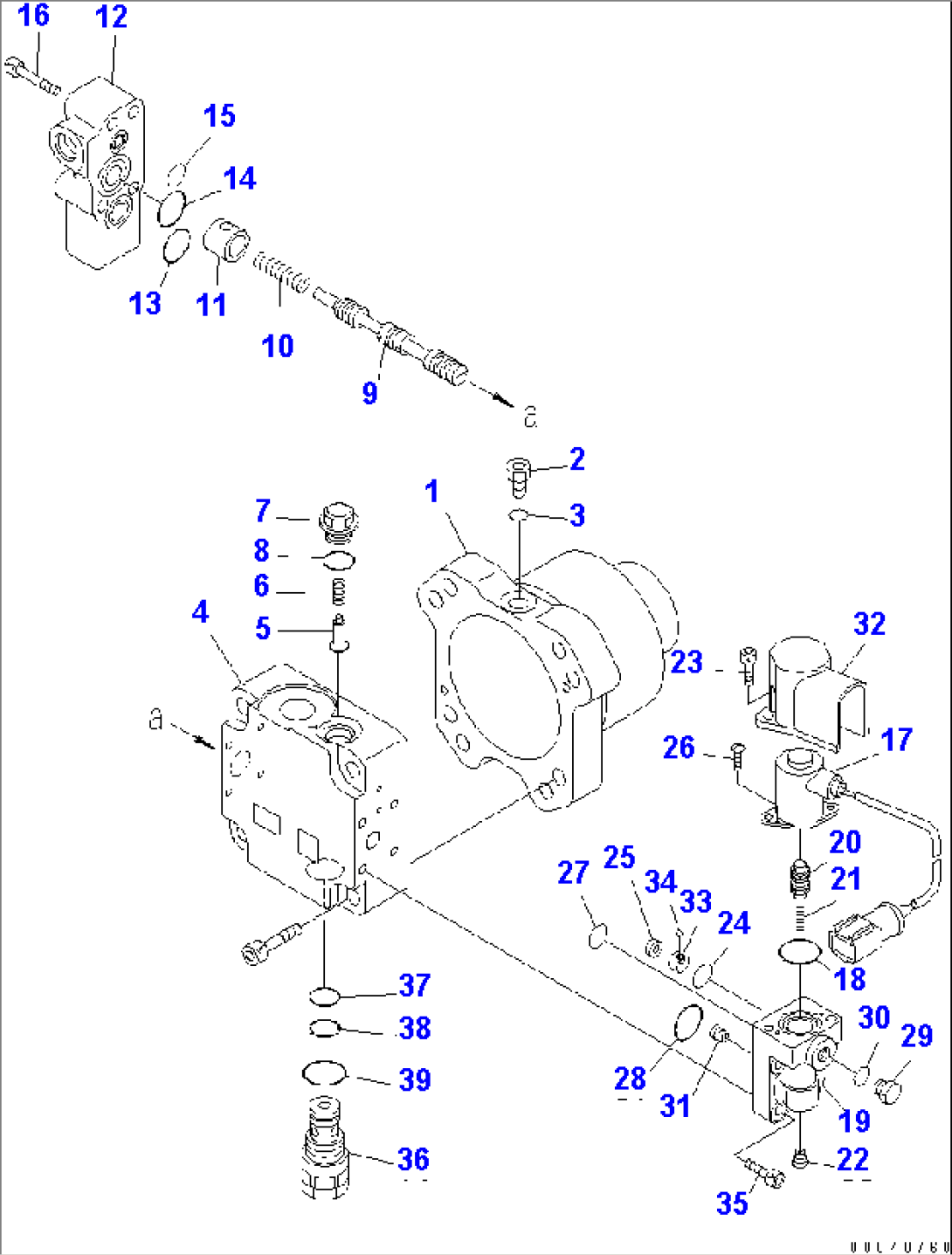

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1642-01A0 AND Y1642-02A0. | ||||
| 1 | (\7\708-7S-11740) | CASE | 85001- | |
| 2 | 07040-11007 | PLUG | 85001- | |
| 3 | 07002-21023 | O-RING | 85001- | |
| (\7\708-7S-01430) | COVER SUB ASS'Y | 85001- | ||
| 4 | \6\ | COVER,END | 85001- | |
| 5 | (\7\708-7R-11210) | VALVE | 85001- | |
| 6 | (\7\722-10-91130) | SPRING | 85001- | |
| 7 | (\7\709-32-12861) | PLUG | 85001- | |
| 8 | 07002-21823 | O-RING | 85001- | |
| 9 | \6\ | SPOOL | 85001- | |
| 10 | (\7\708-7S-18120) | SPRING | 85001- | |
| 11 | (\7\708-7S-18310) | SPACER | 85001- | |
| 12 | (\7\708-7S-18320) | COVER | 85001- | |
| 13 | 07000-E2020 | O-RING | 85001- | |
| 14 | 07000-E2025 | O-RING | 85001- | |
| 15 | 07000-E2012 | O-RING | 85001- | |
| 16 | 01252-60845 | BOLT | 85001- | |
| (\7\708-7S-01440) | PILOT VALVE ASS'Y | 85001- | ||
| 17 | (\7\702-21-56241) | SOLENOID | 85001- | |
| 18 | (\7\702-21-55870) | O-RING | 85001- | |
| 19 | \6\ | CASE | 85001- | |
| 20 | \6\ | SPOOL | 85001- | |
| 21 | (\7\702-21-56220) | SPRING | 85001- | |
| 22 | (\7\708-21-12541) | PLUG | 85001- | |
| 23 | 01252-60616 | BOLT | 85001- | |
| 24 | (\7\708-2L-25490) | O-RING | 85001- | |
| 25 | (\7\708-2L-25480) | FILTER | 85001- | |
| 26 | (\7\702-21-54180) | SCREW | 85001- | |
| 27 | 07000-F1008 | O-RING | 85001- | |
| 28 | (\7\708-7S-18230) | O-RING | 85001- | |
| 29 | 07040-11007 | PLUG | 85001- | |
| 30 | 07002-21023 | O-RING | 85001- | |
| 31 | 708-2L-29460 | ORIFICE | 85001- | |
| 32 | (\7\708-1S-18180) | COVER | 85001- | |
| 33 | 708-7S-18480 | VALVE | 85001- | |
| 34 | \6\ | BALL | 85001- | |
| 35 | 01252-60825 | BOLT | 85001- | |
| 36 | 708-7T-02281 | VALVE ASS'Y,RELIEF | 85177- | |
| 36 | 708-7T-02280 | VALVE ASS'Y,RELIEF | 85001-85176 | |
| 37 | 07000-F2016 | O-RING | 85001- | |
| 38 | 07001-02016 | RING | 85001- | |
| 39 | 07002-12434 | O-RING | 85001- |
