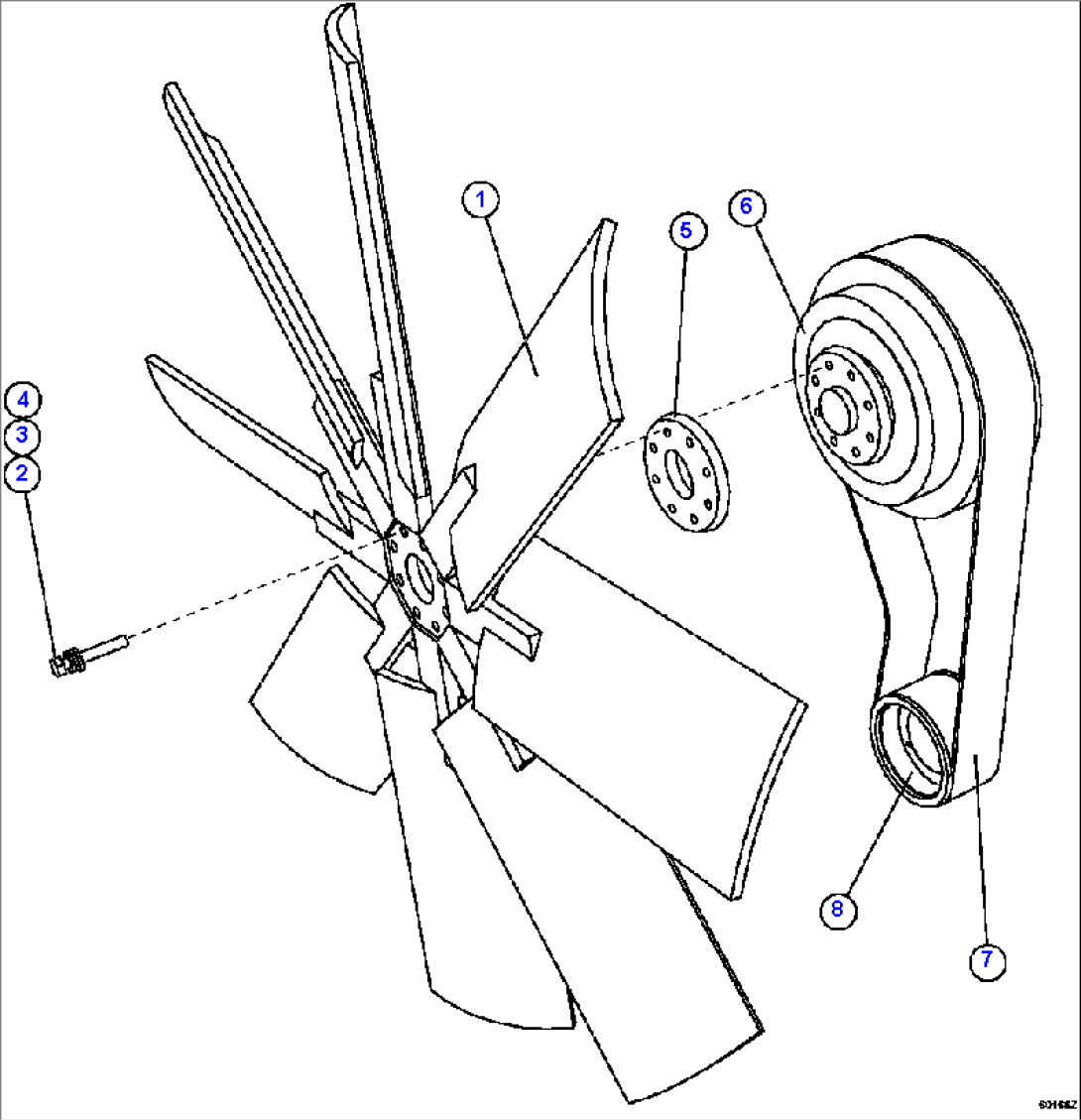

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC0665 | FAN - 84" | ||
| 2 | 01011-81690 | BOLT | ||
| 3 | 01643-31645 | FLAT WASHER - M16 | ||
| 4 | MM0474 | LOCKWASHER - M16 | ||
| 5 | EH3192 | SPACER, FAN | ||
| 6 | XA4485 | CLUTCH, FAN (1) | ||
| 7 | BF4991 | BELT, FAN | ||
| 8 | PULLEY, FAN DRIVE (1) | |||
| NS|9 | NOTE: (1) SUPPLIED WITH ENGINE. |
