| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY ( SEE FIG. F4500-51A0 ) | A35001-- | |||
| OR | ||||
| AXLE ASSEMBLY (LIMITED SLIP DIFFERENTIAL) ( SEE FIG. F4500-51A0 ) | A35001-- | |||

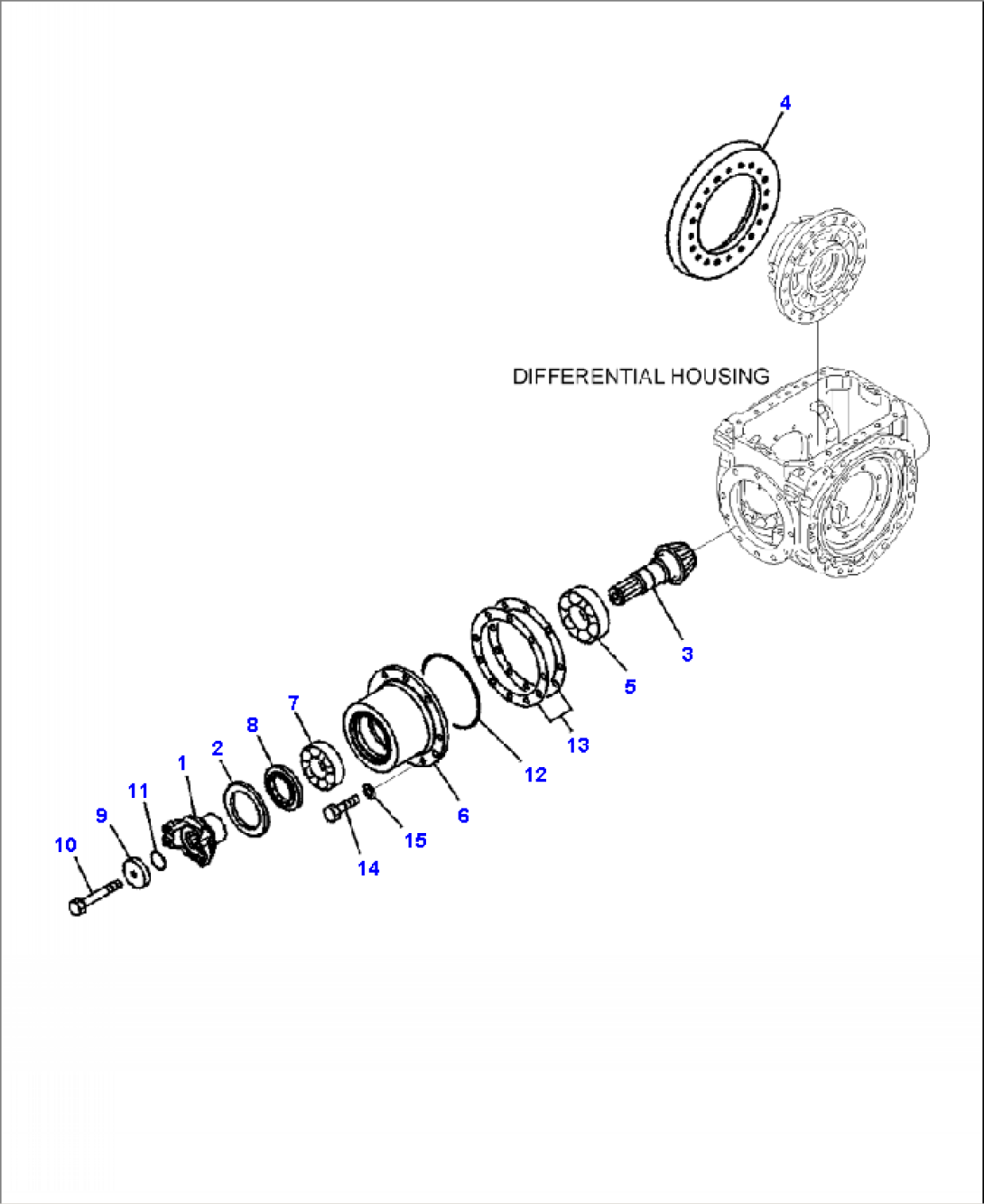

| 419-23-31010 | DIFFERENTIAL ASSEMBLY | A35001-- | ||
| 419-23-31050 | DIFFERENTIAL ASSEMBLY, (LSD) | A35001-- | ||
| 1 | 419-22-31230 | COUPLING | A35001-- | |
| 2 | 418-22-21310 | PROTECTOR | A35001-- | |
| 419-22-21800 | PINION AND GEAR ASSEMBLY | A35001-- | ||
| 3 | (NSS) | PINION | A35001-- | |
| 4 | (NSS) | GEAR, BEVEL | A35001-- | |
| 5 | 419-22-11810 | BEARING | A35001-- | |
| 6 | 419-23-21631 | CAGE | A35001-- | |
| 7 | 419-22-11820 | BEARING | A35001-- | |
| 8 | 418-22-21330 | SEAL, OIL | A35001-- | |
| 9 | 423-22-11240 | HOLDER | A35001-- | |
| 10 | 01011-61615 | BOLT | A35001-- | |
| 11 | 07000-13042 | O-RING | A35001-- | |
| 12 | 07000-15180 | O-RING | A35001-- | |
| 13 | 419-22-11361 | SHIM, 0.05 MM | A35001-- | |
| 419-22-11371 | SHIM, 0.20 MM | A35001-- | ||
| 419-22-11381 | SHIM, 0.30 MM | A35001-- | ||
| 419-22-11391 | SHIM, 0.80 MM | A35001-- | ||
| 14 | 01010-61440 | BOLT | A35001-- | |
| 15 | 01643-31445 | WASHER | A35001-- |
