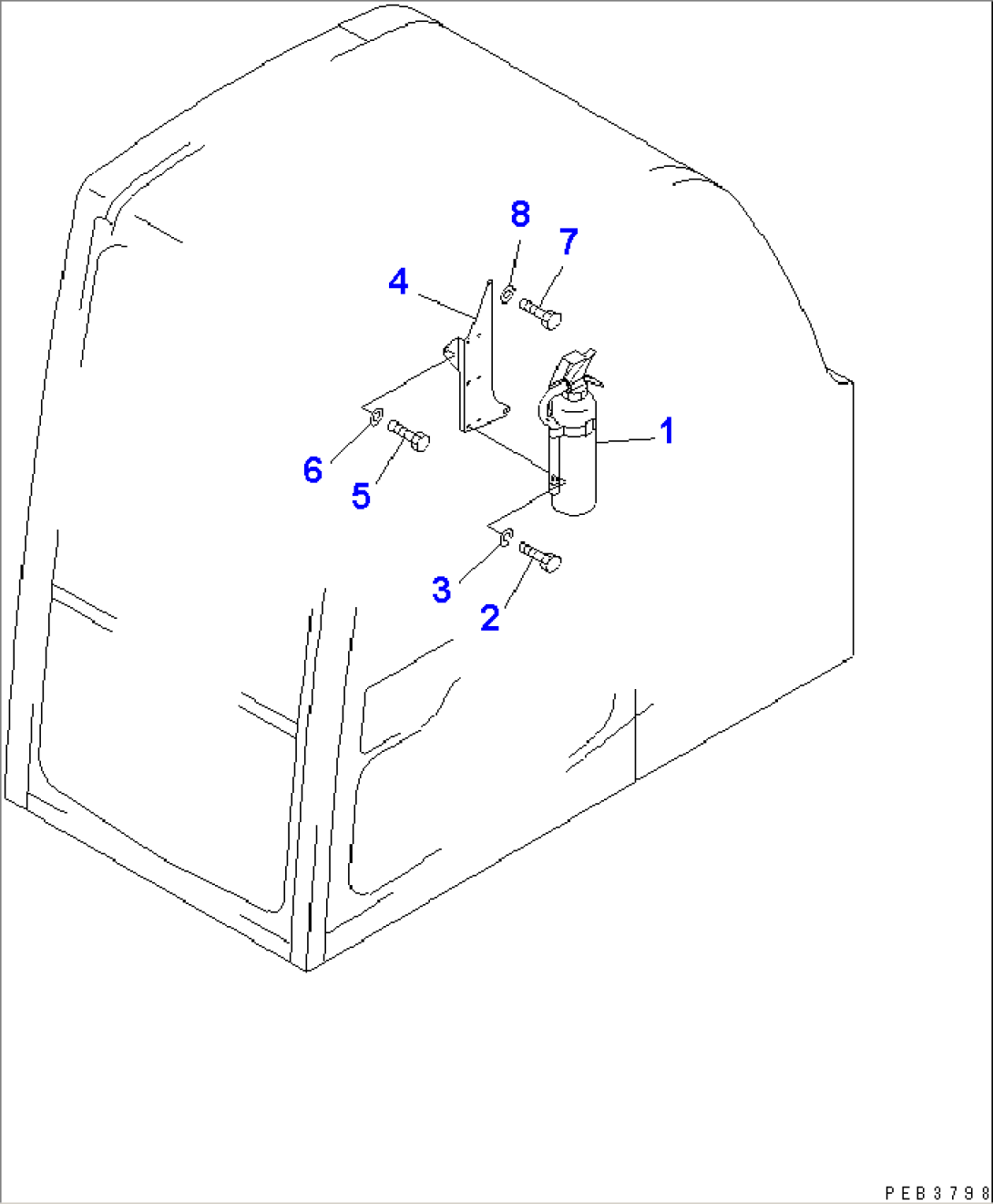

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09495-00010 | EXTINGUISHER | 10233-@ | |
| 2 | 01010-50620 | BOLT | 10233-@ | |
| 3 | 01602-20619 | WASHER | 10233-@ | |
| 4 | 20Y-54-39910 | BRACKET | 10233-12446 | |
| 5 | 01010-50612 | BOLT | 10233-@ | |
| 6 | 01643-30623 | WASHER | 10233-@ | |
| 7 | 01010-51016 | BOLT | 10233-12446 | |
| 8 | 01643-31032 | WASHER | 10233-@ |
