| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09495-00010 | EXTINGUISHER | 30001- | |
| 2 | 01010-80616 | BOLT | 30001- | |
| 3 | 01602-20619 | WASHER | 30001- | |
| 4 | 20Y-54-39920 | BRACKET | 30001- | |
| 5 | 01435-41025 | BOLT | 34032- | |
| 01435-31025 | BOLT | 30001-34031 |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc300lc 6z s/n 30001 up
- Operator's compartment and control system
- Extinguisher (japanese)
Поиск по каталогу

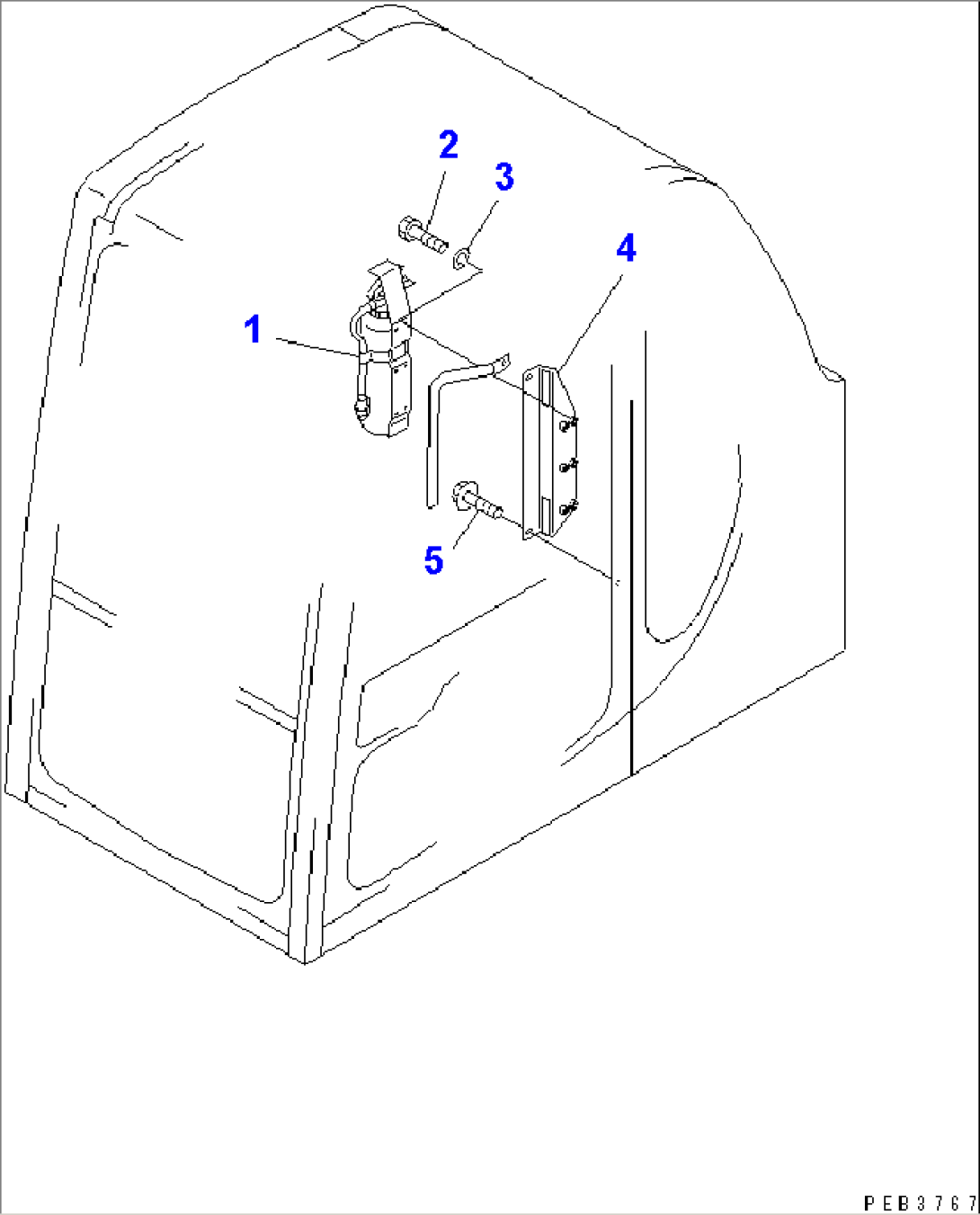

EXTINGUISHER (JAPANESE)
