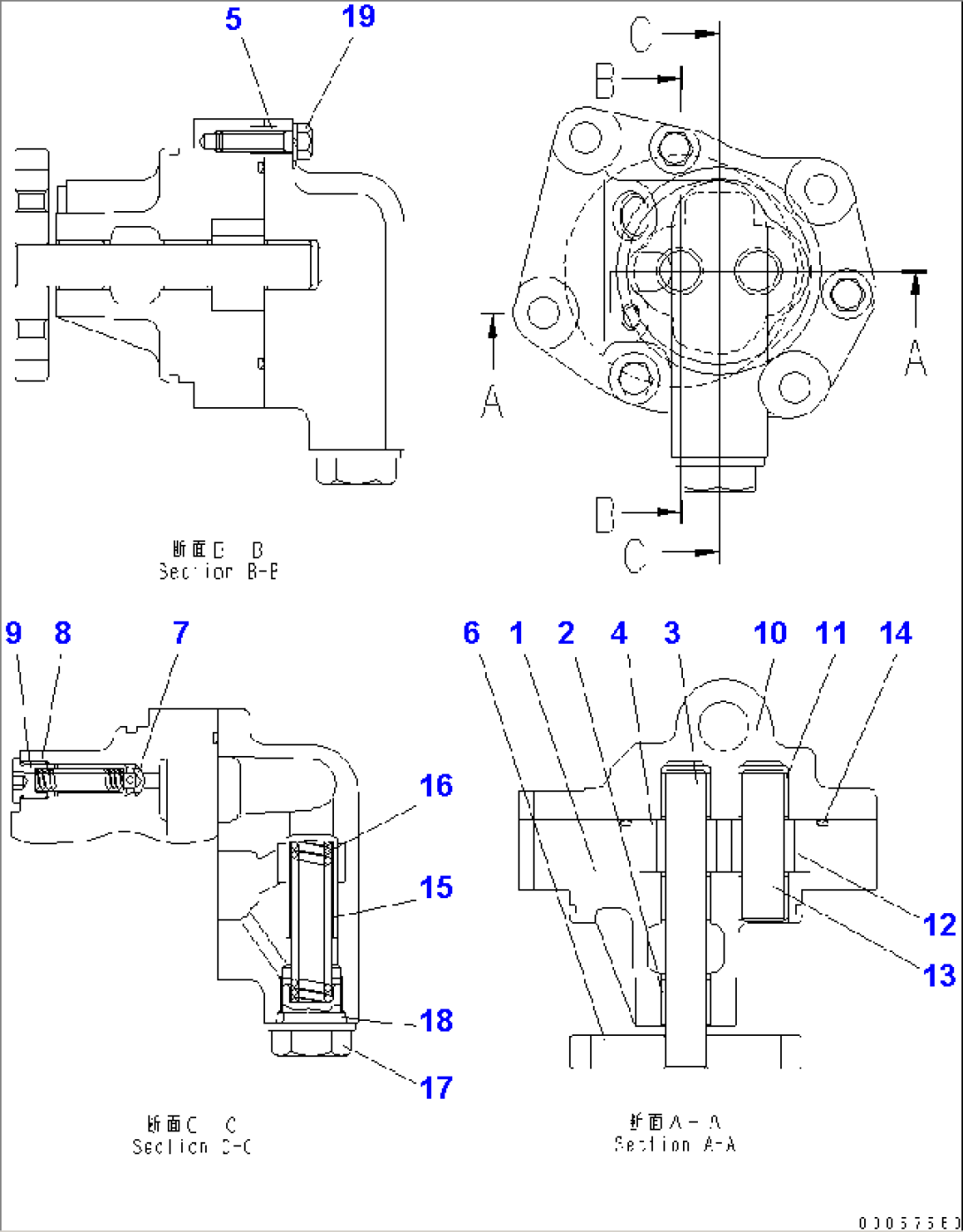

| Item | Part No. | Part Name | Qty | Serial No. |
| 6261-51-9100 | OIL PUMP ASS'Y | 530008- | ||
| PML160-11200 | CASE ASS'Y,GEAR | 530008- | ||
| \6\ | CASE ASS'Y | 530008- | ||
| 1 | \6\ | CASE | 530008- | |
| 2 | \6\ | BUSHING | 530008- | |
| \6\ | GEAR ASS'Y,DRIVE | 530008- | ||
| 3 | \6\ | SHAFT | 530008- | |
| 4 | \6\ | GEAR,DRIVE | 530008- | |
| 5 | \6\ | PIN,DOWEL | 530008- | |
| 6 | \6\ | GEAR,MAIN DRIVE | 530008- | |
| 7 | \6\ | VALVE | 530008- | |
| 8 | \6\ | SPRING,VALVE | 530008- | |
| 9 | \6\ | PLUG | 530008- | |
| PML152-07000 | COVER ASS'Y | 530008- | ||
| 10 | \6\ | COVER | 530008- | |
| 11 | \6\ | BUSHING | 530008- | |
| PML156-07200 | GEAR ASS'Y,DRIVEN | 530008- | ||
| 12 | \6\ | GEAR,DRIVEN | 530008- | |
| 13 | \6\ | SHAFT | 530008- | |
| 14 | PML172-00900 | O-RING | 530008- | |
| 15 | PML136-00201 | VALVE | 530008- | |
| 16 | PML137-01700 | SPRING,VALVE | 530008- | |
| 17 | PML139-01000 | PLUG | 530008- | |
| 18 | 07002-22434 | O-RING | 530008- | |
| 19 | PML199-00210 | BOLT | 530008- |
