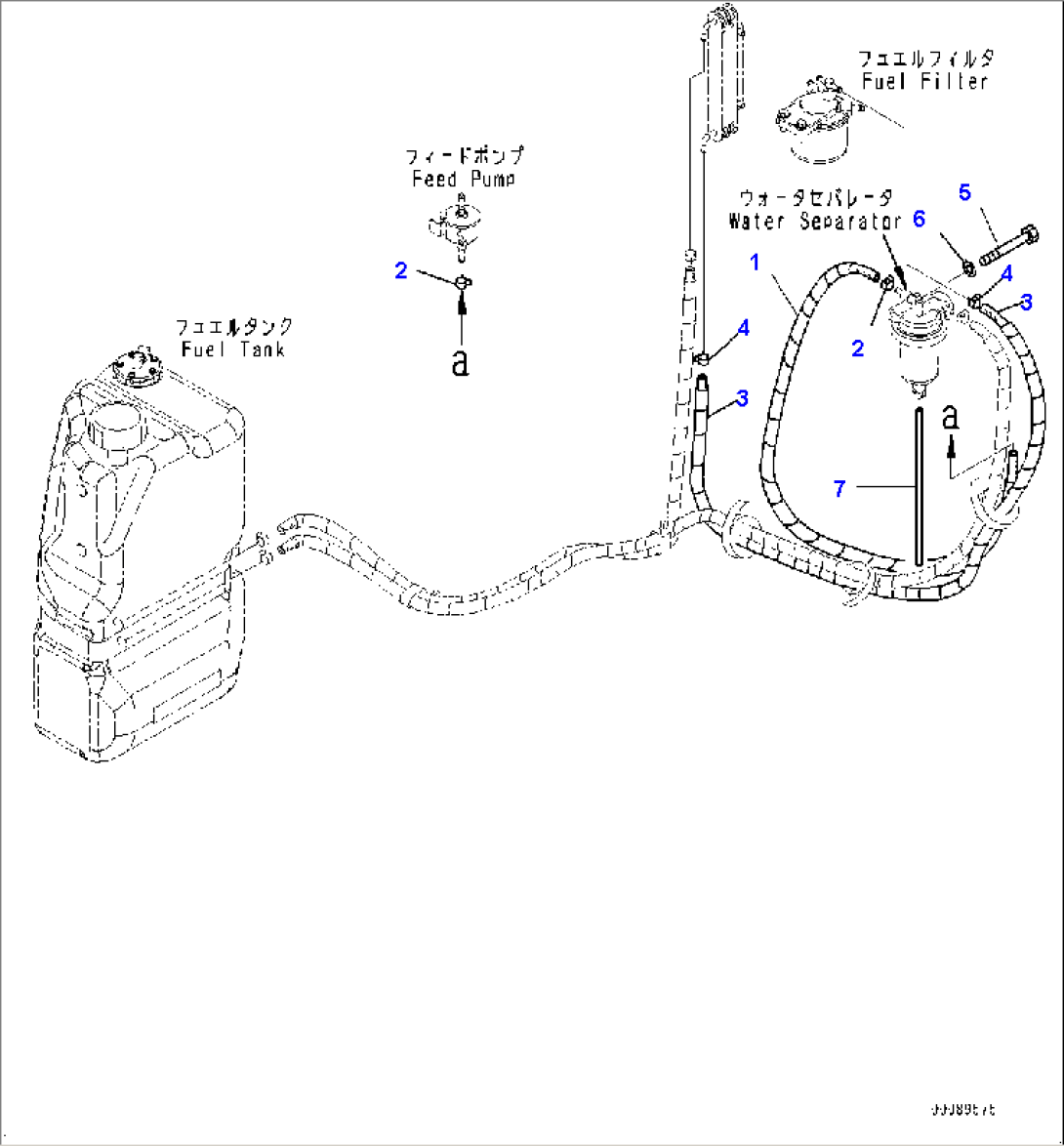

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22F-04-31180 | Hose Assembly | 20509-21128 | |
| 2 | 11Y-09-11130 | Clamp | 20509-21128 | |
| 3 | 22F-04-31151 | Hose Assembly | 20509-21128 | |
| 4 | 11Y-09-11130 | Clamp | 20509-21128 | |
| 5 | 01010-80885 | Bolt | 20509-21128 | |
| 6 | 01643-30823 | Washer | 20509-21128 | |
| 7 | 22L-04-21220 | Hose | 20509-21128 |
