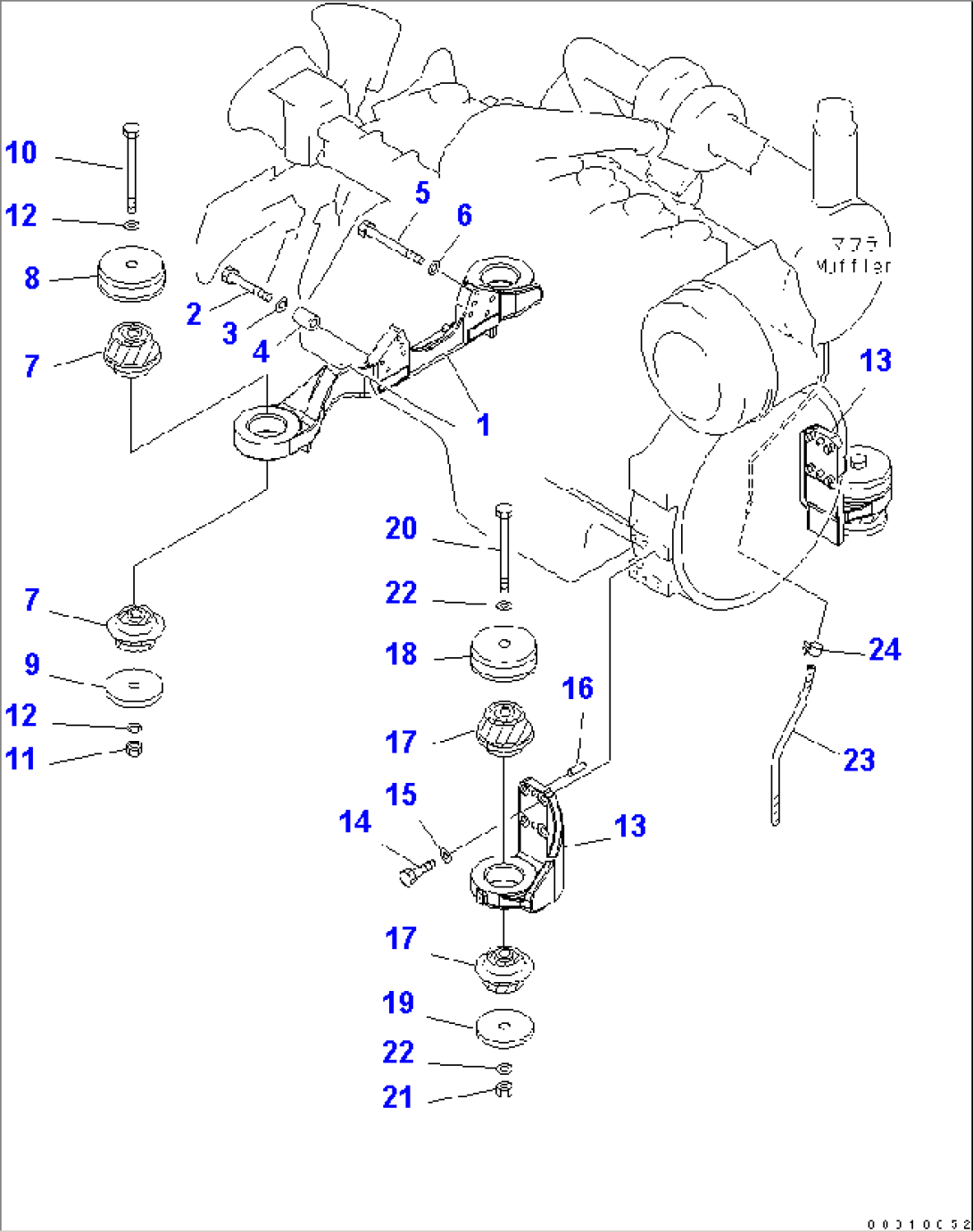

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-01-71111 | BRACKET | A87001- | |
| 2 | 01010-81085 | BOLT | A87001- | |
| 3 | 01643-31032 | WASHER | A87001- | |
| 4 | 6167-21-5910 | SPACER | A87001- | |
| 5 | 01011-81005 | BOLT | A87001- | |
| 6 | 01643-31032 | WASHER | A87001- | |
| 7 | 207-01-35140 | CUSHION | A87001- | |
| 8 | 207-01-61170 | STOPPER | A87001- | |
| 9 | 208-01-11161 | WASHER | A87001- | |
| 10 | 208-01-11181 | BOLT | A87001- | |
| 11 | 01580-02419 | NUT | A87001- | |
| 12 | 01643-32460 | WASHER | A87001- | |
| 13 | 208-01-71120 | BRACKET | A87001- | |
| 14 | 01010-61650 | BOLT | A87001- | |
| 15 | 01643-31645 | WASHER | A87001- | |
| 16 | 04020-01228 | PIN | A87001- | |
| 17 | 207-01-35140 | CUSHION | A87001- | |
| 18 | 207-01-61170 | STOPPER | A87001- | |
| 19 | 208-01-11161 | WASHER | A87001- | |
| 20 | 208-01-11181 | BOLT | A87001- | |
| 21 | 01580-02419 | NUT | A87001- | |
| 22 | 01643-32460 | WASHER | A87001- | |
| 23 | 07260-20950 | HOSE | A87001- | |
| 24 | 07285-00155 | CLIP | A87001- |
