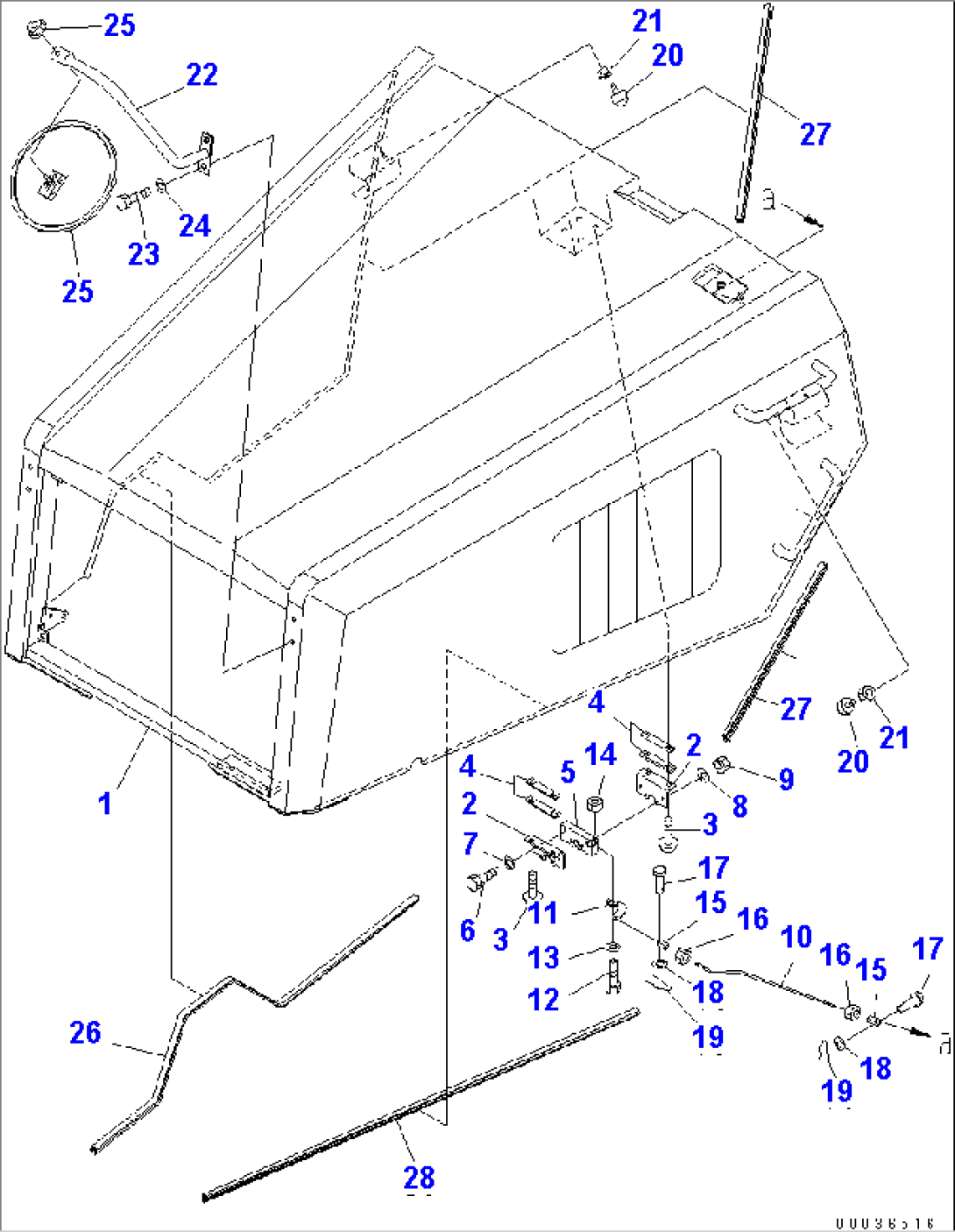

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-54-11113 | HOOD | 1024-1223 | |
| 1 | 421-54-11364 | LOCK ASS'Y WELDED | 1024-1223 | |
| 2 | 56B-54-11550 | PLATE | 1001-1223 | |
| 3 | 01435-00825 | BOLT | 1001-1223 | |
| 4 | 56B-54-11640 | SHIM, 2.3MM | 1001-@ | |
| 4 | 56B-54-11650 | SHIM, 4.5MM | 1001-@ | |
| 5 | 56B-54-11540 | LOCK ASS'Y | 1001-1223 | |
| 6 | 01010-80640 | BOLT | 1001-1223 | |
| 7 | 01643-30623 | WASHER | 1001-1223 | |
| 8 | 01643-30623 | WASHER | 1001-1223 | |
| 9 | 01580-10605 | NUT | 1001-1223 | |
| 10 | 56D-54-11530 | ROD | 1001-@ | |
| 11 | 56B-54-11660 | PLATE | 1001-@ | |
| 12 | 01010-80625 | BOLT | 1001-1223 | |
| 13 | 01643-30623 | WASHER | 1001-@ | |
| 14 | 01580-10605 | NUT | 1001-1223 | |
| 15 | 1B0-43-16140 | YOKE | 1001-@ | |
| 16 | 01580-10806 | NUT | 1001-@ | |
| 17 | 04205-10622 | PIN | 1001-@ | |
| 18 | 01640-20610 | WASHER | 1001-@ | |
| 19 | 04052-10633 | PIN,SNAP | 1001-@ | |
| 20 | 09453-00002 | STOPPER | 1001-1223 | |
| 21 | 01580-11210 | NUT | 1001-@ | |
| 22 | 56B-54-11512 | STAY | 1001-1223 | |
| 23 | 01010-81225 | BOLT | 1001-1223 | |
| 24 | 01643-31232 | WASHER | 1001-1223 | |
| 25 | 23S-54-36270 | MIRROR | 1001-@ | |
| 26 | 56B-54-11350 | SEAL | 1001-@ | |
| 27 | 56D-54-11380 | SEAL | 1001-1223 | |
| 28 | 56B-54-11390 | SEAL | 1001-1223 |
