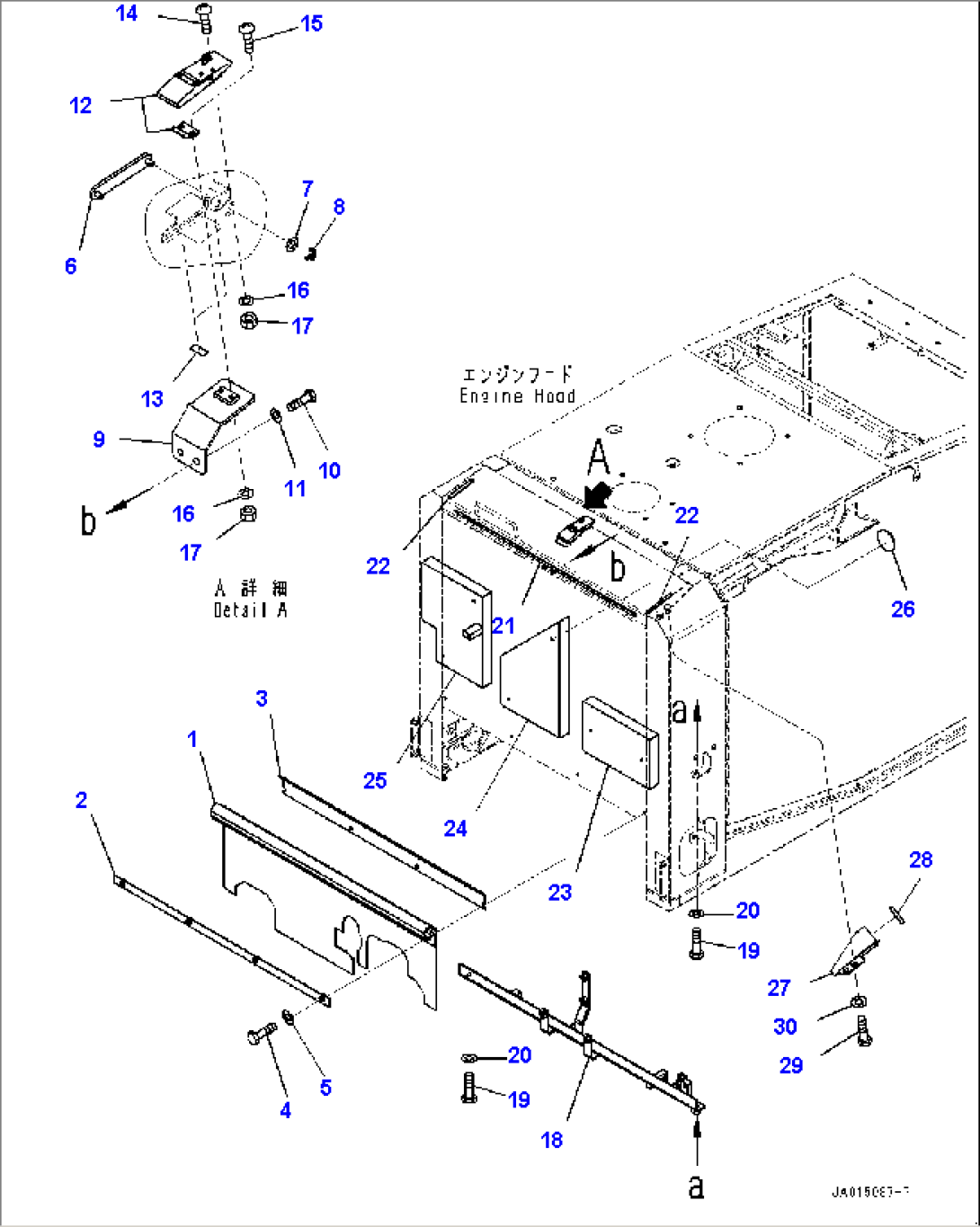

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-51590 | Sheet | 80001- | |
| 2 | 417-54-51610 | Bracket | 80001- | |
| 3 | 417-54-51621 | Plate | 80001- | |
| 4 | 01010-80830 | Bolt | 80001- | |
| 5 | 01643-30823 | Washer | 80001- | |
| 6 | 418-54-31832 | Plate | 80001- | |
| 7 | 01643-30623 | Washer | 80001- | |
| 8 | 04050-11612 | Pin, Cotter | 80001- | |
| 9 | 417-54-51800 | Bracket | 80001- | |
| 10 | 01010-80816 | Bolt | 80001- | |
| 11 | 01643-30823 | Washer | 80001- | |
| 12 | 421-09-12322 | Holder | 80001- | |
| 13 | 421-09-21420 | Sheet | 80001- | |
| 14 | 01023-10414 | Screw | 80001- | |
| 15 | 01023-10420 | Screw | 80001- | |
| 16 | 01640-20408 | Washer | 80001- | |
| 17 | 01580-60403 | Nut | 80001- | |
| 18 | 417-54-51270 | Bracket | 80001- | |
| 19 | 01010-81025 | Bolt | 80001- | |
| 20 | 01643-31032 | Washer | 80001- | |
| 21 | 417-54-51860 | Seal | 80001- | |
| 22 | 416-S14-4110 | Seal | 80001- | |
| 23 | 417-54-52311 | Sheet | 80001- | |
| 24 | 417-54-52321 | Sheet | 80001- | |
| 25 | 417-54-52331 | Sheet | 80001- | |
| 26 | 124-A62-1920 | Cap | 80001- | |
| 27 | 417-54-51210 | Plate | 80001- | |
| 28 | 417-54-51340 | Seal | 80001- | |
| 29 | 01010-80816 | Bolt | 80001- | |
| 30 | 01643-30823 | Washer | 80001- |
