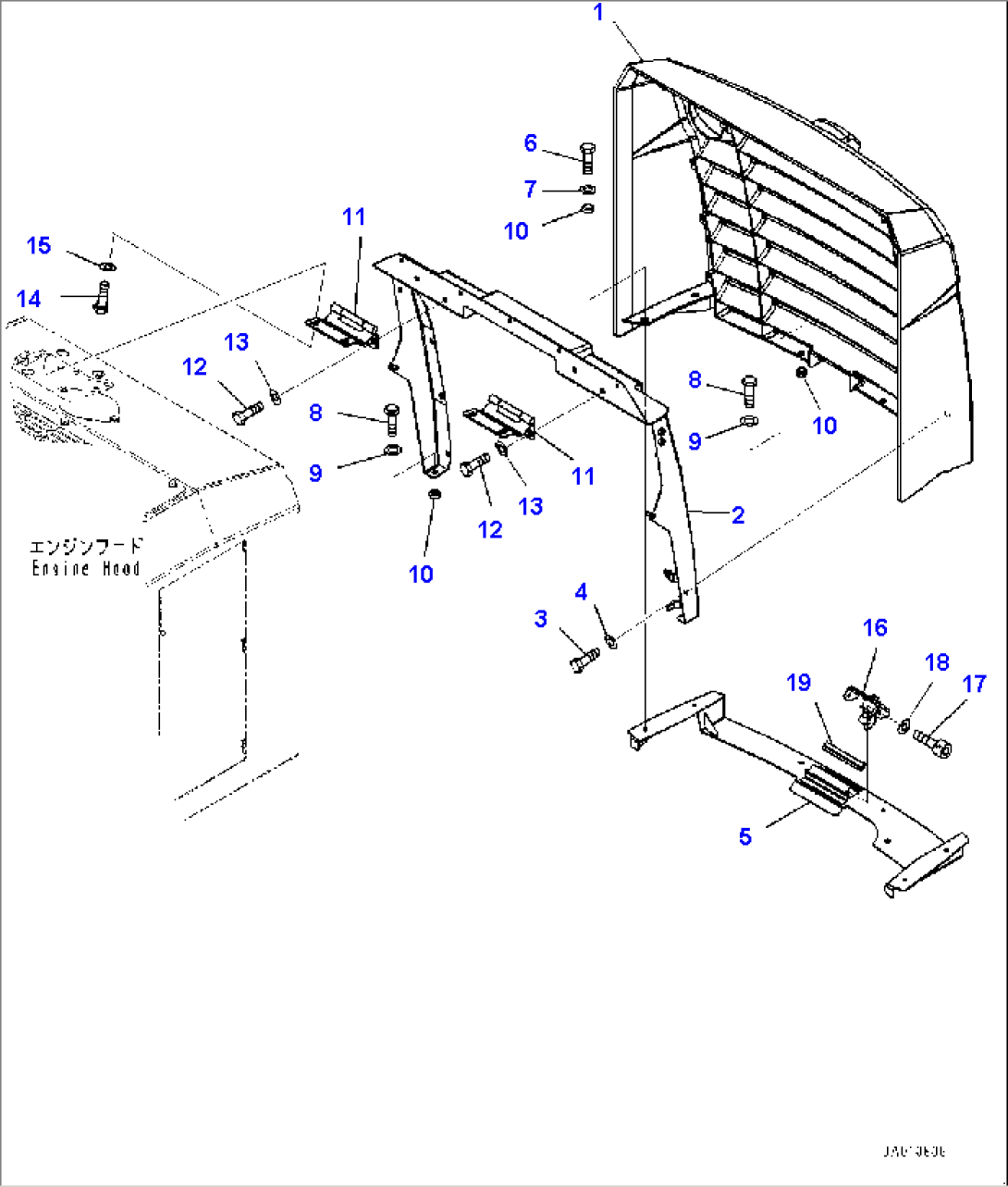

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-54-51140 | Grille | 80001- | |
| 2 | 419-54-52540 | Bracket | 80986- | |
| 2 | 419-54-51150 | Bracket | 80001-80985 | |
| 3 | 01010-80816 | Bolt | 80001- | |
| 4 | 01643-30823 | Washer | 80001- | |
| 5 | 419-54-51161 | Bracket | 80377- | |
| 5 | 419-54-51160 | Bracket | 80001-80376 | |
| 6 | 01010-D0820 | Bolt | 80309- | |
| 7 | 01643-70823 | Washer | 80309- | |
| 8 | 01010-D0820 | Bolt | 80309- | |
| 9 | 418-54-35450 | Washer | 80001- | |
| 10 | 418-54-31970 | Spacer | 80001- | |
| 11 | 419-54-51170 | Hinge | 80001- | |
| 12 | 01010-81025 | Bolt | 80001- | |
| 13 | 01643-31032 | Washer | 80001- | |
| 14 | 01010-81225 | Bolt | 80001- | |
| 15 | 01643-31232 | Washer | 80001- | |
| 16 | 416-54-41580 | Lock Assembly | 80001- | |
| 17 | 01252-A0816 | Bolt, Hexagon Socket Head | 80001- | |
| 18 | 01643-30823 | Washer | 80001- | |
| 19 | 426-56-21320 | Seal | 80001- |
