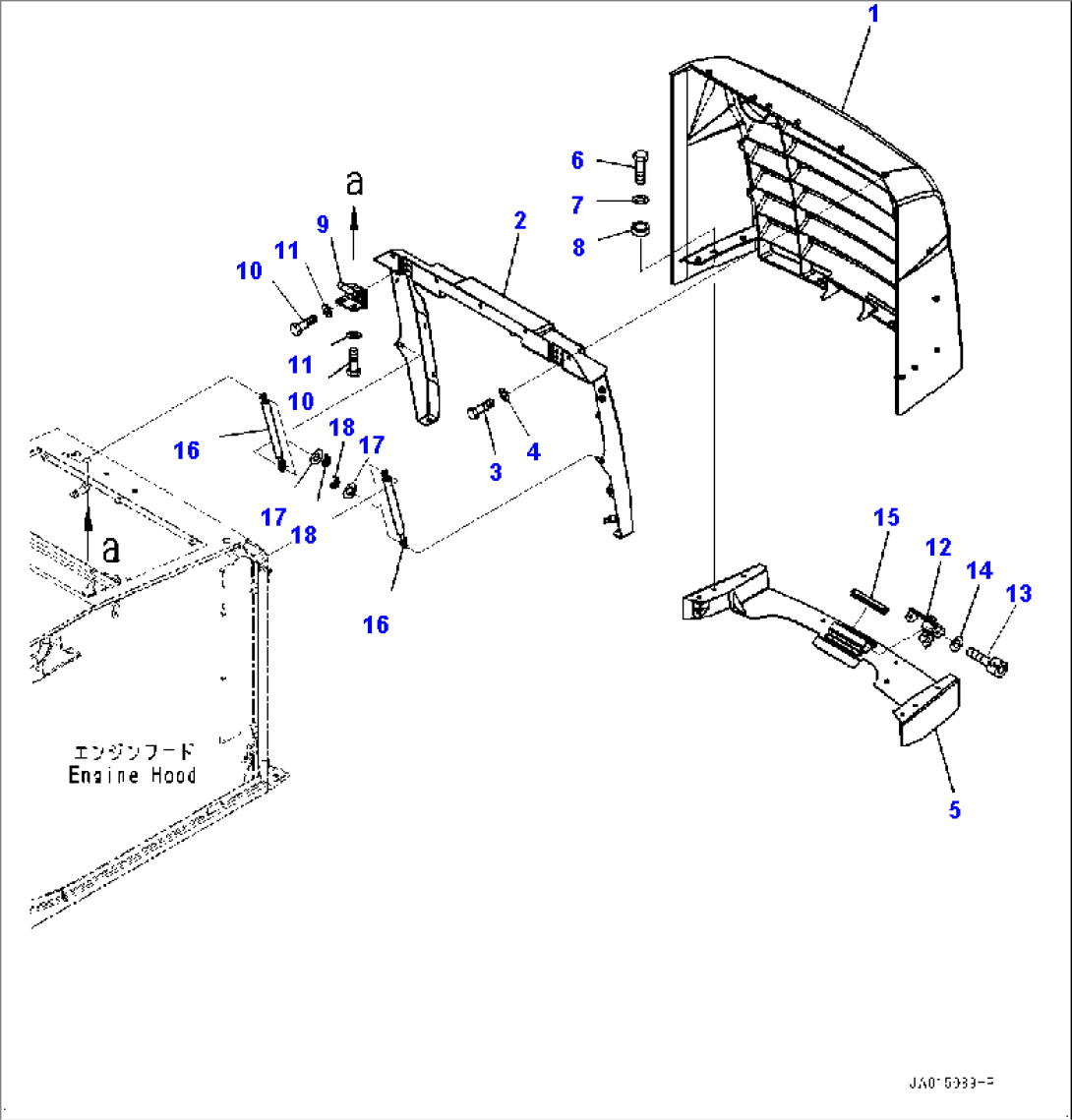

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-54-51141 | Grille | 80001- | |
| 2 | 417-54-51850 | Bracket | 80001- | |
| 3 | 01010-80820 | Bolt | 80001- | |
| 4 | 01643-30823 | Washer | 80001- | |
| 5 | 417-54-51160 | Bracket | 80001- | |
| 6 | 01010-D0820 | Bolt | 80001- | |
| 7 | 418-54-35450 | Washer | 80001- | |
| 8 | 418-54-31970 | Spacer | 80001- | |
| 9 | 417-54-54751 | Hinge | 80001- | |
| 10 | 01010-81020 | Bolt | 80001- | |
| 11 | 01643-31032 | Washer | 80001- | |
| 12 | 416-54-41580 | Lock Assembly | 80001- | |
| 13 | 01252-70816 | Bolt | 80001- | |
| 14 | 01643-30823 | Washer | 80001- | |
| 15 | 426-56-21320 | Seal | 80001- | |
| 16 | 418-Z96-3130 | Spring, Gas | 80001- | |
| 17 | 01640-20816 | Washer | 80001- | |
| 18 | 04050-12015 | Pin, Cotter | 80001- |
