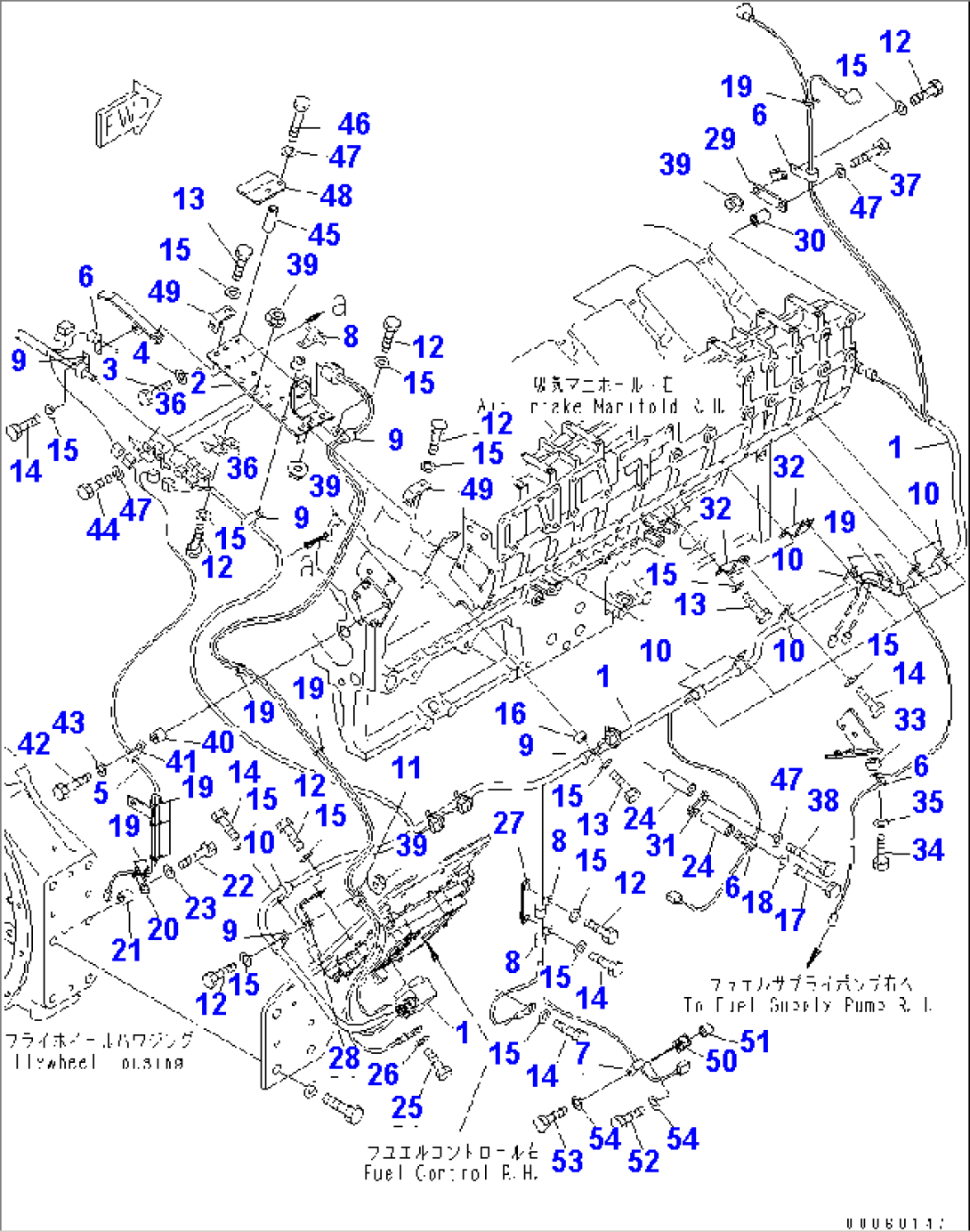

Item | Part No. | Part Name | Qty | Serial No. |
1 | 6219-81-8770 | WIRING HARNESS | 500181- | |
2 | 6219-81-8220 | BRACKET | 500181- | |
3 | 01010-81225 | BOLT | 500181- | |
4 | 01643-31232 | WASHER | 500181- | |
5 | 6219-81-8130 | WIRING HARNESS | 500181- | |
6 | 600-051-2060 | CLIP | 500181- | |
7 | 600-051-2080 | CLIP | 500181- | |
8 | 600-051-2100 | CLIP | 500181- | |
9 | 600-051-2160 | CLIP | 500181- | |
10 | 600-051-2140 | CLIP | 500181- | |
11 | 600-051-2180 | CLIP | 500181- | |
12 | 01010-81025 | BOLT | 500181- | |
13 | 01010-81030 | BOLT | 500181- | |
14 | 01010-81020 | BOLT | 500181- | |
15 | 01643-31032 | WASHER | 500181- | |
16 | 6131-12-5920 | SPACER | 500181- | |
17 | 01010-81085 | BOLT | 500181- | |
18 | 01643-31032 | WASHER | 500181- | |
19 | 6218-81-8480 | BAND | 500181- | |
20 | 6219-81-7860 | BRACKET | 500181- | |
21 | 6152-11-4970 | SPACER | 500181- | |
22 | 01010-81045 | BOLT | 500181- | |
23 | 01643-31032 | WASHER | 500181- | |
24 | 6204-81-9560 | SPACER | 500181- | |
25 | 01010-80816 | BOLT | 500181- | |
26 | 01643-30823 | WASHER | 500181- | |
27 | 6212-65-6390 | PLATE | 500181- | |
28 | 6207-65-8410 | STAY | 500181- | |
29 | 6152-15-4660 | PLATE | 500181- | |
30 | 6166-11-5391 | SPACER | 500181- | |
31 | 6212-85-2440 | BRACKET | 500181- | |
32 | 6219-81-7851 | BRACKET | 500721- | |
32 | \0\6219-81-7850 | BRACKET | 500181-500720 | |
33 | 6131-12-5920 | SPACER | 500181- | |
34 | 01010-81035 | BOLT | 500181- | |
35 | 01643-31032 | WASHER | 500181- | |
36 | 08193-20010 | CLIP | 500181- | |
37 | 01010-81060 | BOLT | 500181- | |
38 | 01011-81000 | BOLT | 500181- | |
39 | 01584-01008 | NUT | 500181- | |
40 | 6144-85-6680 | SPACER | 500181- | |
41 | 600-051-3120 | CLIP | 500181- | |
42 | 01010-81255 | BOLT | 500181- | |
43 | 01643-31232 | WASHER | 500181- | |
44 | 01010-81016 | BOLT | 500181- | |
45 | 6164-91-6290 | SPACER | 500181- | |
46 | 01010-81085 | BOLT | 500181- | |
47 | 01643-31032 | WASHER | 500181- | |
48 | 6219-81-8780 | COVER | 500181- | |
49 | 6215-51-5870 | BRACKET | 500181- | |
50 | 426-06-11570 | BRACKET | 500181- | |
51 | 6152-11-4970 | SPACER | 500181- | |
52 | 01010-81040 | BOLT | 500181- | |
53 | 01010-81016 | BOLT | 500181- | |
54 | 01643-31032 | WASHER | 500181- |
