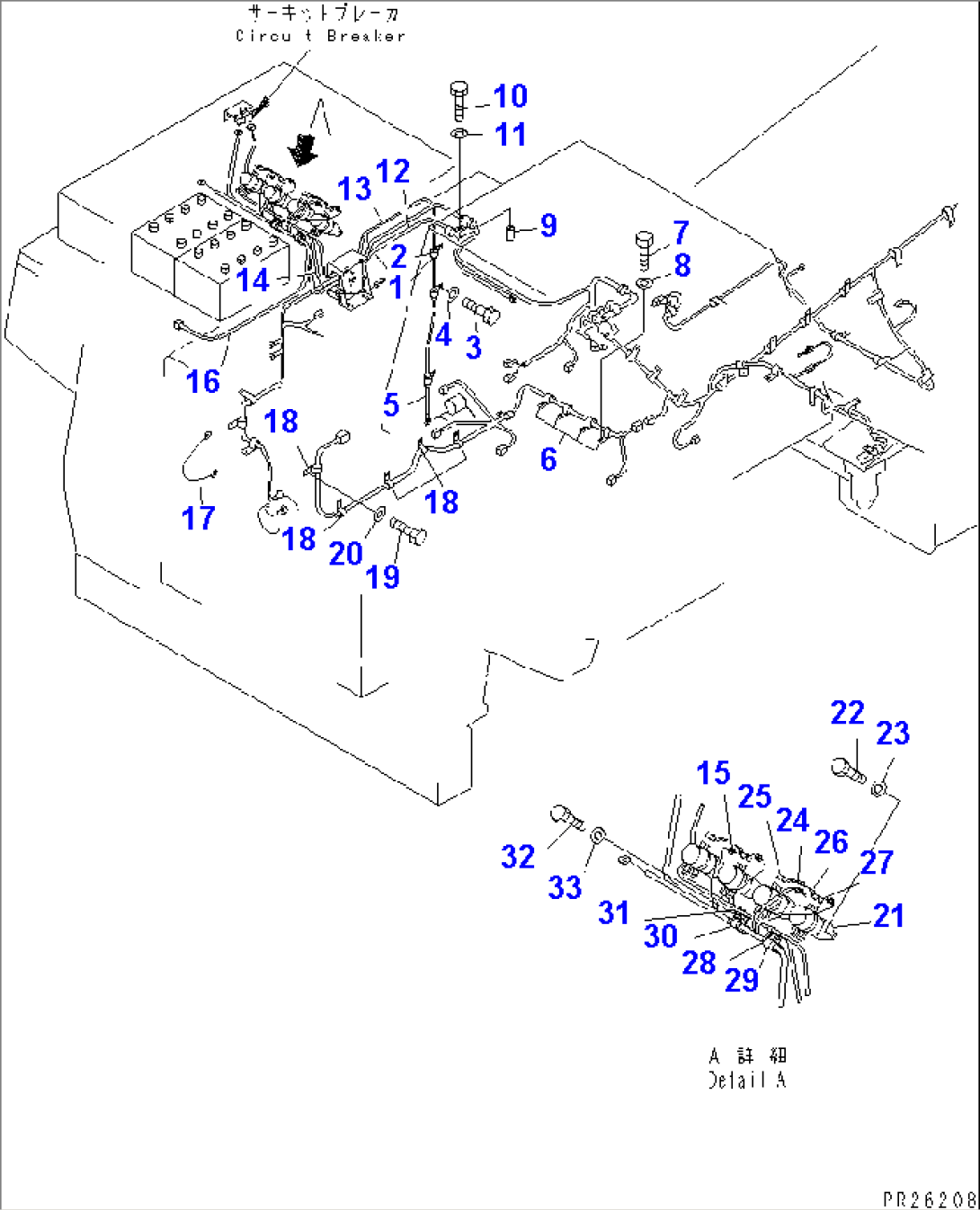

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-06-41290 | INSULATOR | 1013- | |
| 2 | 08036-02514 | CLIP | 1013- | |
| 3 | 01010-81016 | BOLT | 1013- | |
| 4 | 01643-31032 | WASHER | 1013- | |
| 5 | 08028-65225 | CABLE | 1013- | |
| 6 | 08036-01414 | CLIP | 1013- | |
| 7 | 01010-81220 | BOLT | 1013- | |
| 8 | 01643-31232 | WASHER | 1013- | |
| 9 | 6143-11-4290 | SPACER | 1013- | |
| 10 | 01010-81070 | BOLT | 1013- | |
| 11 | 01643-31032 | WASHER | 1013- | |
| 12 | 08028-45125 | CABLE | 1013- | |
| 13 | 08028-65125 | CABLE | 1013- | |
| 14 | 569-06-62561 | WIRING HARNESS | 1126- | |
| 14 | 569-06-62560 | WIRING HARNESS | 1013-1125 | |
| 15 | 08037-02512 | GROMMET | 1013- | |
| 16 | 569-06-62570 | WIRING HARNESS | 1013- | |
| 17 | 568-06-12181 | CABLE | 1013- | |
| 18 | 08036-01014 | CLIP | 1013- | |
| 19 | 01010-81016 | BOLT | 1013- | |
| 20 | 01643-31032 | WASHER | 1013- | |
| 21 | 08088-30000 | SWITCH | 1117- | |
| 21 | \0\08088-40000 | RELAY | 1013-1116 | |
| 22 | 01010-80830 | BOLT | 1013- | |
| 23 | 01643-30823 | WASHER | 1013- | |
| 24 | 08028-65011 | WIRE, 110MM | 1013- | |
| 25 | 08038-00035 | CAP | 1013- | |
| 26 | 08028-45011 | CABLE | 1013- | |
| 27 | 08038-00035 | CAP | 1013- | |
| 28 | 566-06-41290 | INSULATOR | 1013- | |
| 29 | 08036-02514 | CLIP | 1013- | |
| 30 | 08036-01814 | CLIP | 1013- | |
| 31 | 08036-01414 | CLIP | 1013- | |
| 32 | 01010-81020 | BOLT | 1013- | |
| 33 | 01643-31032 | WASHER | 1013- |
