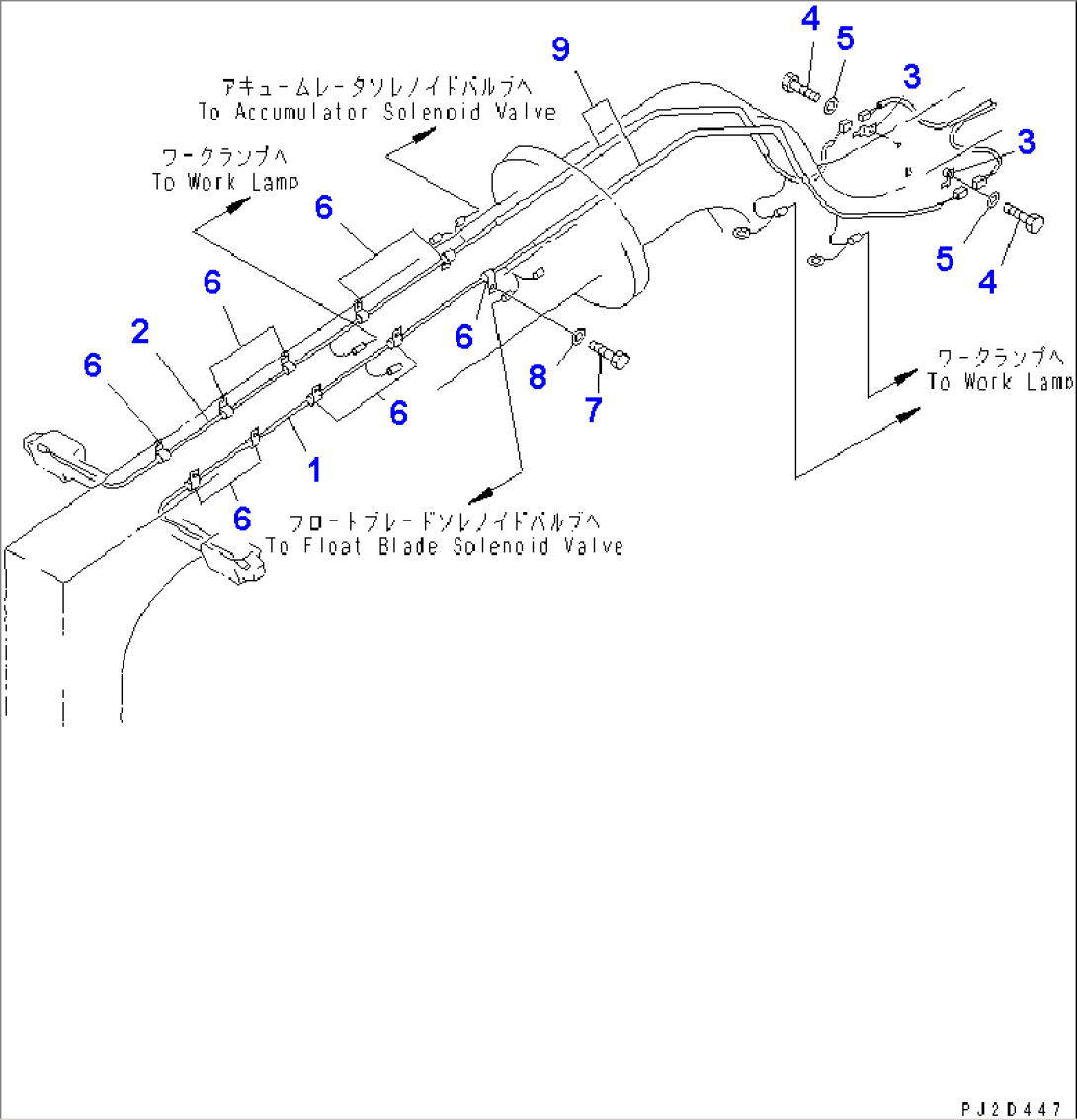

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 235-06-36490 | WIRE ASS'Y,FRONT¤ L.H. | 12099- | |
| 2 | 235-06-36480 | WIRE ASS'Y,FRONT¤ R.H. | 12099- | |
| 3 | 08193-31012 | CLIP | 12102- | |
| 4 | 01010-81016 | BOLT | 12102- | |
| 5 | 01643-31032 | WASHER | 11001- | |
| 6 | 08036-01014 | CLIP | 12102- | |
| 7 | 01010-81016 | BOLT | 12102- | |
| 8 | 01643-31032 | WASHER | 12102- | |
| 9 | 235-06-35190 | TUBE (WELDED) | 11001- |
