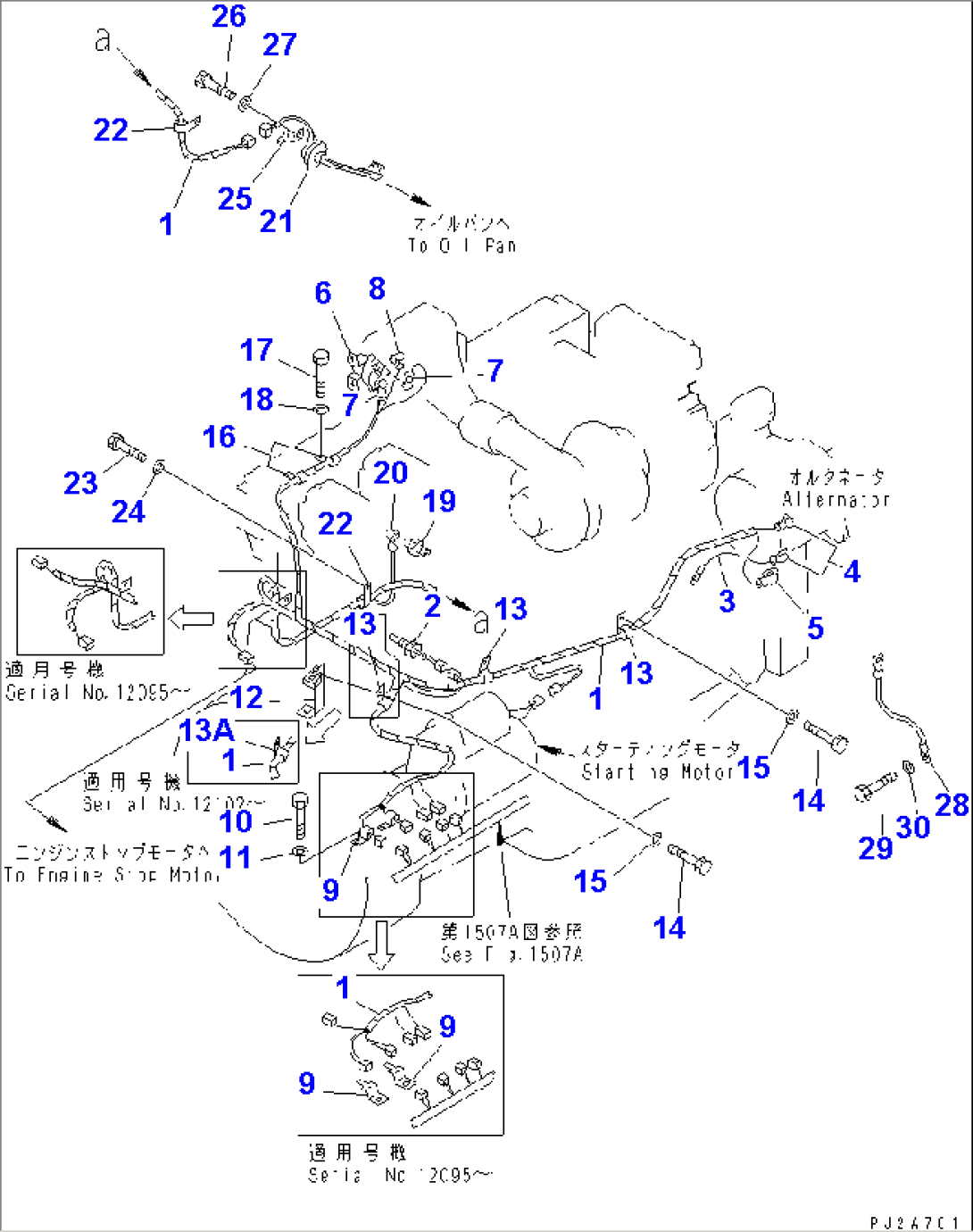

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 235-06-36540 | HARNESS | 12099- | |
| 235-06-31142 | HARNESS | 12095-12098 | ||
| 235-06-31141 | HARNESS | 11001-12094 | ||
| 2 | 7861-92-3320 | SENSOR,WATER TEMPERATURE | 11001- | |
| 3 | 235-06-11190 | WIRE | 11001- | |
| 4 | 08038-00519 | CAP | 11001- | |
| 5 | 08038-02027 | CAP | 11001- | |
| 6 | (600-815-2170) | SWITCH | 11001- | |
| 7 | 08038-02027 | CAP | 11001- | |
| 8 | 08038-00218 | CAP | 11001- | |
| 9 | 08193-21012 | CLIP | 12095- | |
| 08036-01814 | CLIP | 11001-12094 | ||
| 10 | 01010-81016 | BOLT | .- | |
| \0\01010-51016 | BOLT | 11001-. | ||
| 11 | 01643-31032 | WASHER | 11001- | |
| 12 | 235-06-31150 | BRACKET | 11001- | |
| 13 | 08036-02514 | CLIP | 12102- | |
| 08036-02514 | CLIP | 11001-12101 | ||
| 13A | 04434-51010 | CLIP | 12102- | |
| 14 | 01010-51016 | BOLT | 11001- | |
| 15 | 01643-31032 | WASHER | 11001- | |
| 16 | 08036-01814 | CLIP | 11001- | |
| 17 | 01010-50812 | BOLT | 11001- | |
| 18 | 01643-30823 | WASHER | 11001- | |
| 19 | 08073-00505 | SWITCH | 11001- | |
| 20 | 08038-00519 | CAP | 11001- | |
| 21 | 7861-92-4210 | SENSOR,ENGINE OIL LEVEL | 11001- | |
| 22 | 08036-01014 | CLIP | 11001- | |
| 23 | 01010-51016 | BOLT | 11001- | |
| 24 | 01643-31032 | WASHER | 11001- | |
| 25 | 08053-01510 | CLIP | 11001-12101 | |
| 26 | 01010-51016 | BOLT | 11001-12101 | |
| 27 | 01643-31032 | WASHER | 11001-12101 | |
| 28 | 08028-14045 | WIRE¤ 450MM | 11001- | |
| 29 | 01010-81016 | BOLT | .- | |
| \0\01010-51016 | BOLT | 11001-. | ||
| 30 | 01643-31032 | WASHER | 11001- |
