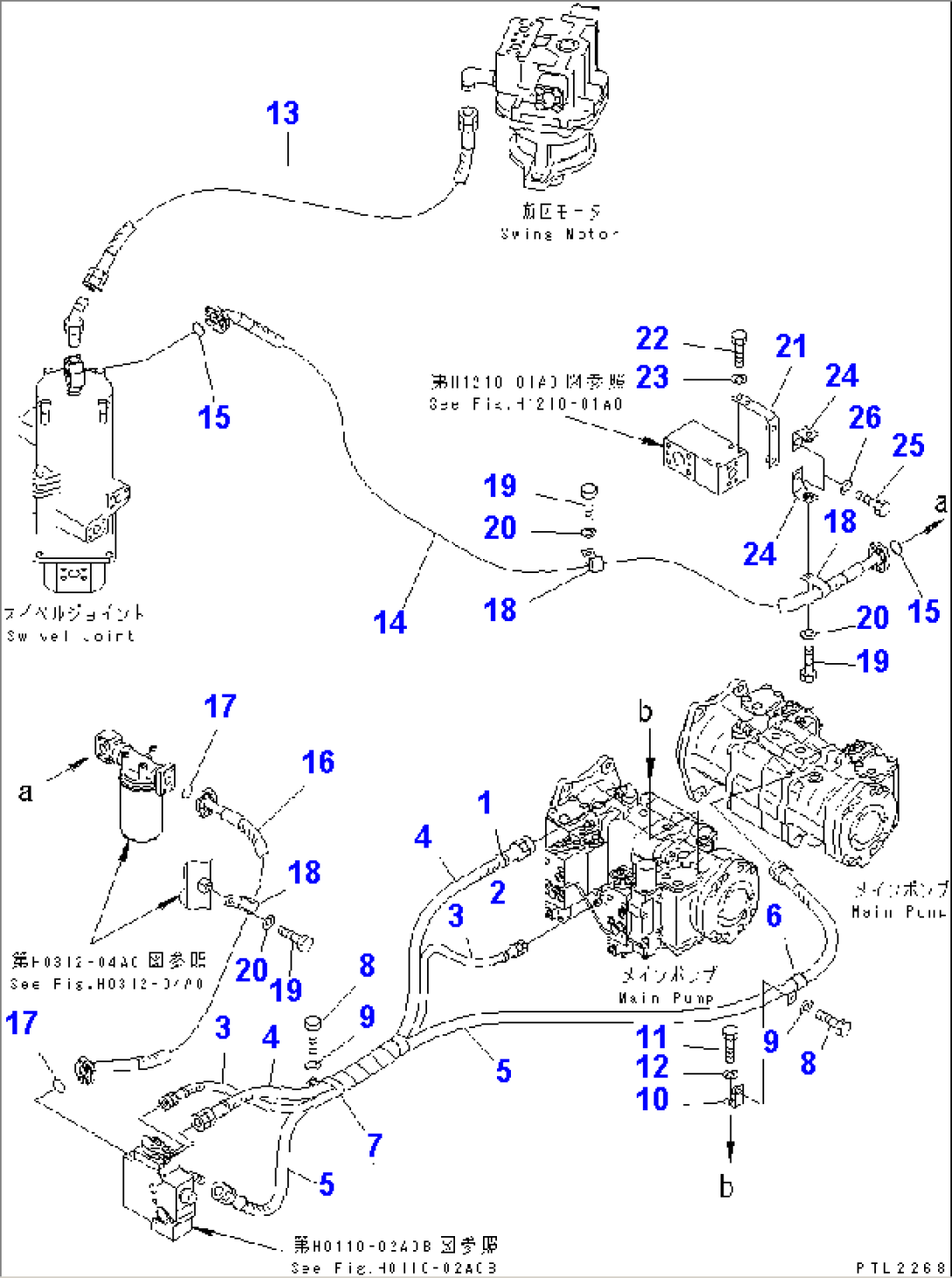

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-22790 | BAND¤ RED | 30001-@ | |
| 2 | 20Y-62-22810 | BAND¤ YELLOW | 30001-@ | |
| 3 | 07102-20310 | HOSE | 30175-30999 | |
| 4 | 07102-20613 | HOSE | 30001-30999 | |
| 5 | 07102-20617 | HOSE | 30175-30999 | |
| 6 | 04434-52712 | CLIP | 30001-30999 | |
| 7 | 156-911-4190 | CLAMP | 30001-@ | |
| 8 | 01010-81225 | BOLT | 30001-30999 | |
| 9 | 01643-31232 | WASHER | 30001-@ | |
| 10 | 22W-61-21340 | BRACKET | 30175-30999 | |
| 11 | 01010-81225 | BOLT | 30175-30999 | |
| 12 | 01643-31232 | WASHER | 30175-30999 | |
| 13 | 07102-20607 | HOSE | 30001-30999 | |
| 14 | 209-62-71980 | HOSE | 30001-30999 | |
| 15 | 07000-13032 | O-RING | 30227-30999 | |
| 07000-03032 | O-RING | 30001-30226 | ||
| 16 | 07297-01011 | HOSE | 30001-30999 | |
| 17 | 07000-13032 | O-RING | 30227-@ | |
| 07000-03032 | O-RING | 30001-30226 | ||
| 18 | 113-899-7950 | CLIP | 30001-30999 | |
| 19 | 01010-81230 | BOLT | 30001-@ | |
| 20 | 01643-31232 | WASHER | 30001-@ | |
| 21 | 21T-62-87850 | BRACKET | 30001-30999 | |
| 22 | 01010-81225 | BOLT | 30001-30999 | |
| 23 | 01643-31232 | WASHER | 30001-30999 | |
| 24 | 205-54-85340 | BRACKET | 30001-30999 | |
| 25 | 01010-81225 | BOLT | 30001-30999 | |
| 26 | 01643-31232 | WASHER | 30001-30999 |
