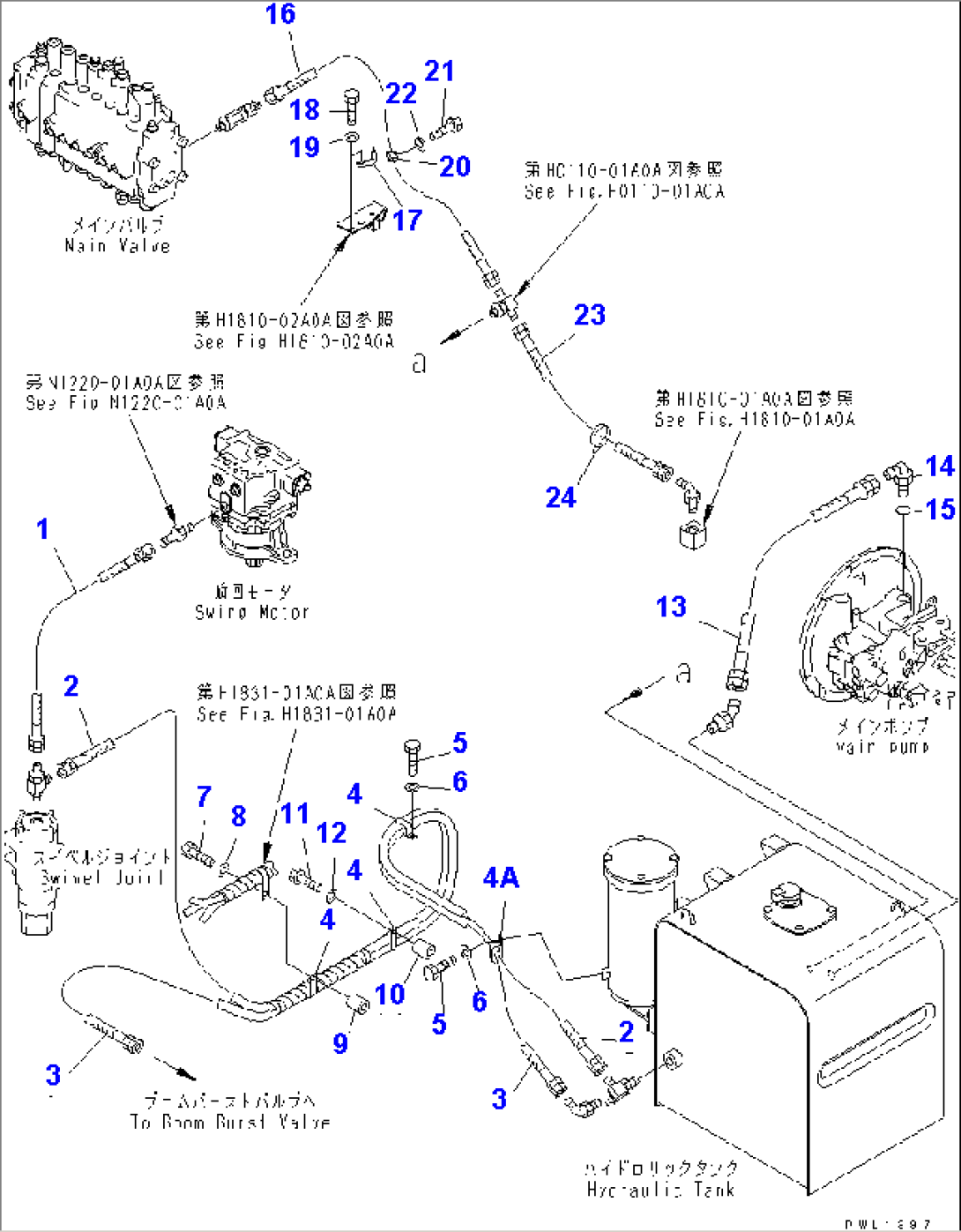

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20507 | HOSE | 12001-12283 | |
| 2 | 07102-20623 | HOSE | 12001-@ | |
| 3 | 07102-20527 | HOSE | 12001-@ | |
| 4 | 198-61-14180 | CLIP | 12001-@ | |
| 4A | 20Y-62-15891 | CLIP | 12098-@ | |
| 198-61-14180 | CLIP | 12001-12097 | ||
| 5 | 01010-81225 | BOLT | 12001-@ | |
| 6 | 01643-31232 | WASHER | 12001-@ | |
| 7 | 01010-81260 | BOLT | 12001-@ | |
| 8 | 01643-31232 | WASHER | 12001-@ | |
| 9 | 142-03-11160 | SPACER | 12001-@ | |
| 10 | 142-03-11160 | SPACER | 12001-@ | |
| 11 | 01010-81260 | BOLT | 12001-@ | |
| 12 | 01643-31232 | WASHER | 12001-@ | |
| 13 | 207-62-61710 | HOSE | 12001-@ | |
| 14 | 07235-11034 | ELBOW | 12001-@ | |
| 15 | 07002-13334 | O-RING | 12001-@ | |
| 16 | 07102-20306 | HOSE | 12001-@ | |
| 17 | 17M-49-15260 | BRACKET | 12001-@ | |
| 18 | 01010-81235 | BOLT | 12001-@ | |
| 19 | 01643-31232 | WASHER | 12001-@ | |
| 20 | 04434-51812 | CLIP | 12001-@ | |
| 21 | 01010-81225 | BOLT | 12001-@ | |
| 22 | 01643-31232 | WASHER | 12001-@ | |
| 23 | 07102-20304 | HOSE | 12001-@ | |
| 24 | 08034-00536 | BAND | 12001-@ |
