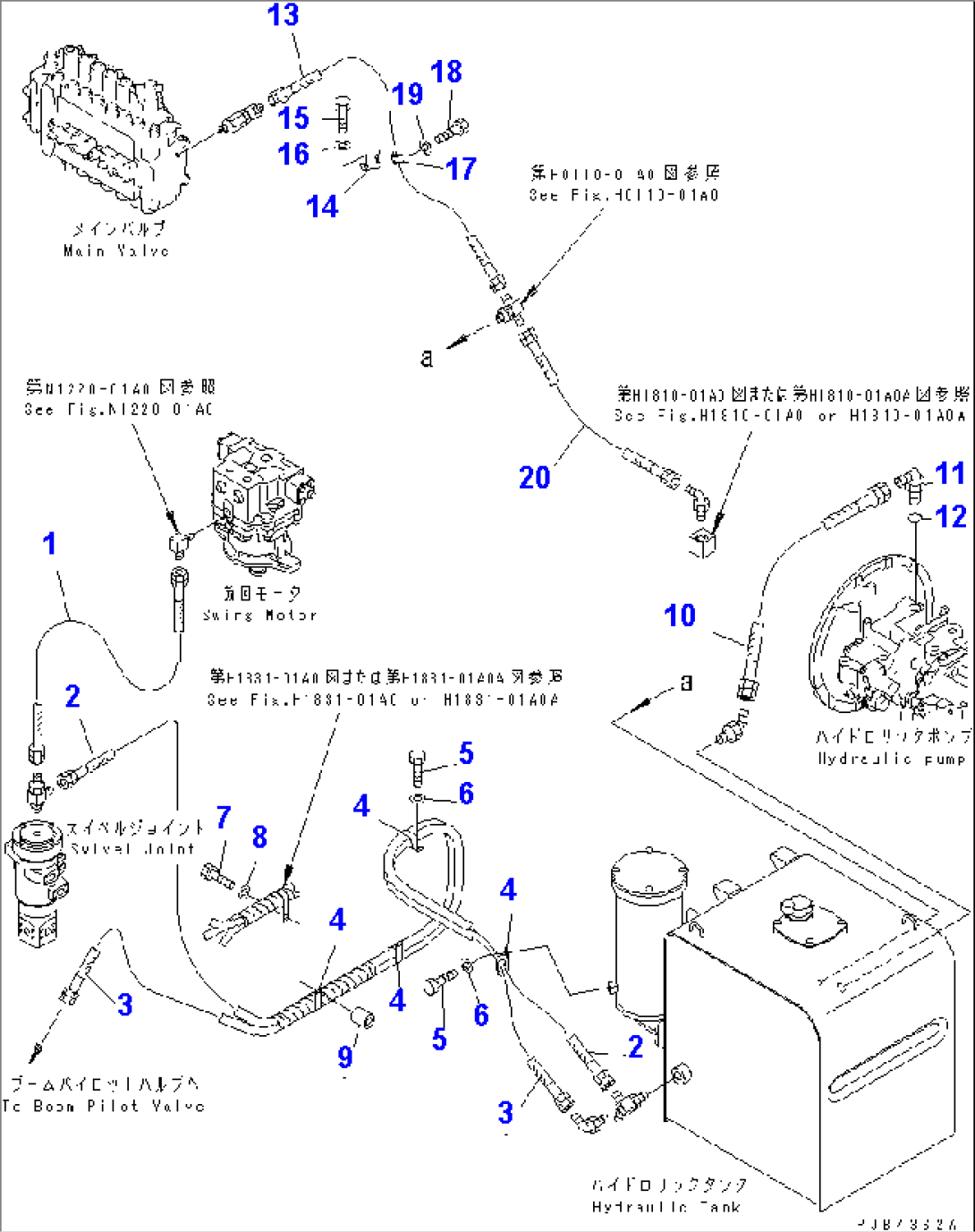

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20507 | HOSE | K30001- | |
| 207-62-62821 | HOSE ASS'Y,A | K30001- | ||
| 2 | 07102-20623 | HOSE | K30001- | |
| 3 | 07102-20527 | HOSE | K30001- | |
| 4 | 198-61-14180 | CLIP | K30001- | |
| 5 | 01010-51225 | BOLT | K30001- | |
| 6 | 01643-31232 | WASHER | K30001- | |
| 7 | 01010-81260 | BOLT | K30001- | |
| 8 | 01643-31232 | WASHER | K30001- | |
| 9 | 20Y-03-11220 | COLLAR | K30001- | |
| 10 | 207-62-61710 | HOSE | K30001- | |
| 11 | 07235-11034 | ELBOW | K30001- | |
| 12 | 07002-03334 | O-RING | K30001- | |
| 13 | 07102-20309 | HOSE | K32001- | |
| 207-62-K2320 | HOSE | K30001-K31999 | ||
| 14 | 17M-49-15260 | BRACKET | K30001- | |
| 15 | 01010-81235 | BOLT | K30001- | |
| 16 | 01643-31232 | WASHER | K30001- | |
| 17 | 04434-51812 | CLIP | K30001- | |
| 18 | 01010-81225 | BOLT | K30001- | |
| 19 | 01643-31232 | WASHER | K30001- | |
| 20 | 207-62-K2310 | HOSE | K30001- |
