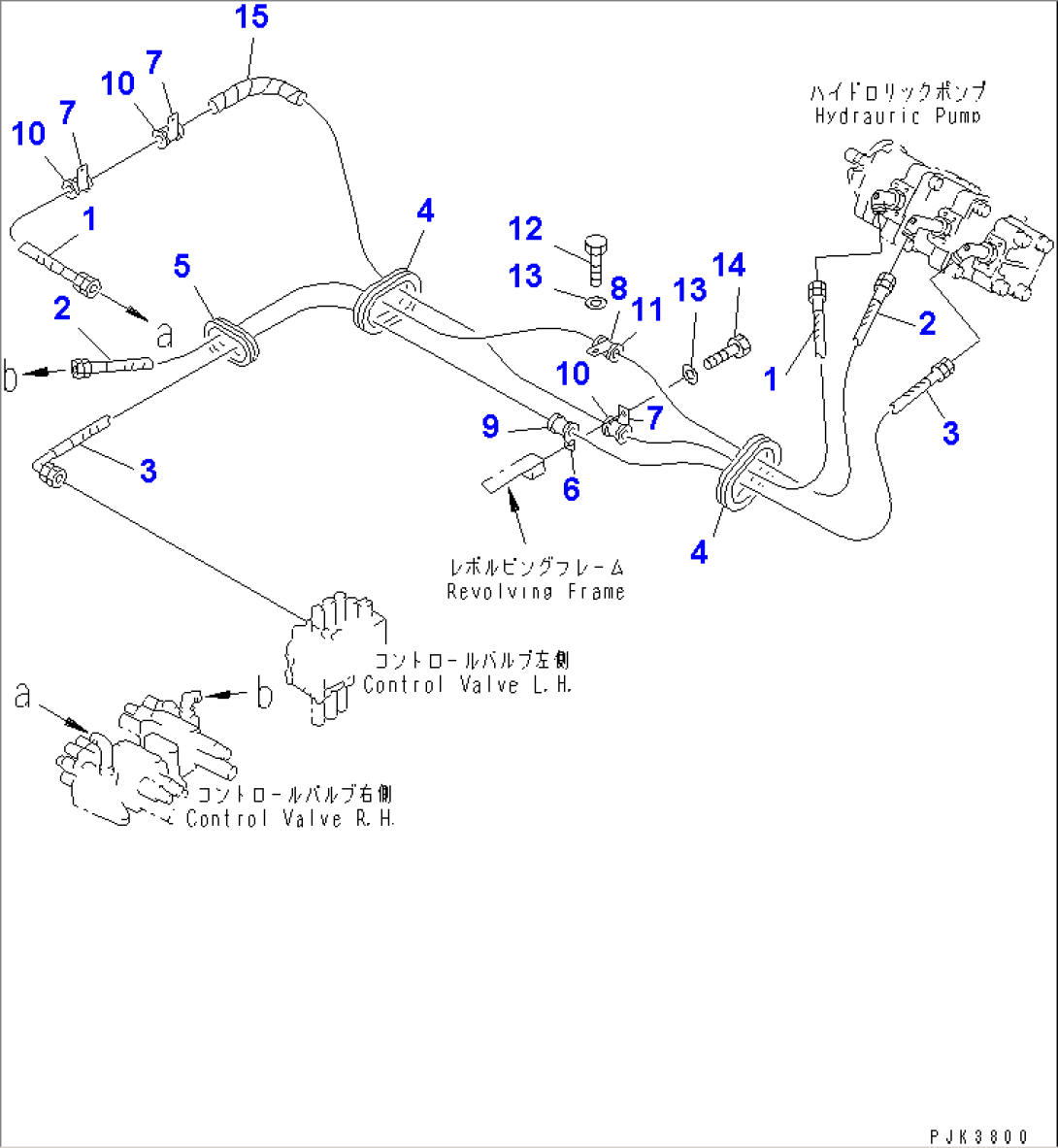

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-62-22541 | HOSE | 8001-12771 | |
| 2 | 20U-62-22551 | HOSE | 8001-12771 | |
| 3 | 20U-62-22561 | HOSE | 8001-12771 | |
| 4 | 20U-62-22570 | GROMMET | 8001-12771 | |
| 5 | 21W-62-22180 | GROMMET | 8001-12771 | |
| 6 | 04434-52711 | CLIP | 8001-12771 | |
| 7 | 04434-52711 | CLIP | 8001-12771 | |
| 8 | 04434-52711 | CLIP | 8001-12771 | |
| 9 | 07095-20420 | CUSHION | 8001-12771 | |
| 10 | 07095-20420 | CUSHION | 8001-12771 | |
| 11 | 07095-20420 | CUSHION | 8001-12771 | |
| 12 | 01010-51020 | BOLT | 8001-12771 | |
| 13 | 01643-31032 | WASHER | 8001-12771 | |
| 14 | 01010-51025 | BOLT | 8001-12771 | |
| 15 | 203-62-32440 | COVER | 8001-12771 |
